Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Inoperative - One or More Modes (Front Wipers)

Wipers Inoperative - One or More Modes (Front Wipers)

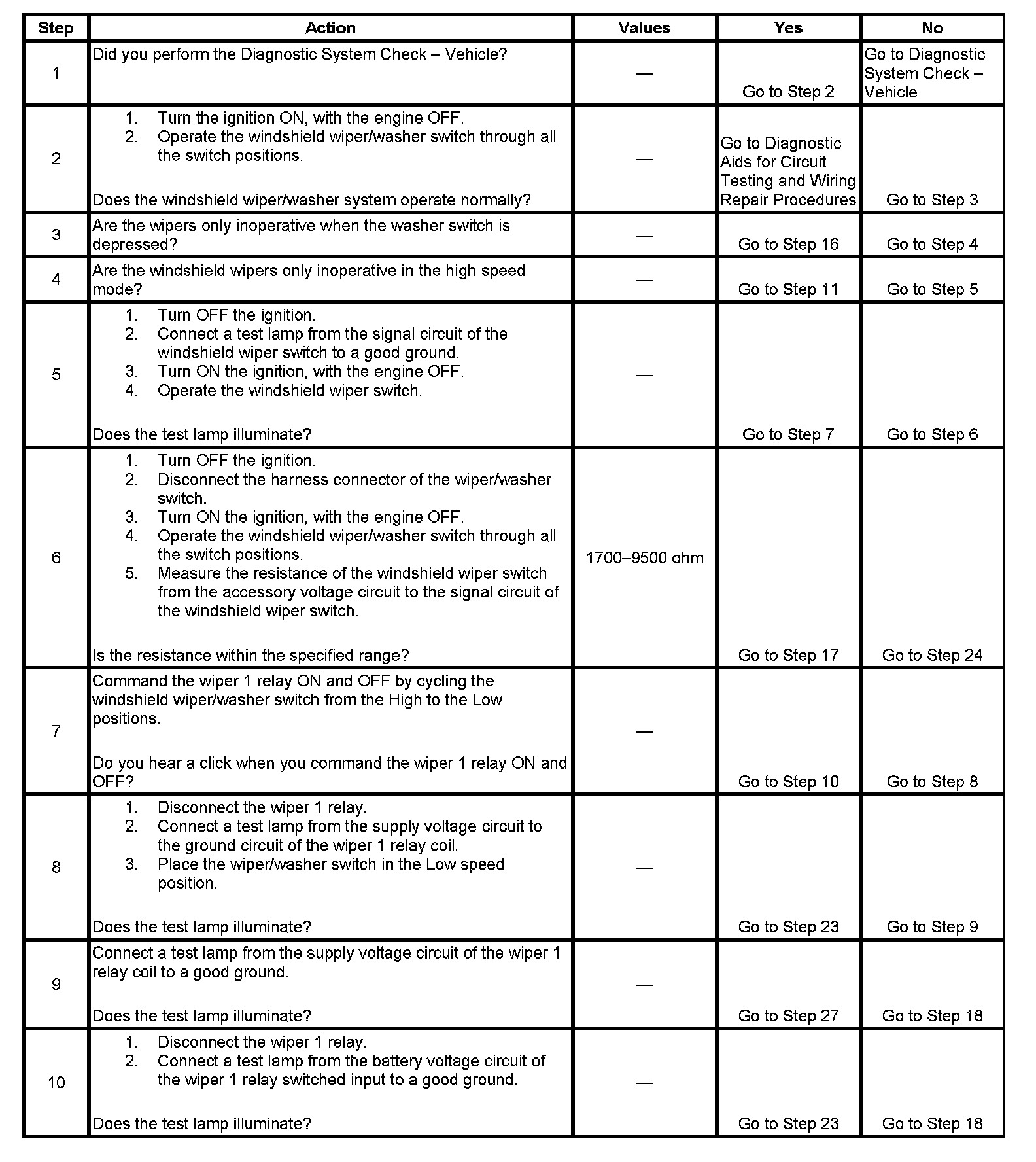

Step 1 - Step 10:

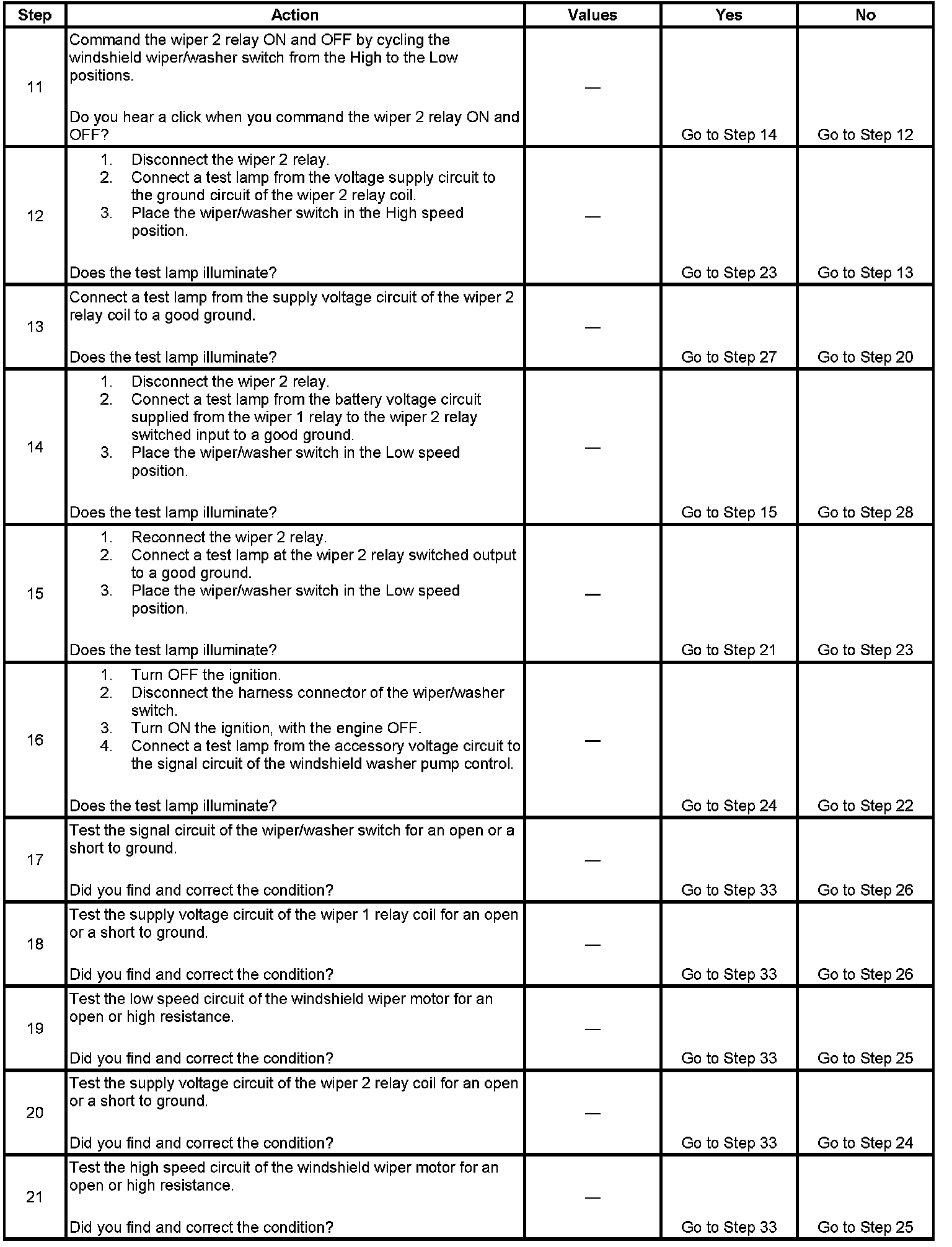

Step 11 - Step 21:

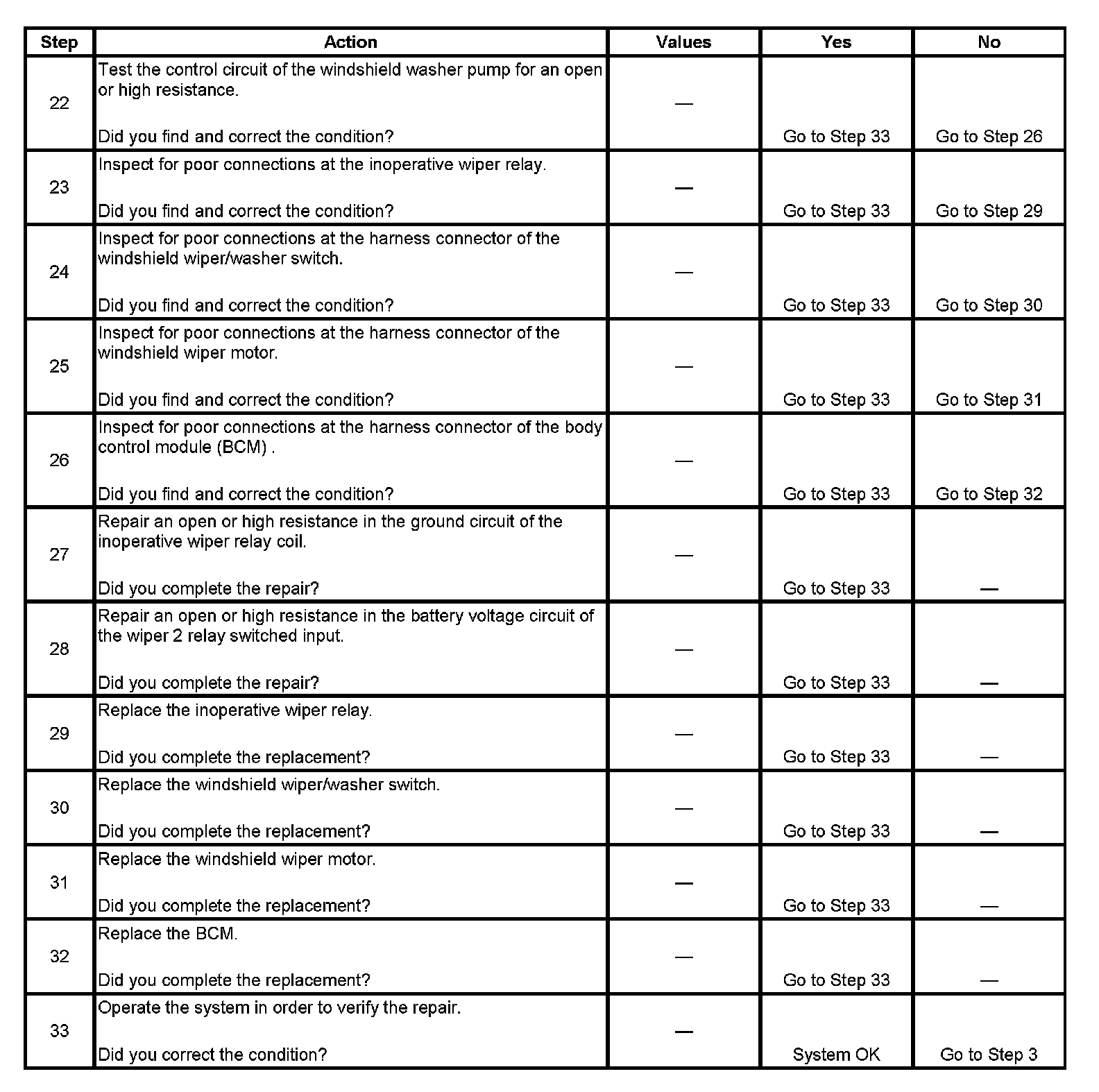

Step 22 - Step 33:
