Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Inoperative - All Modes

Wipers Inoperative - All Modes

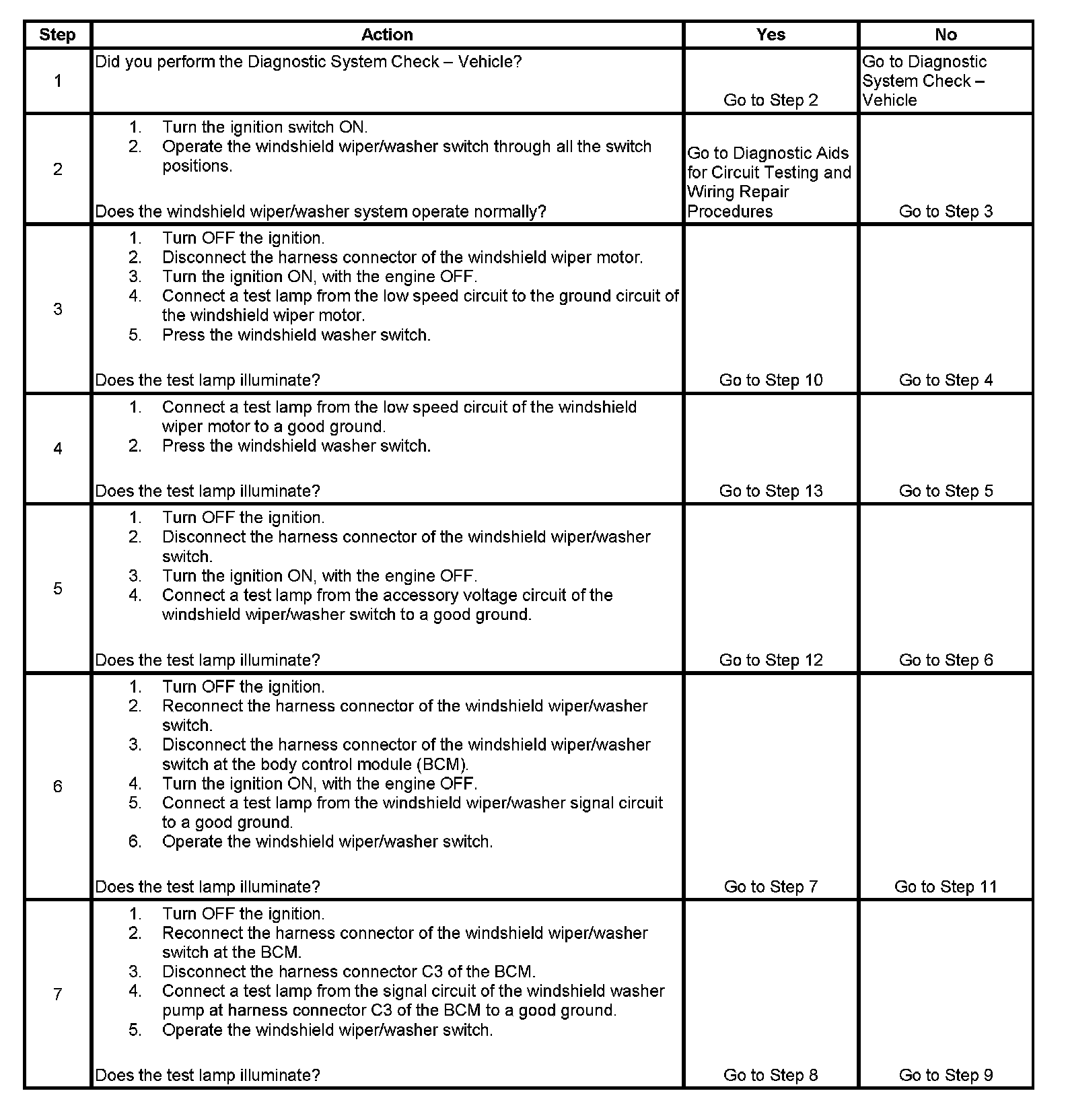

Step 1 - Step 7:

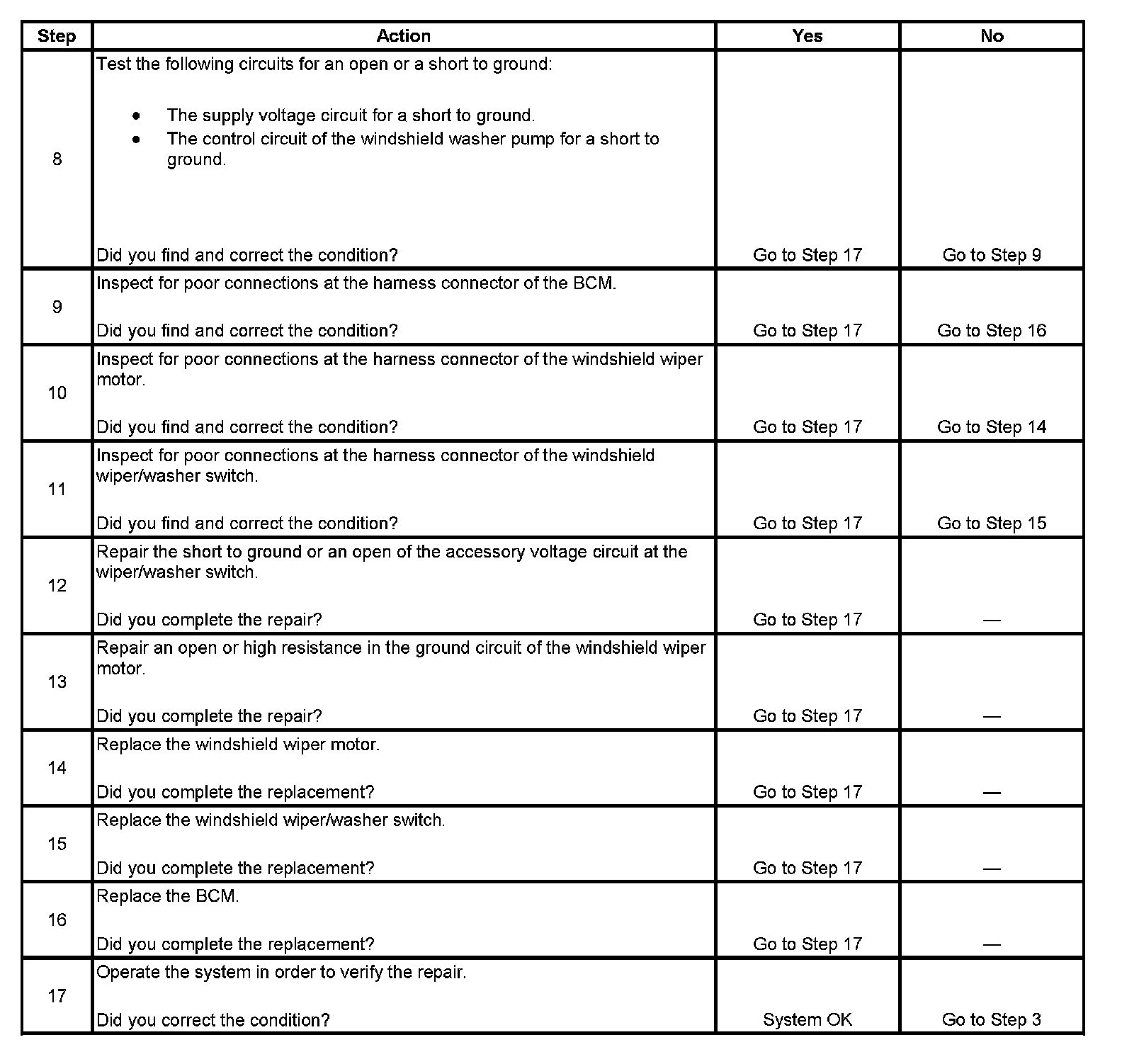

Step 8 - Step 17:
