Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Washers Inoperative

Washers Inoperative

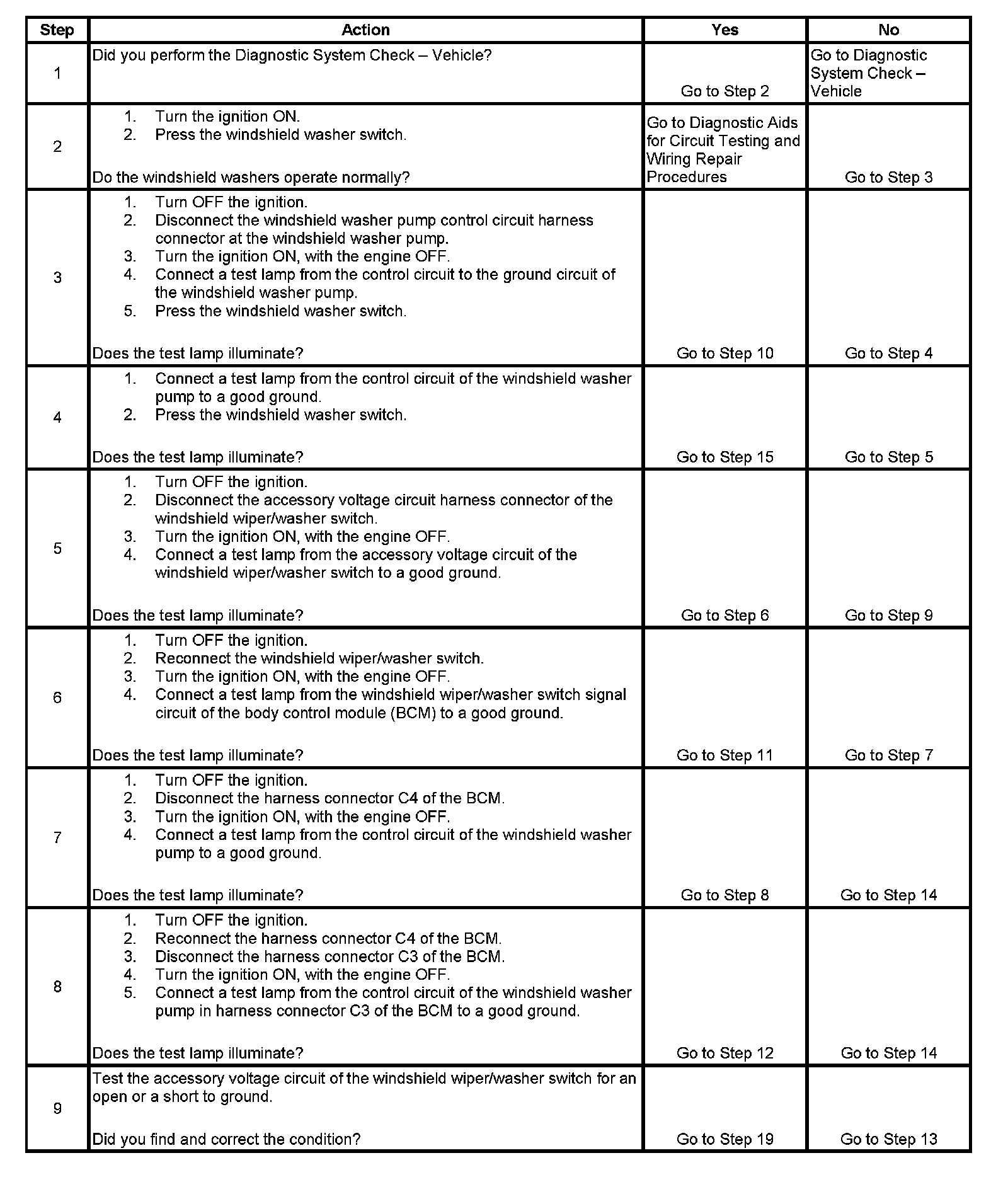

Step 1 - Step 9:

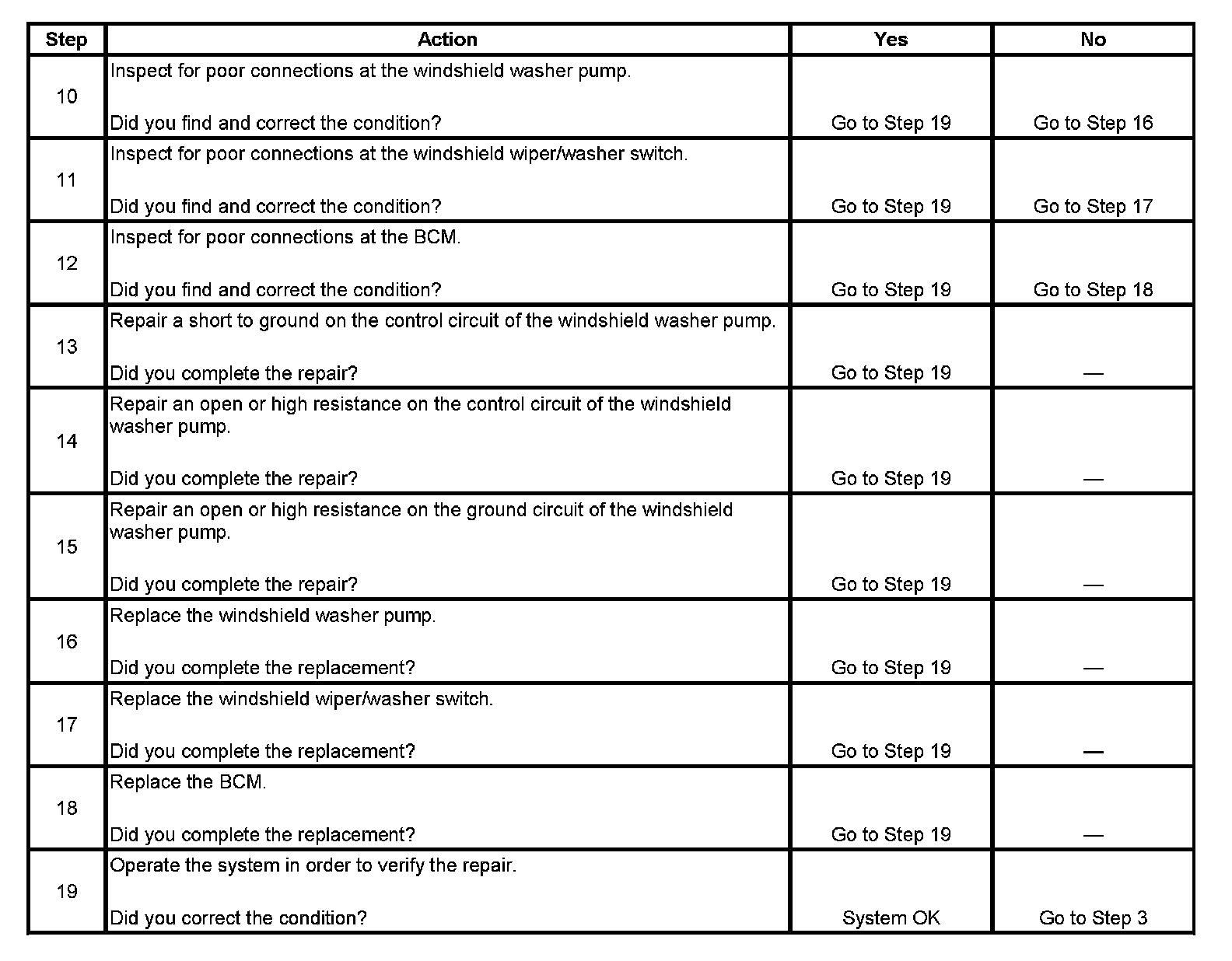

Step 10 - Step 19:
