Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Wiper and Washer Systems >> Locations

Wiper and Washer Systems: Locations

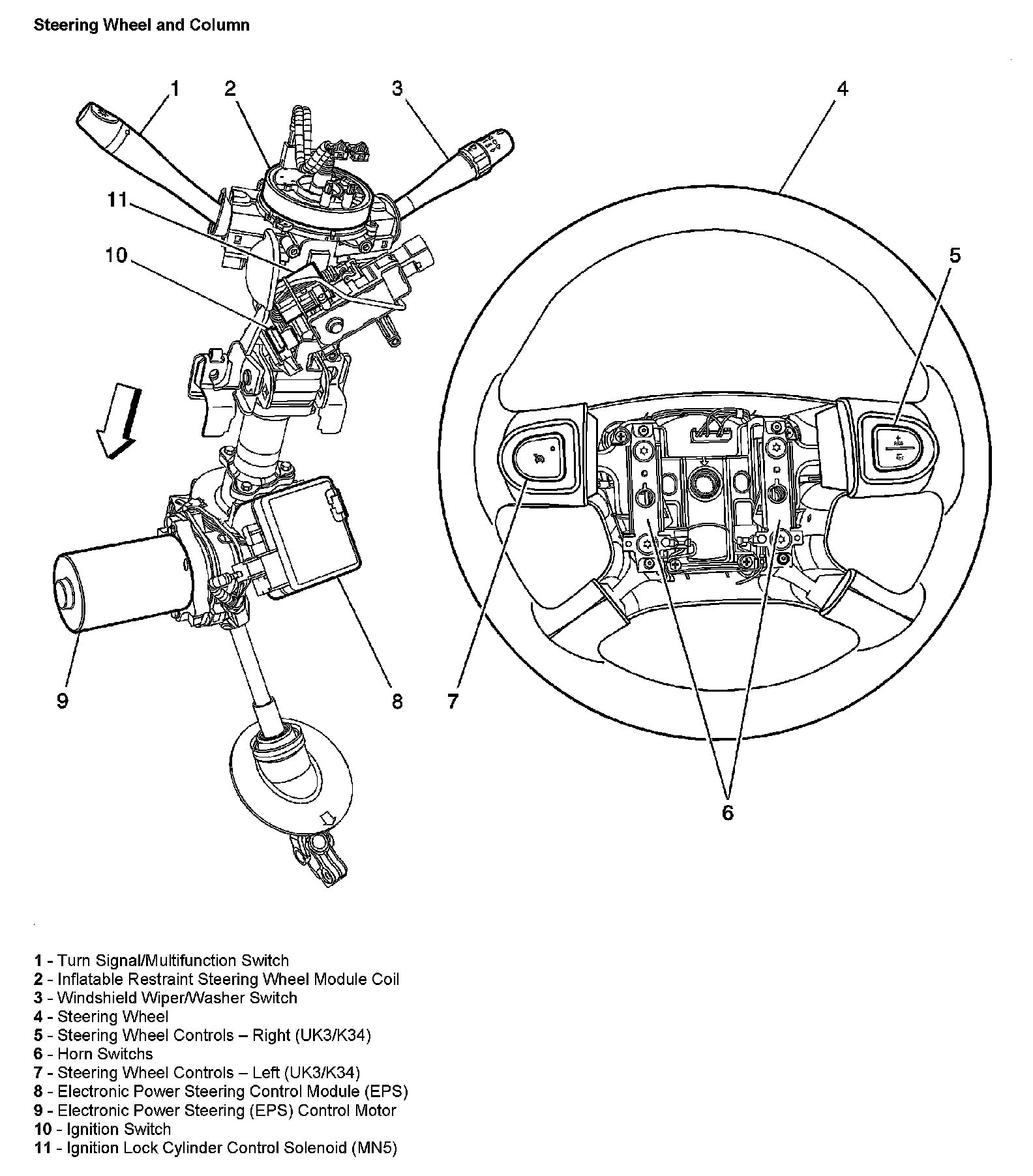

Steering Wheel And Column:

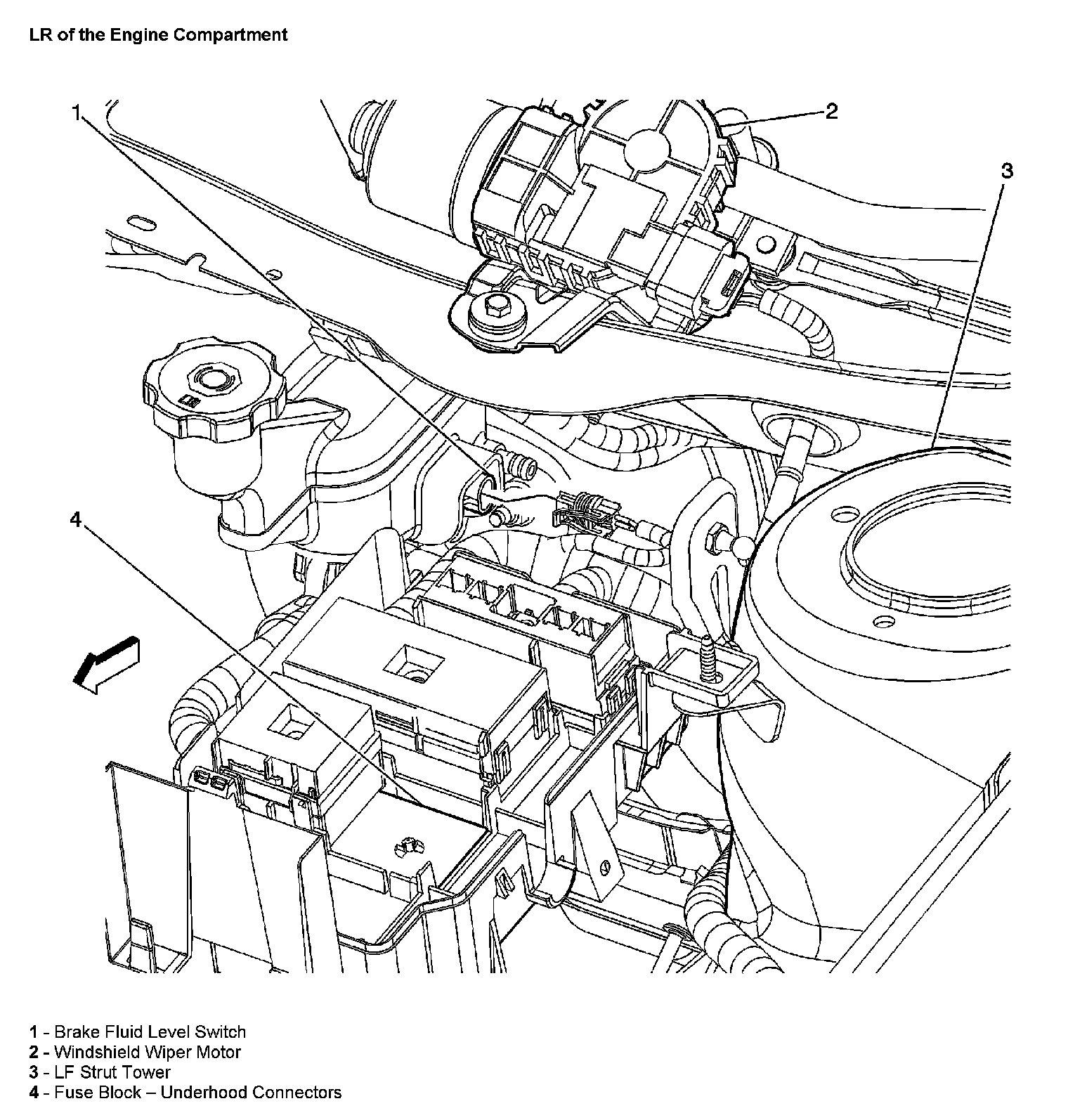

LR Of The Engine Compartment:

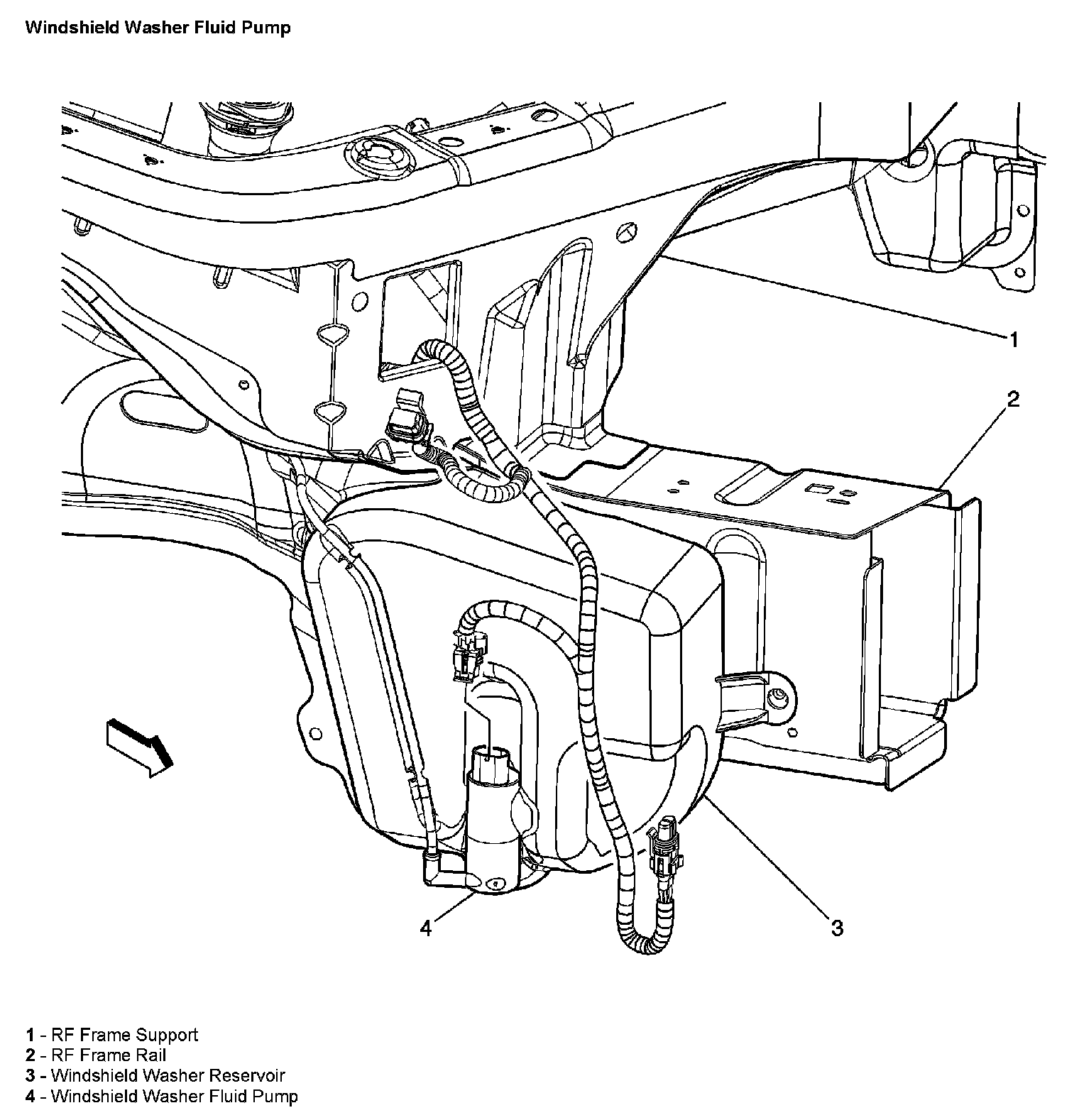

Windshield Washer Fluid Pump:
