Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Locations >> Driver Door Components

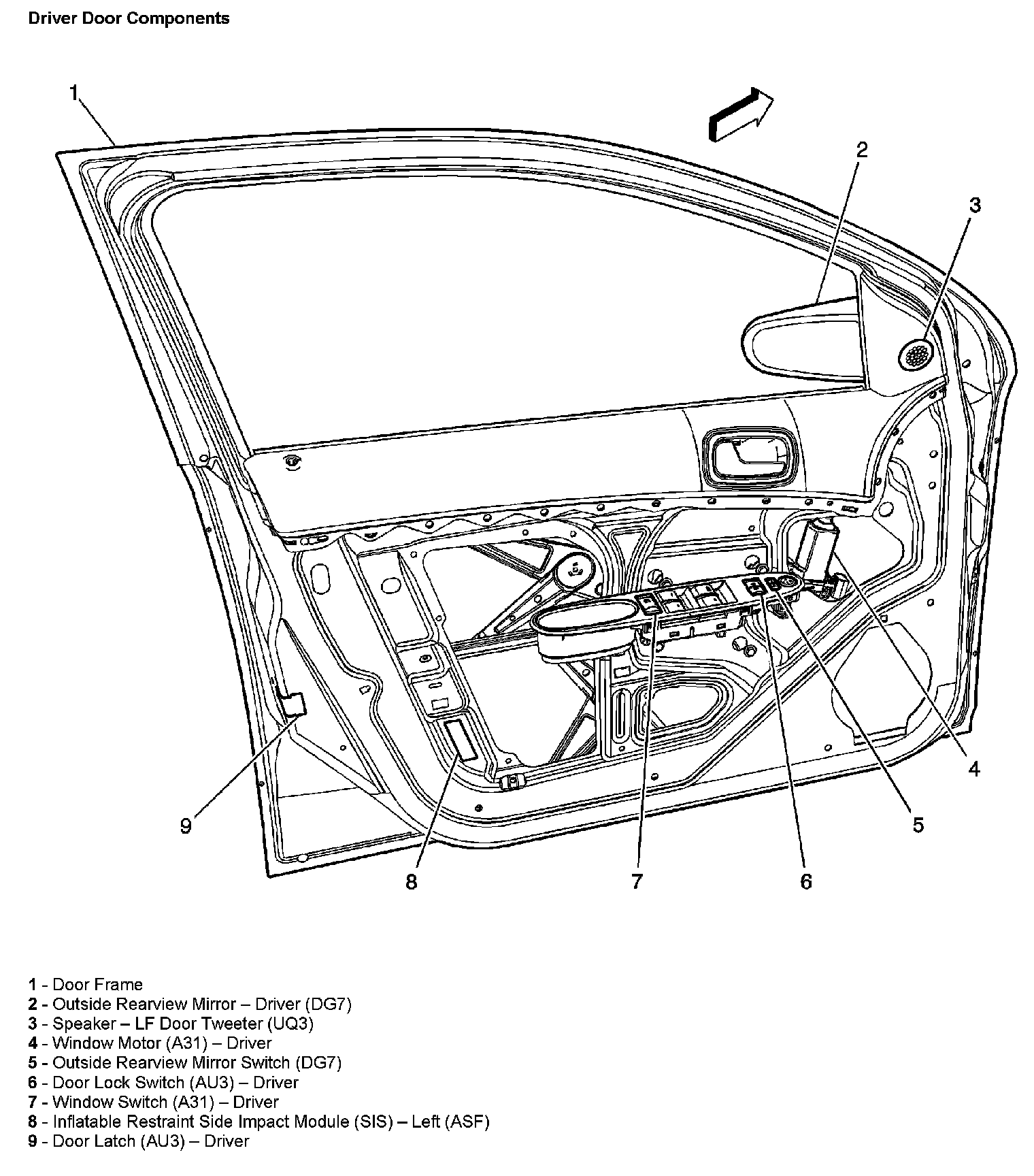

Driver Door Components

Driver Door Components:
