Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Output Controls

Scan Tool Output Controls



Scan Tool Output Controls

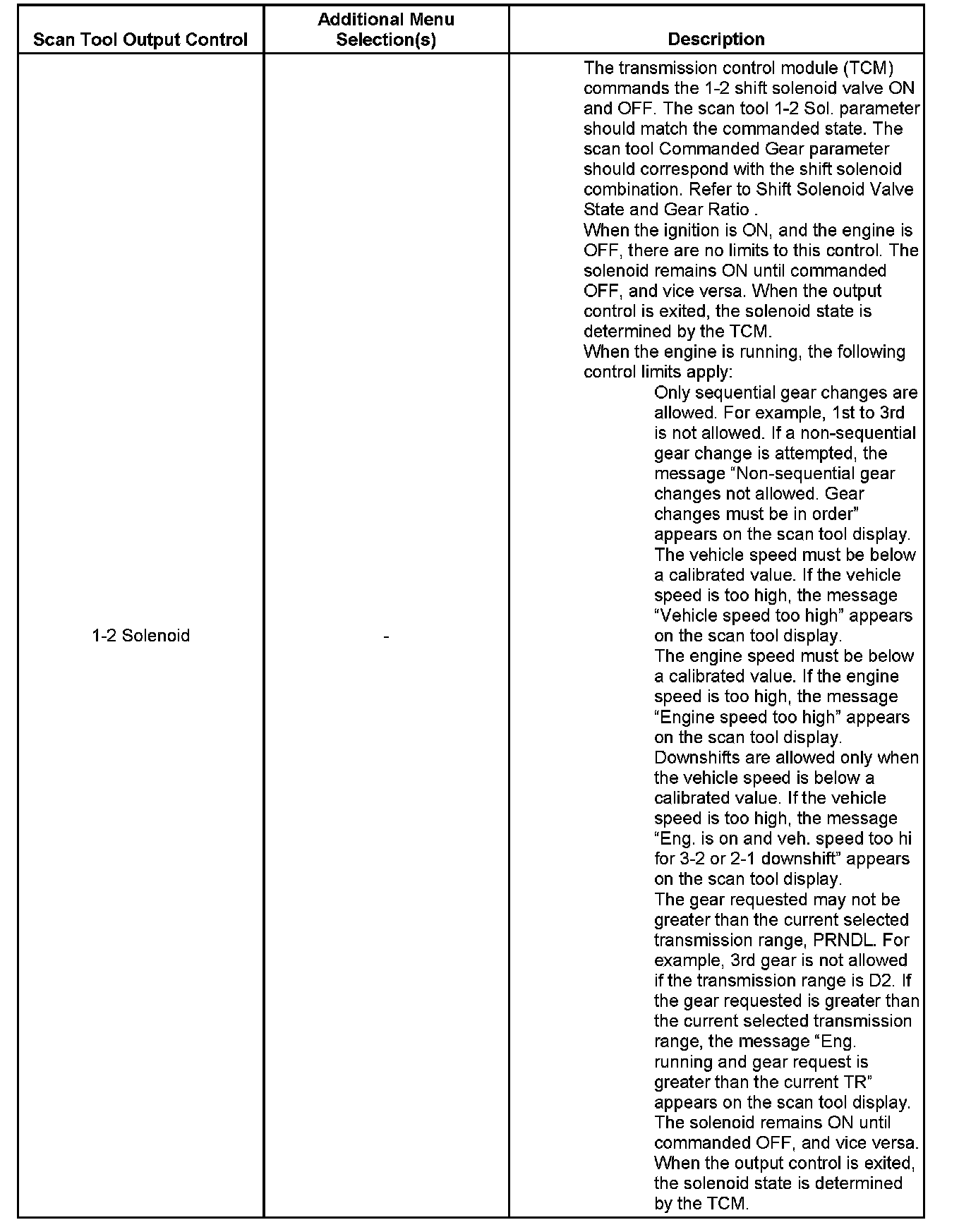

Scan Tool Output Controls 1:

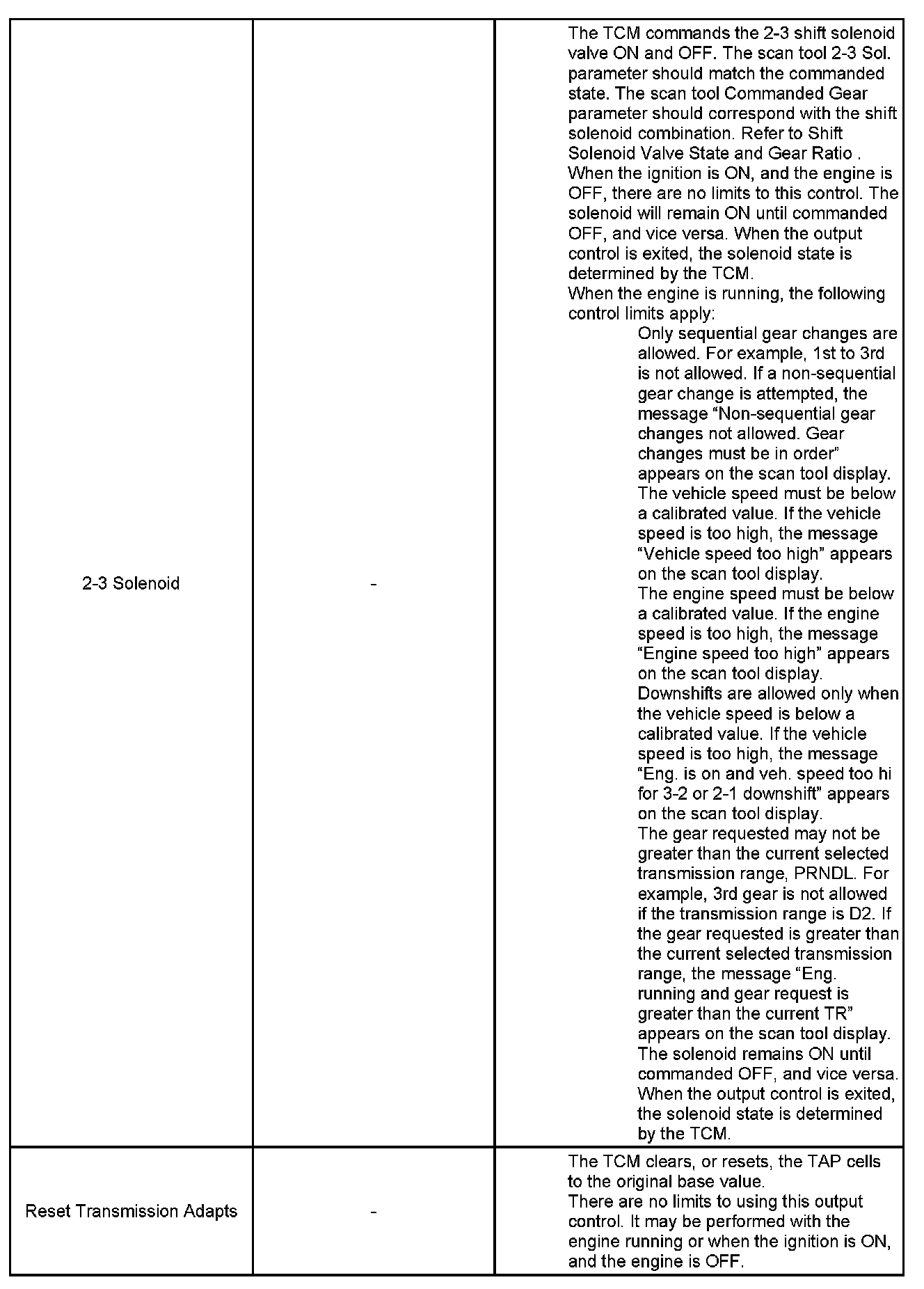

Scan Tool Output Controls 2:
