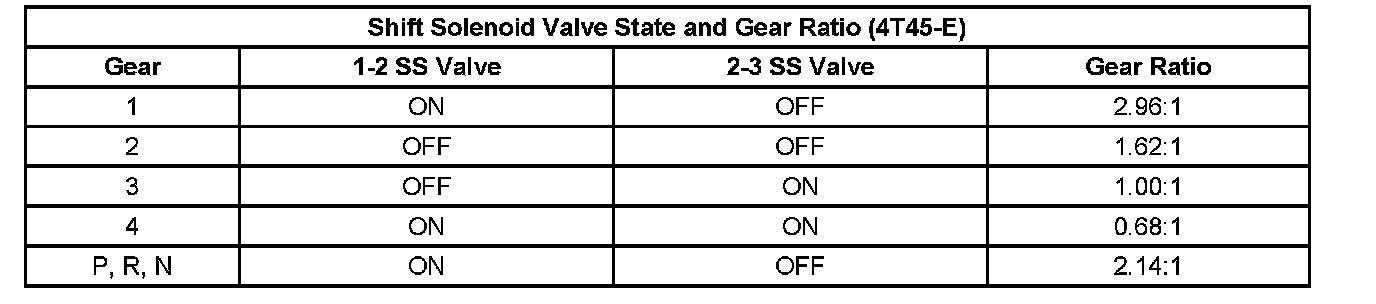

Shift Solenoid Valve State and Gear Ratio



Shift Solenoid Valve State and Gear Ratio

Shift Solenoid Valve State and Gear Ratio:
