Shifter A/T: Service and Repair

Floor Shift Control Knob Replacement

Removal Procedure

Important: Place the shift control in NEUTRAL before attempting to remove the shift knob screw.

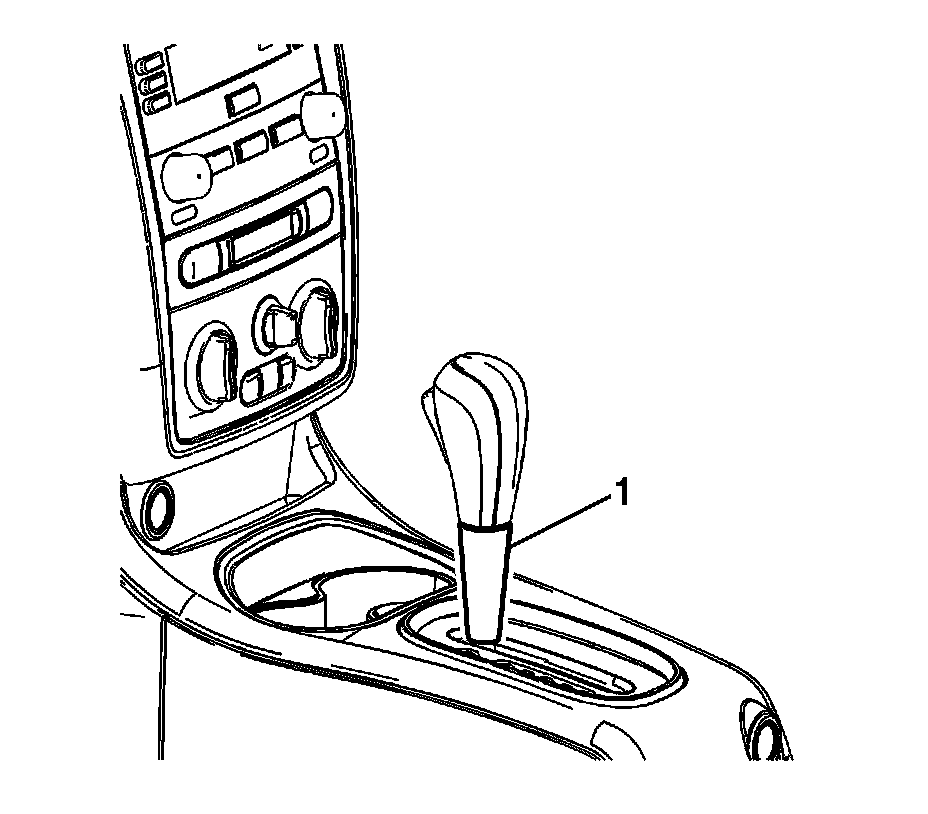

1. Pull the shift knob bezel (1) down to expose the shift knob retaining screw.

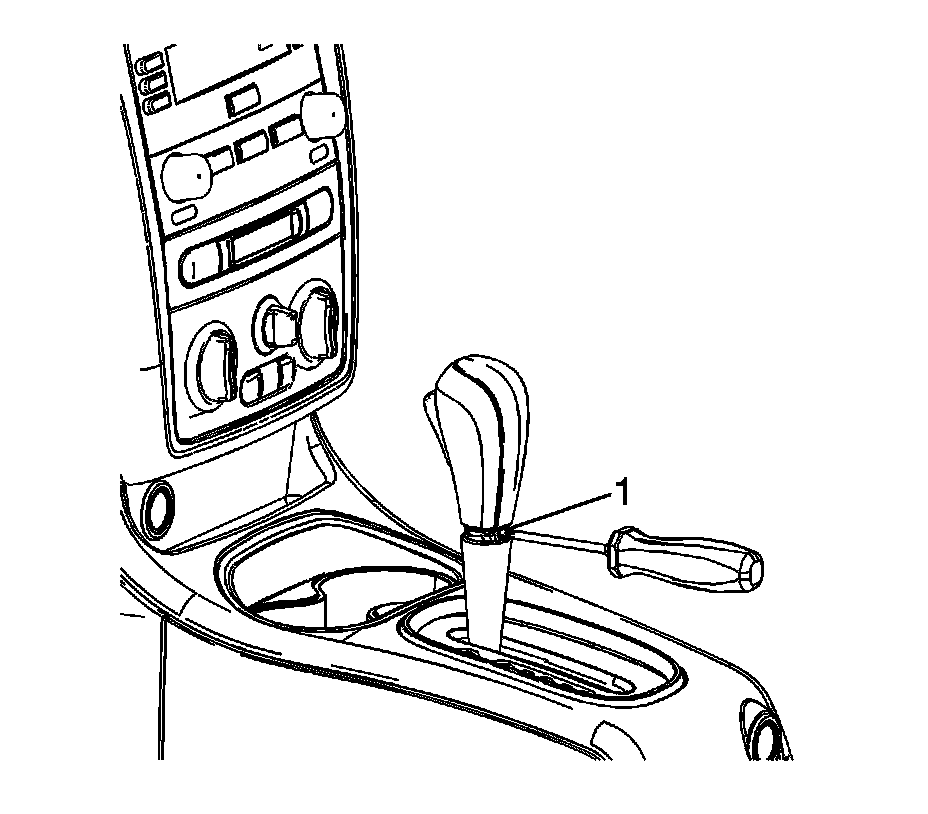

2. Remove the shift knob retaining screw (1).

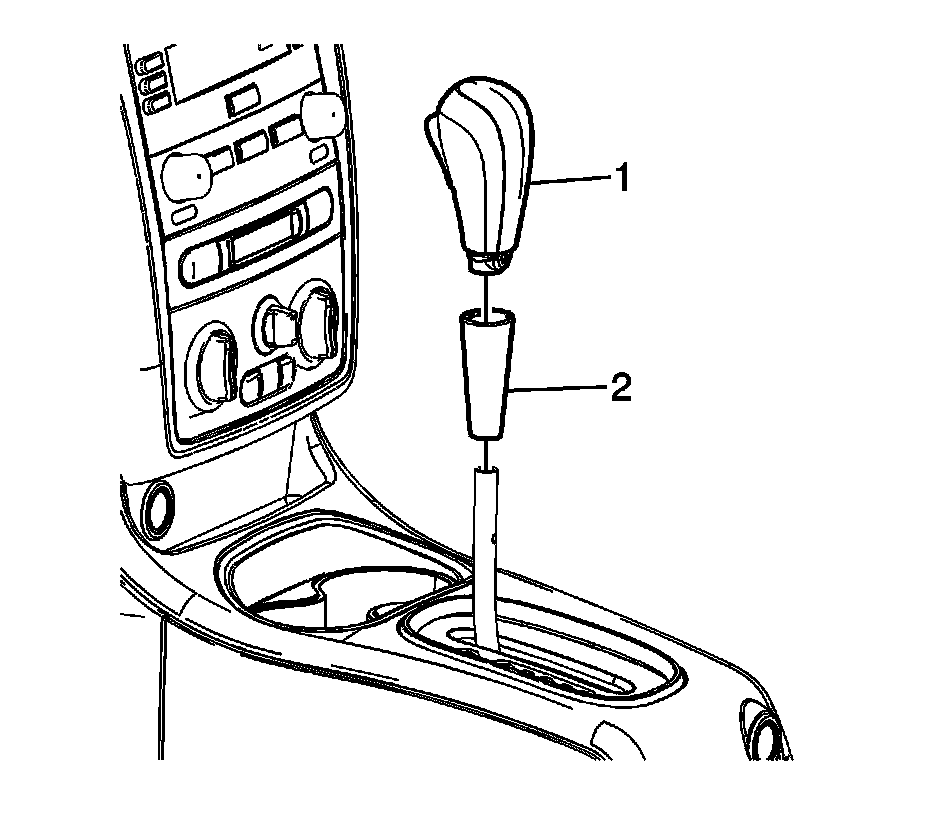

3. Remove the shift knob (1) and bezel (2) from the shift control lever.

Installation Procedure




1. Install the bezel (2) and shift knob (1) to the shift control lever.

Notice: Refer to Fastener Notice.




2. Install the shift knob retaining screw (1).

Tighten the screw to 2 N.m (18 lb in).




3. Secure the shift knob bezel (1) to the shift knob.
