Shift Lever Does Not Move With Brake Pedal Depressed
Shift Lever Does Not Move With Brake Pedal Depressed
Shift Lever Does Not Move with Brake Pedal Depressed

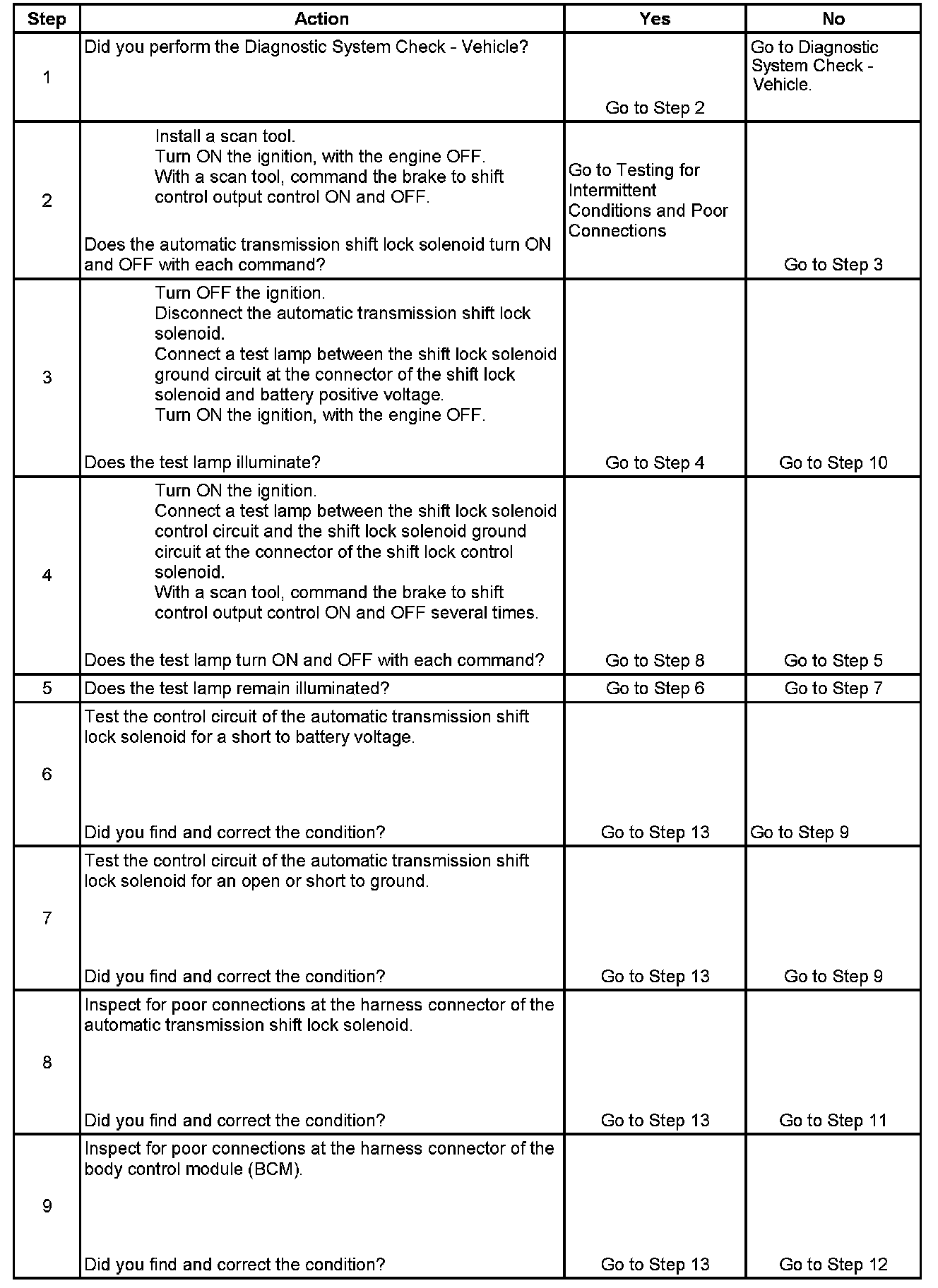

Step 1 - Step 9:

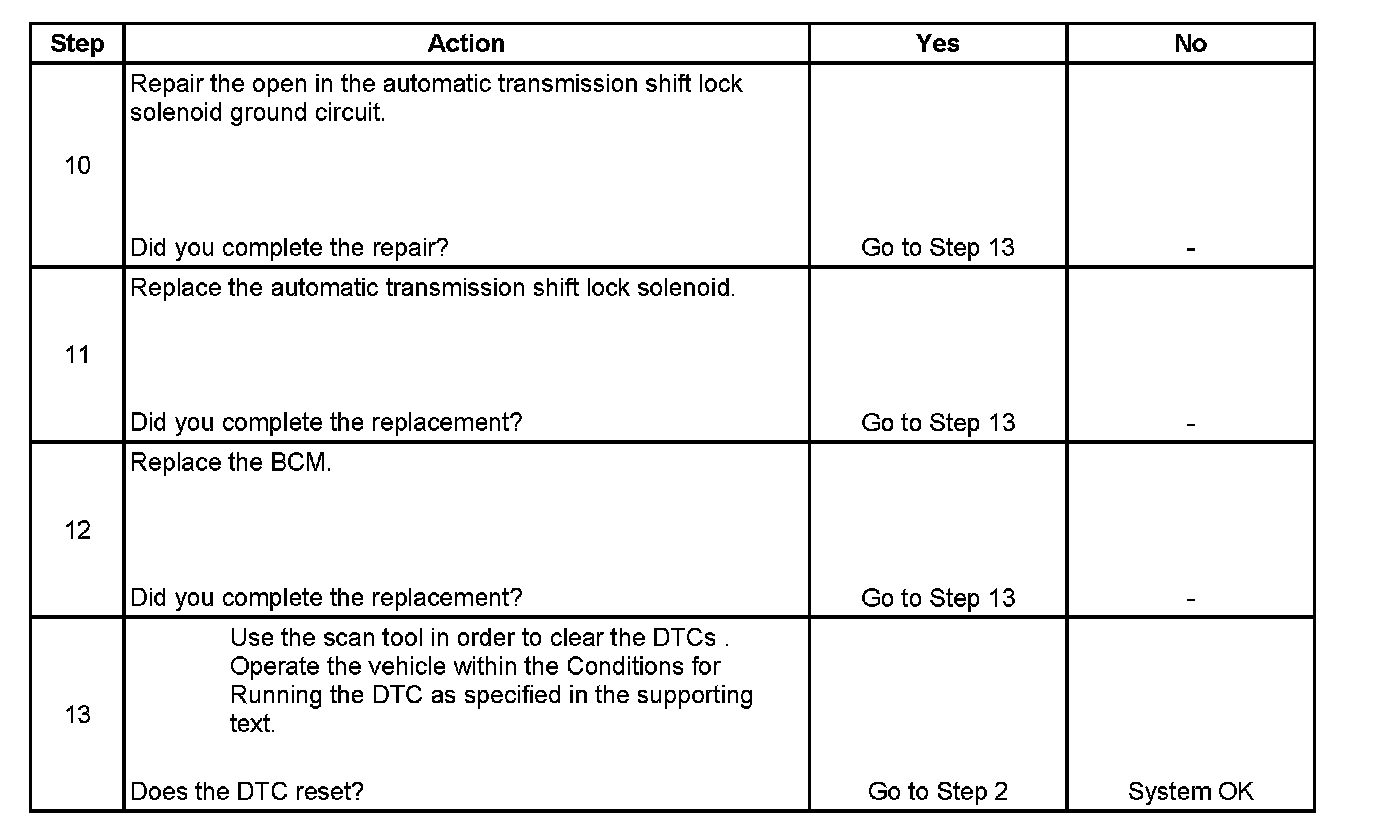

Step 10 - Step 13:
