Shift Lever Can Be Moved without Brake Pedal Depressed



Shift Lever Can Be Moved without Brake Pedal Depressed

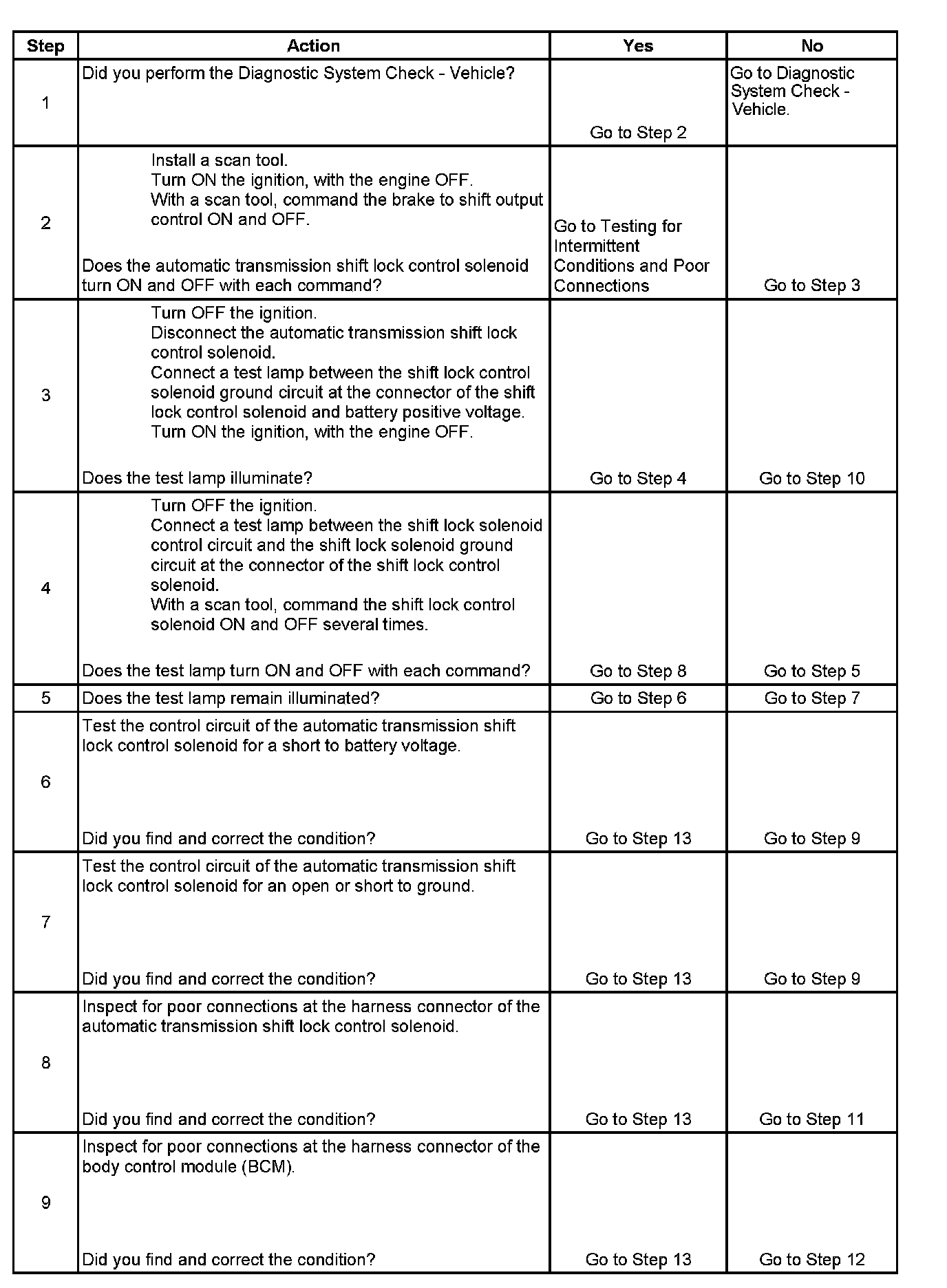

Step 1 - Step 9:

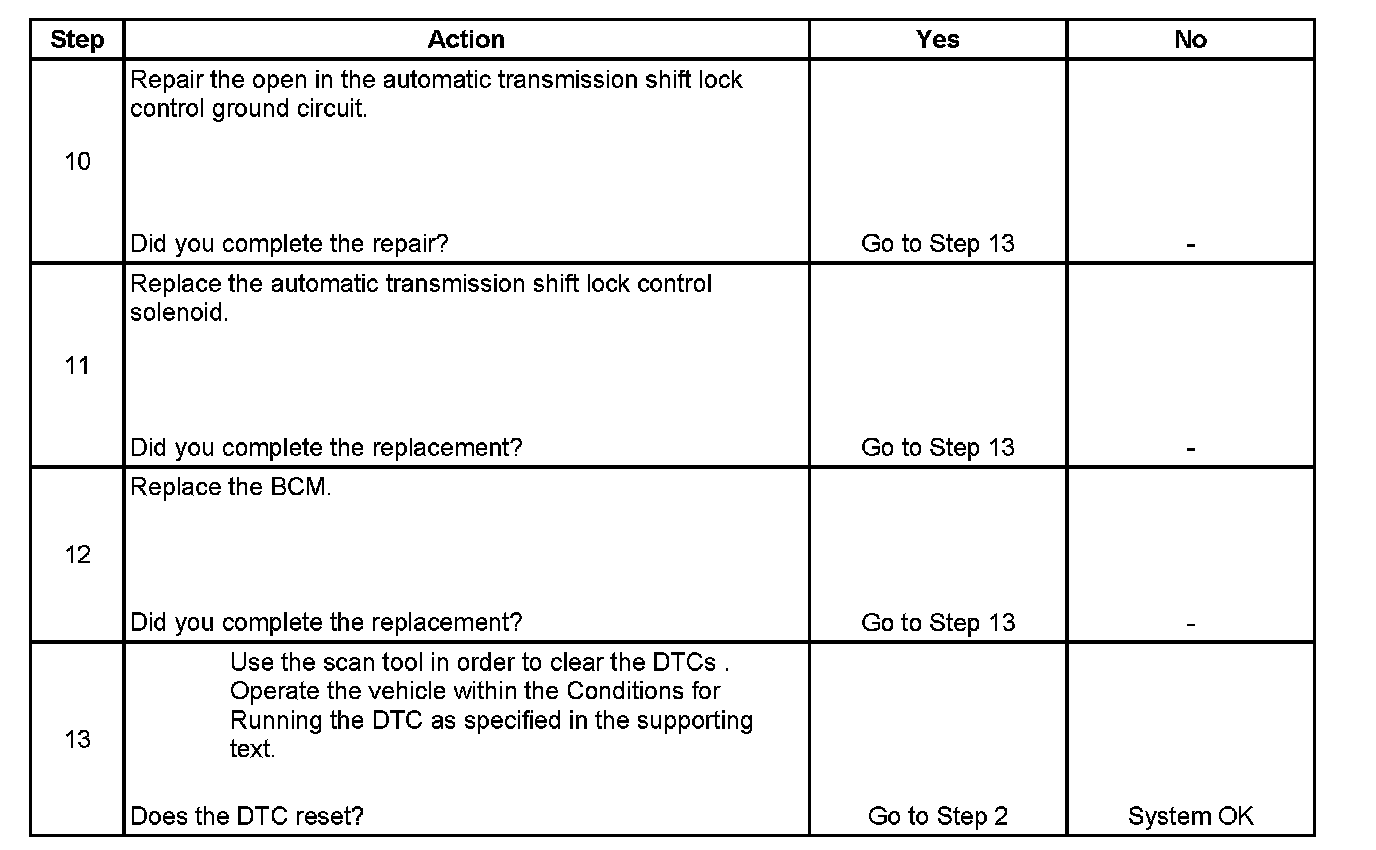

Step 10 - Step 13:
