31. Forward Clutch and Low/Reverse Band Removal

Forward Clutch and Low/Reverse Band Removal

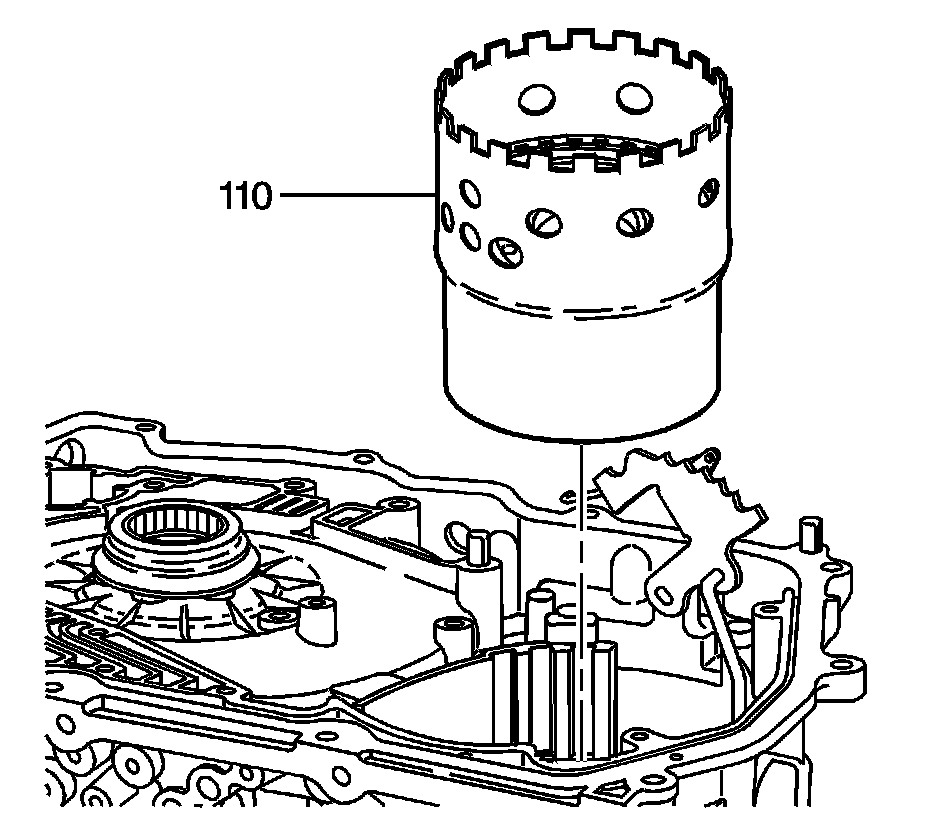

1. Remove the forward clutch assembly (110).

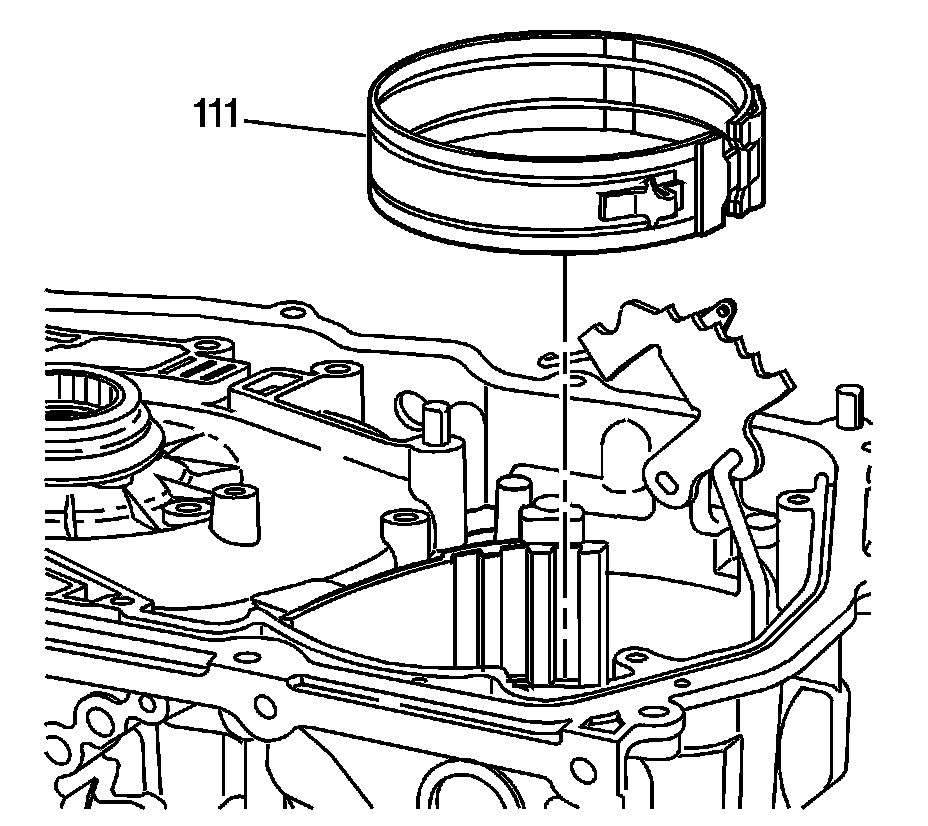

2. Remove the low/reverse band (111).
