Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Testing and Inspection >> Retained Accessory Power (RAP) Inoperative

Retained Accessory Power (RAP) Inoperative

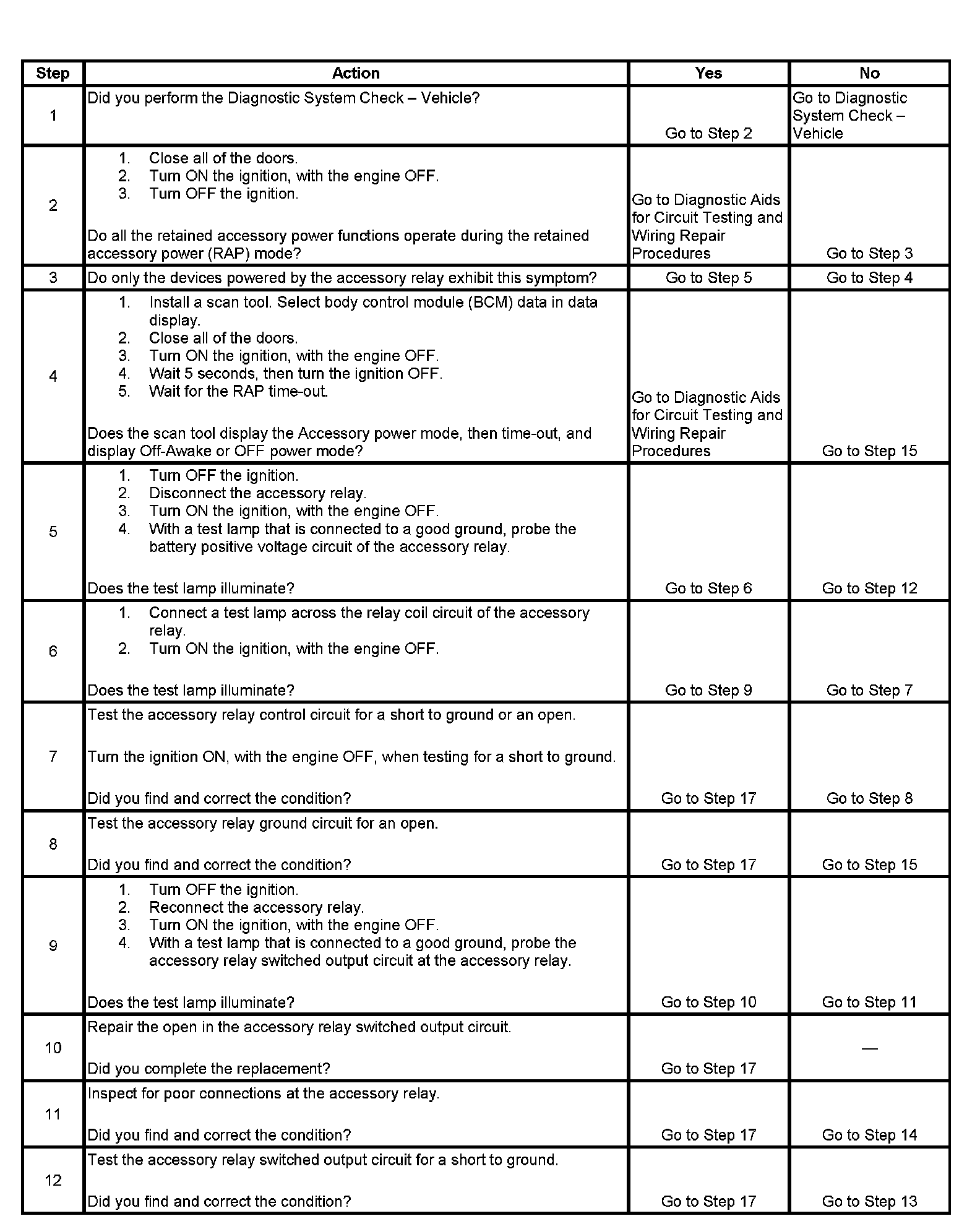

Step 1 - Step 12:

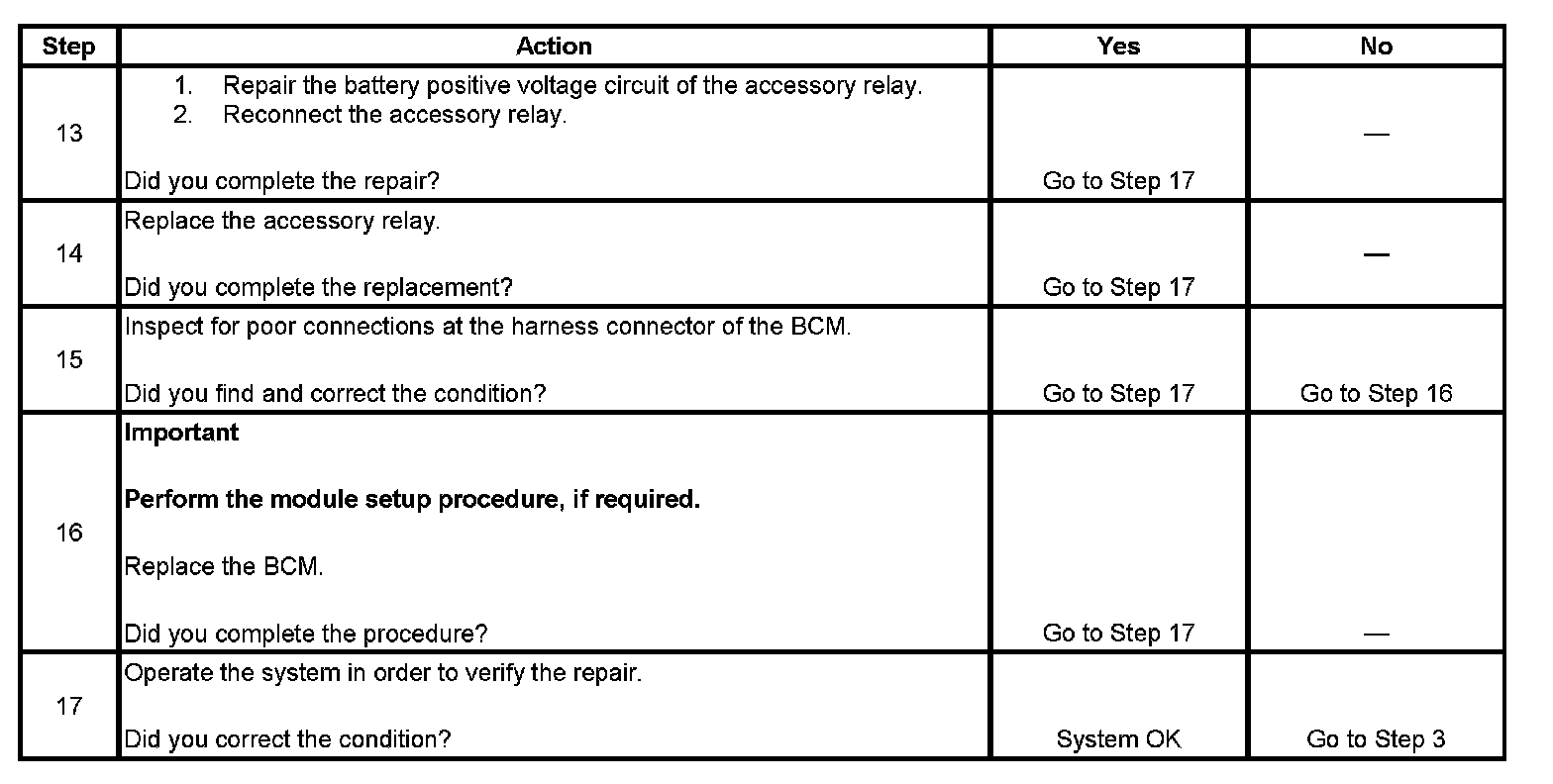

Step 13 - Step 17:
