Transmission Clearance Specifications
Transmission Clearance Specifications
Transmission Clearance Specifications

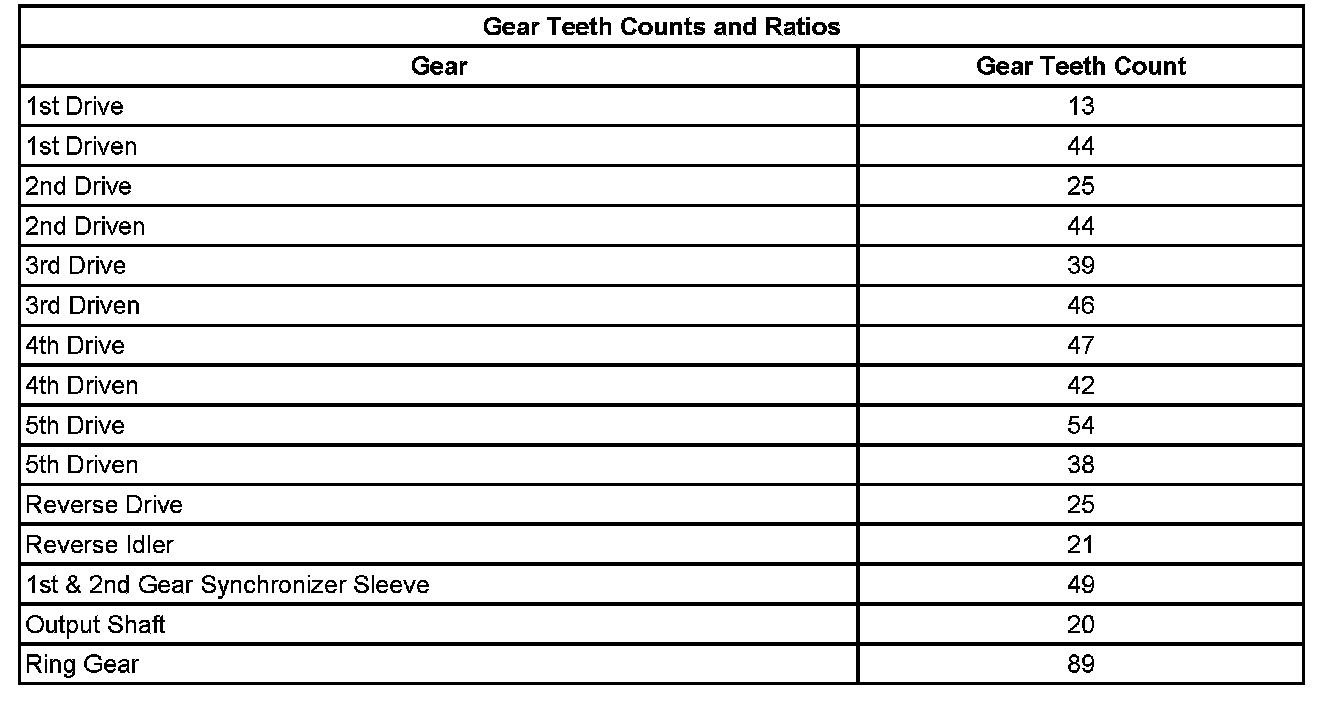

Gear Teeth Counts And Ratios:

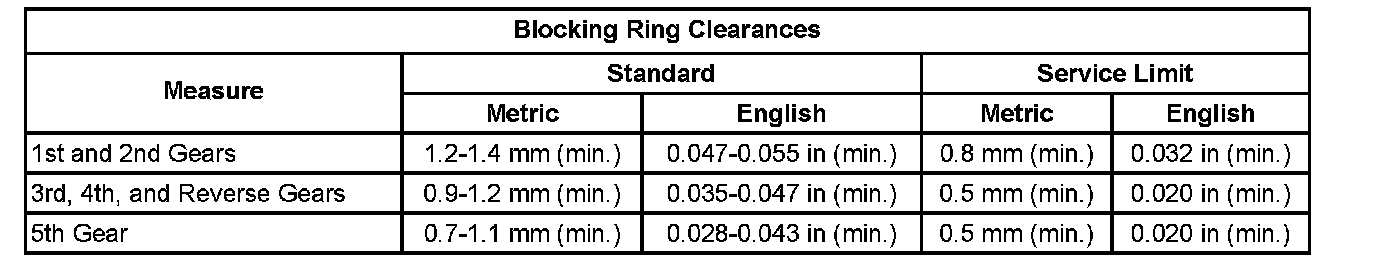

Blocking Ring Clearances:

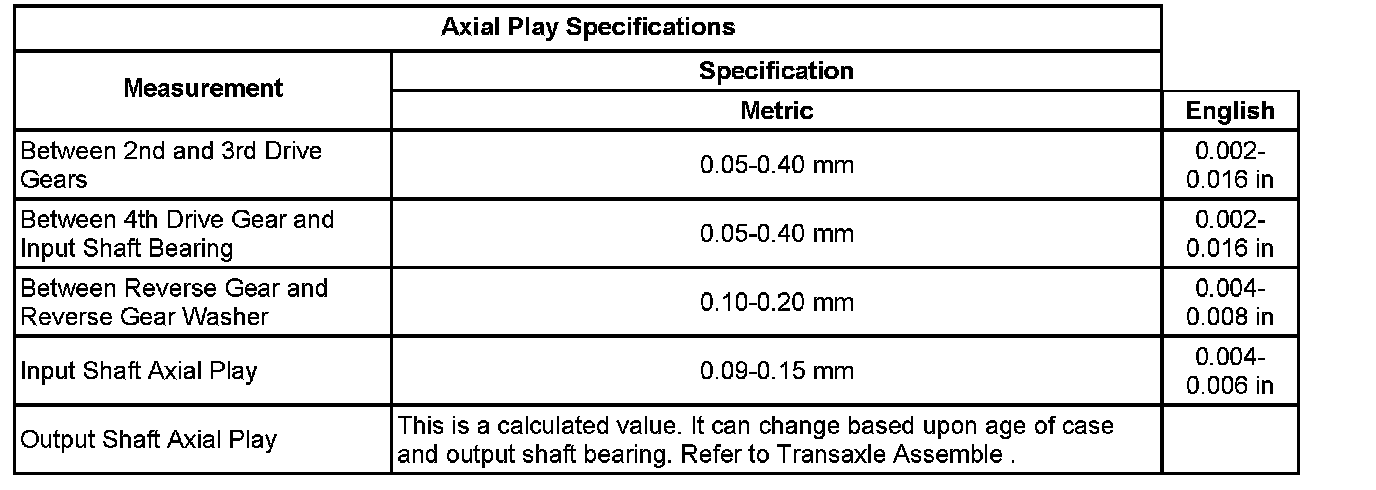

Axial Play Specifications:
