Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> Transmission Temperature Sensor/Switch, A/T

Transmission Temperature Sensor/Switch, A/T

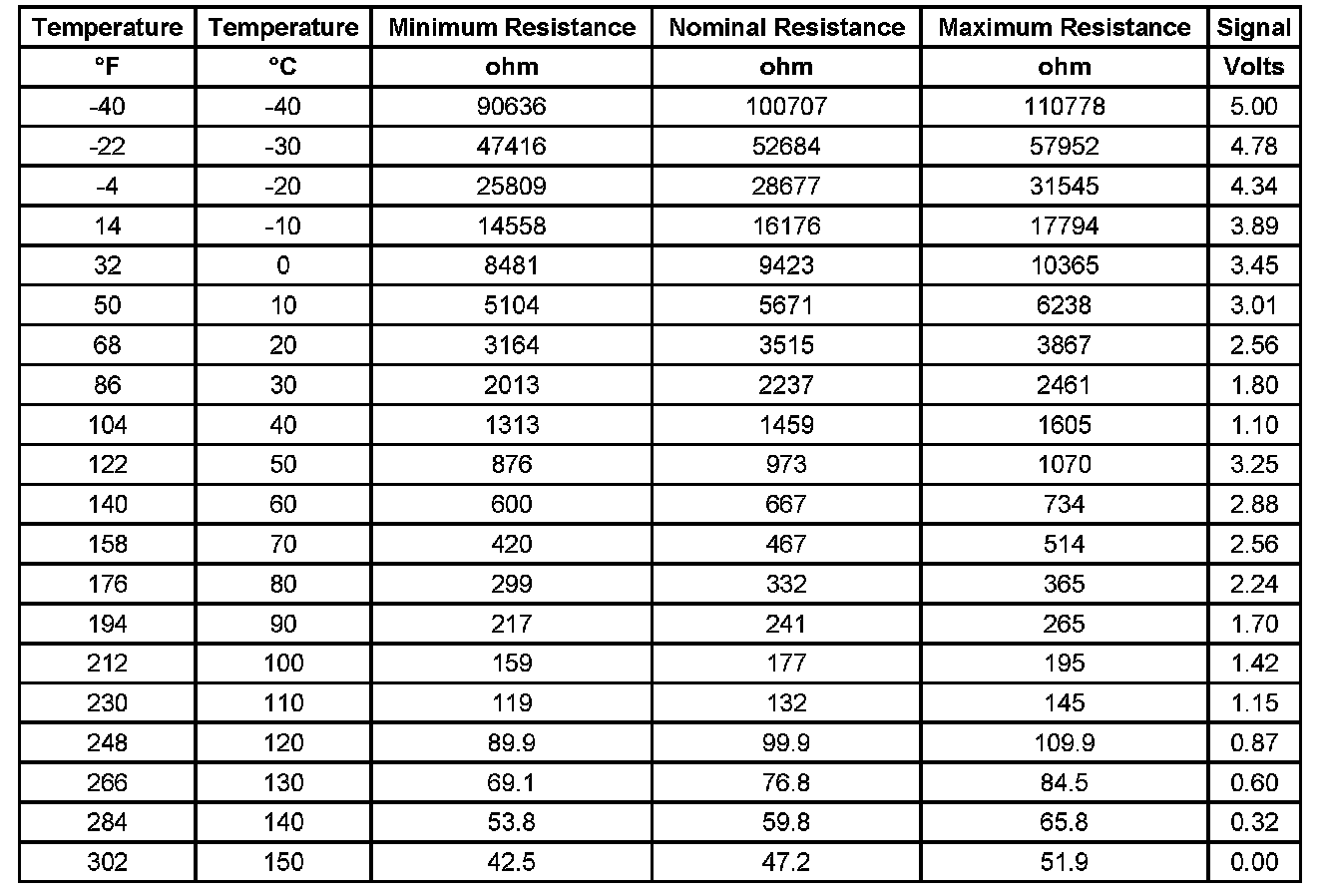

Transmission Fluid Temperature Sensor Specifications

Transmission Fluid Temperature Sensor Specifications:
