Seat Belt Buckle Switch: Diagrams

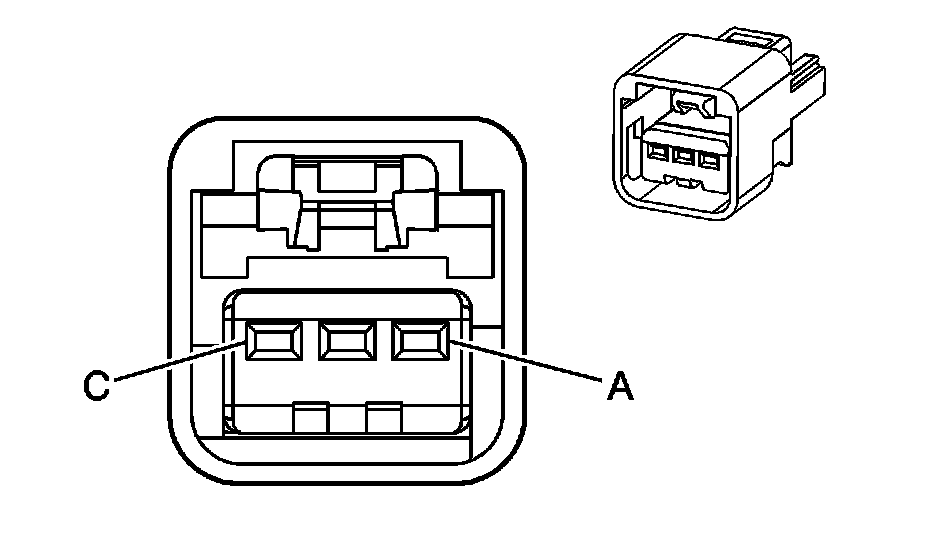

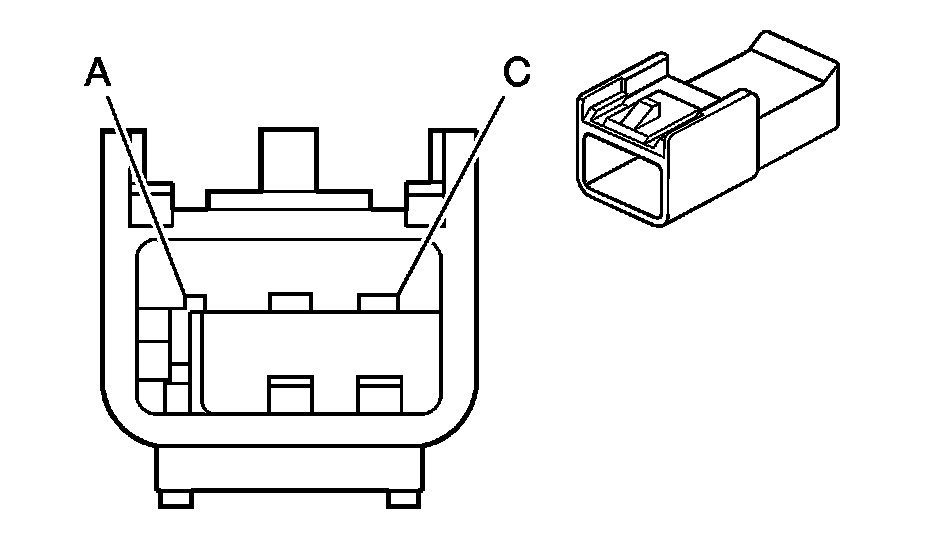

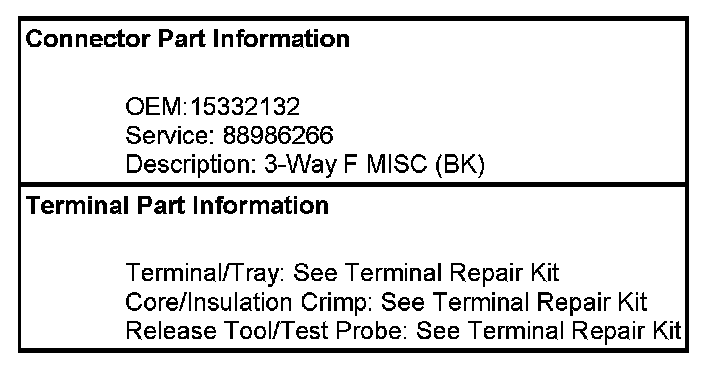

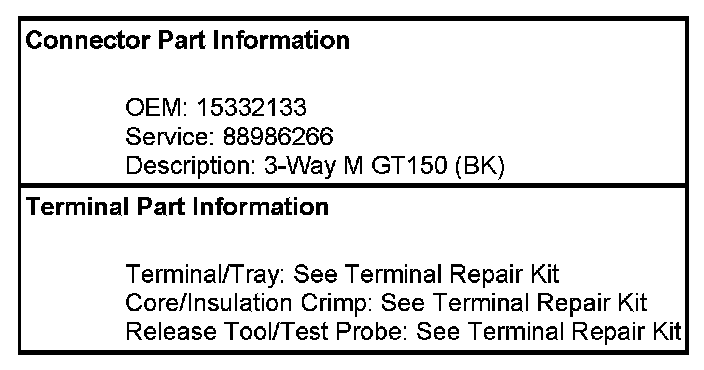

Seat Belt Connector End Views

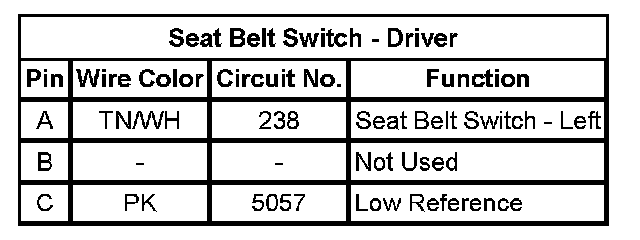

Seat Belt Switch - Driver

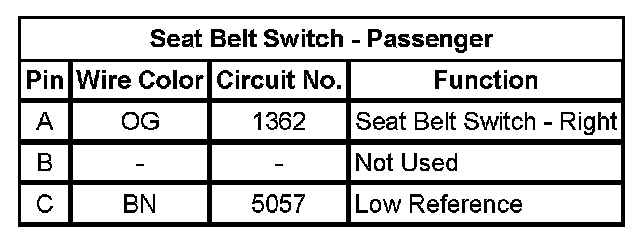

Seat Belt Switch - Passenger
