Door Switch: Diagrams

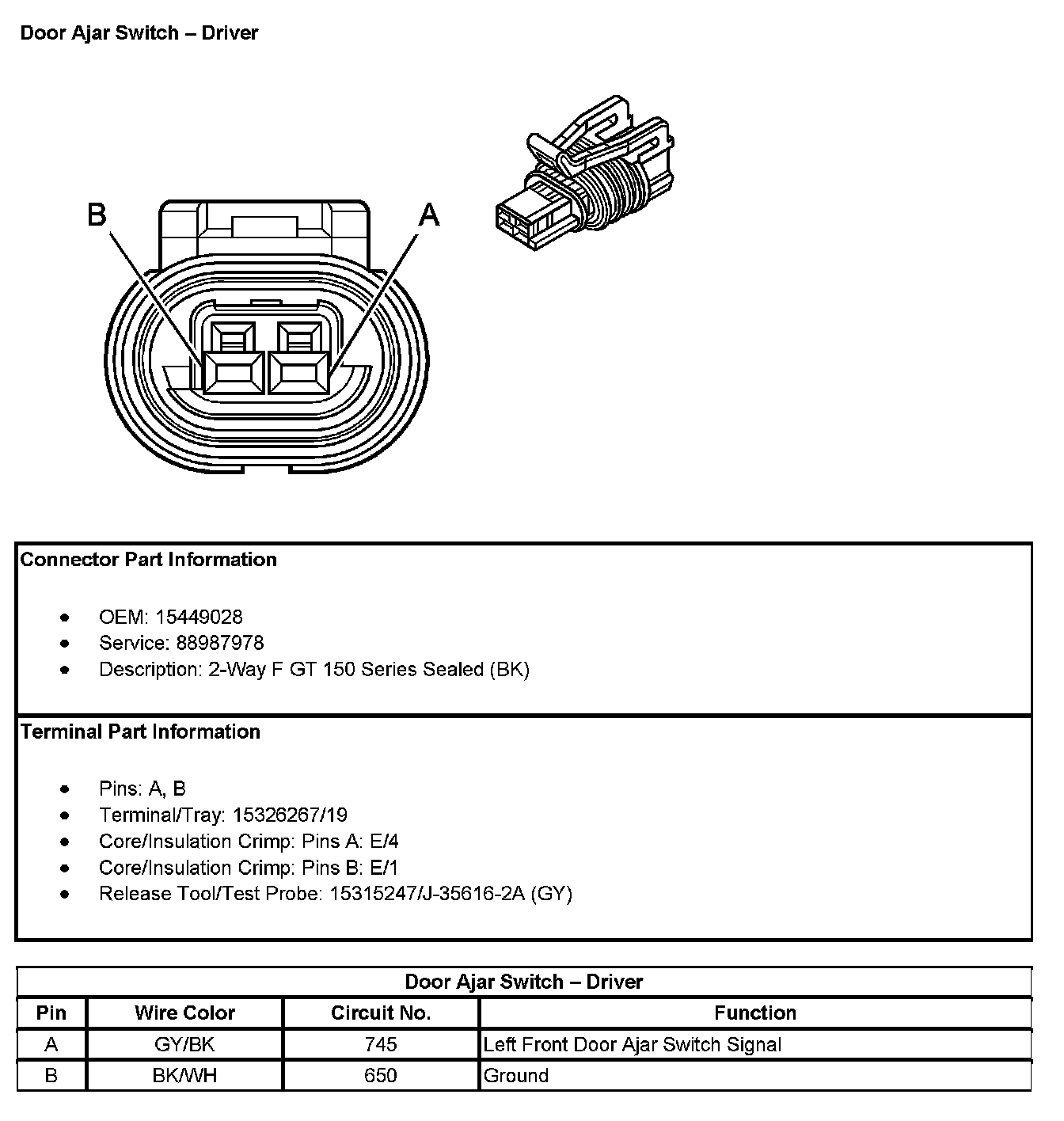

Door Ajar Switch - Driver:

Door Ajar Switch - LR (Sedan):

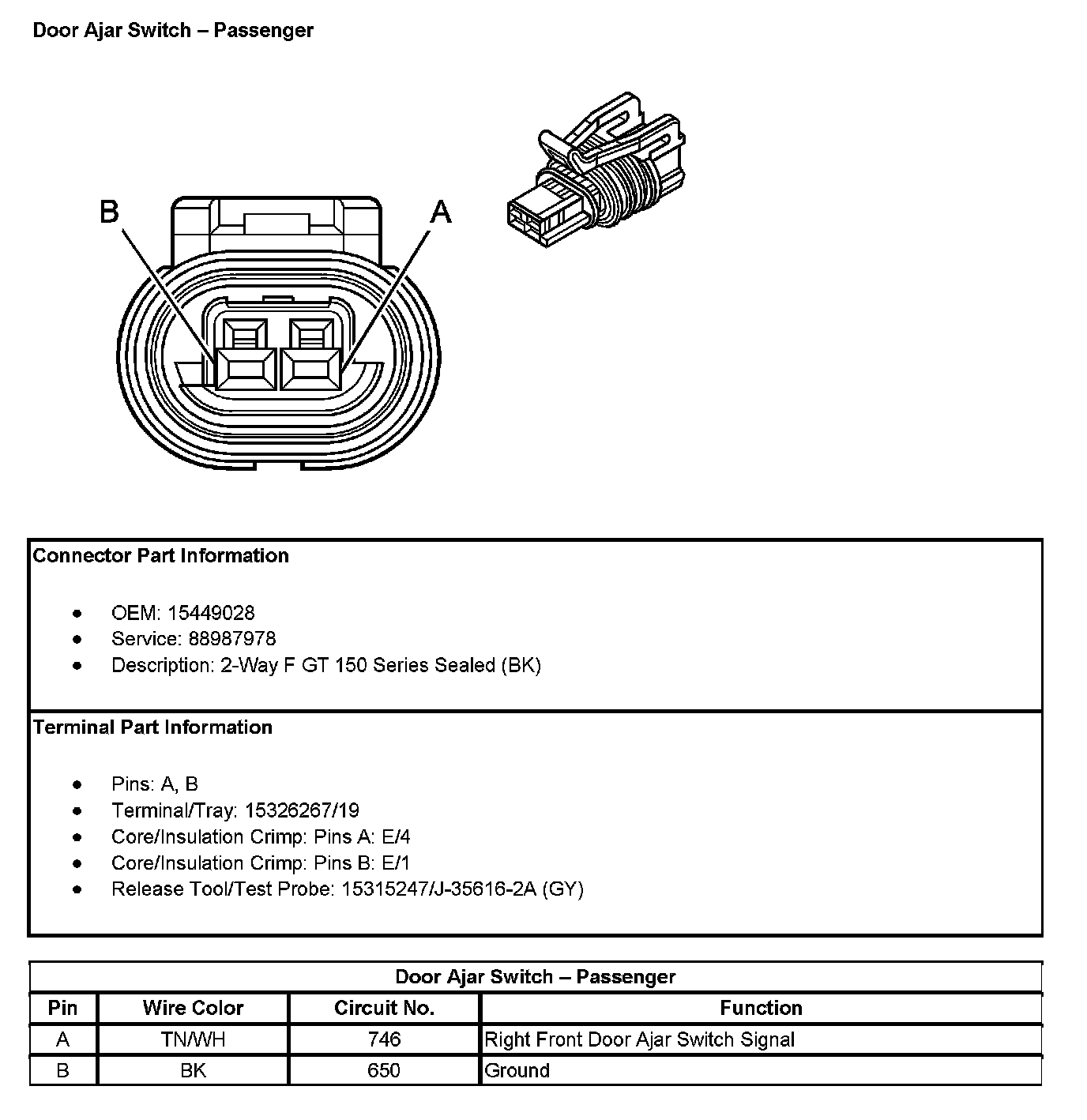

Door Ajar Switch - Passenger:

Door Ajar Switch - RR (Sedan):
