Outside Temperature Display Sensor: Locations

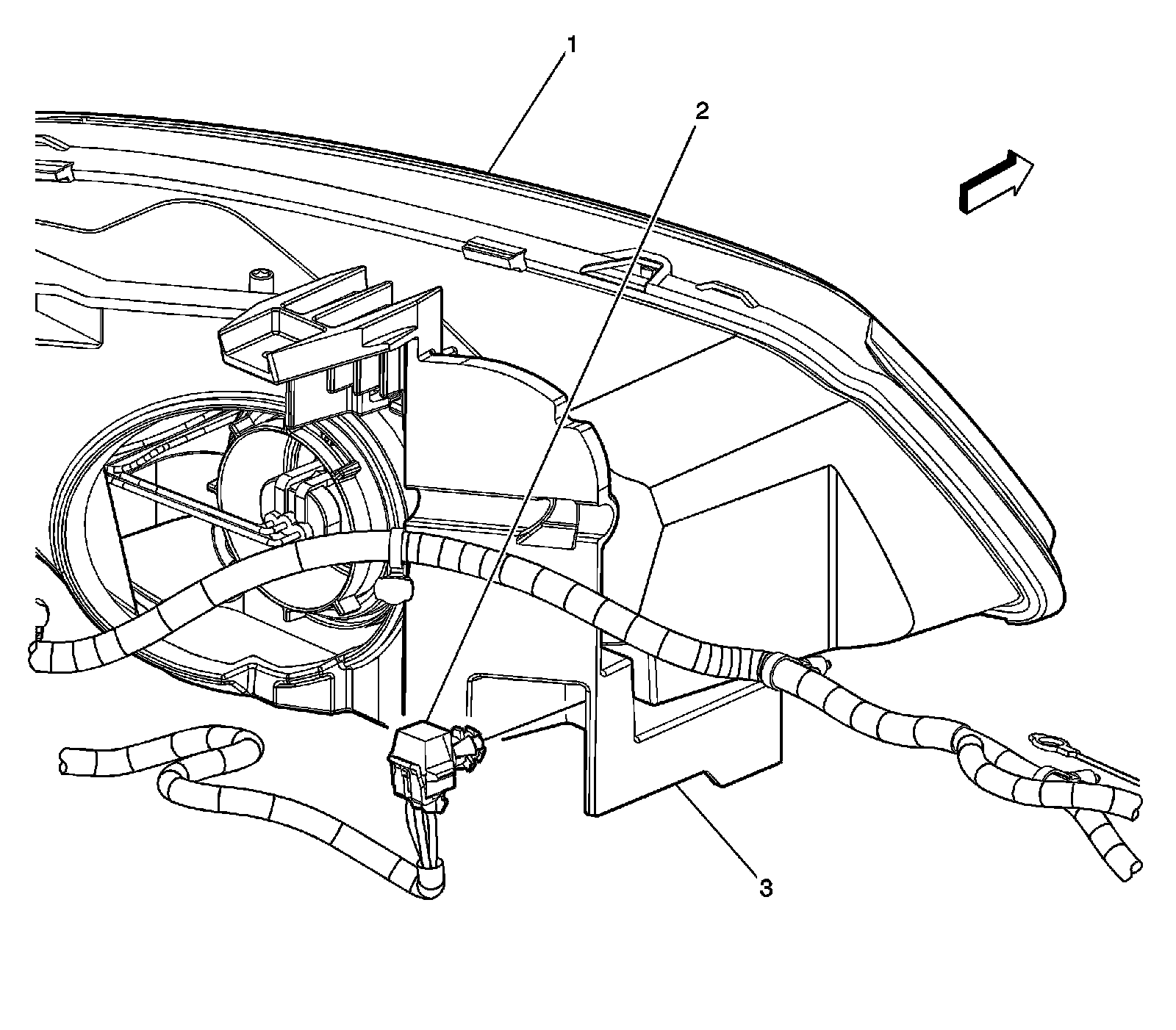

Displays and Gages Component Views

Ambient Air Temperature Sensor




1 - Headlamp - Left
2 - Ambient Air Temperature Sensor
3 - Headlamp Bracket
