Refrigerant Pressure Sensor / Switch: Diagrams

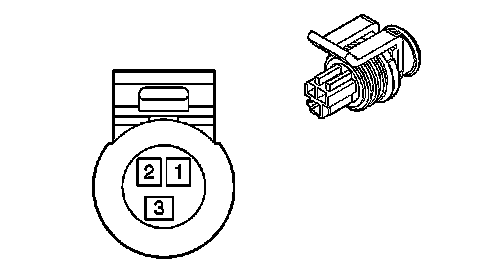

HVAC Connector End Views

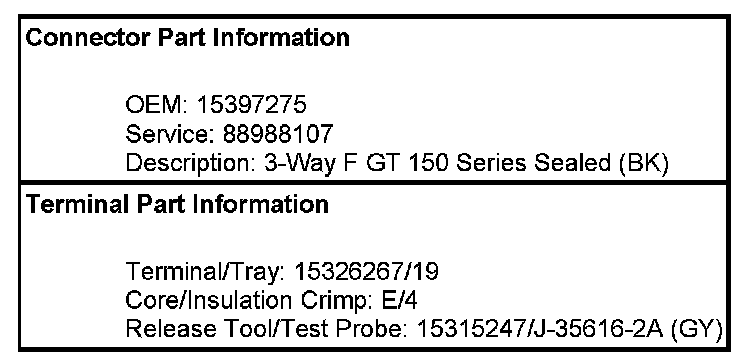

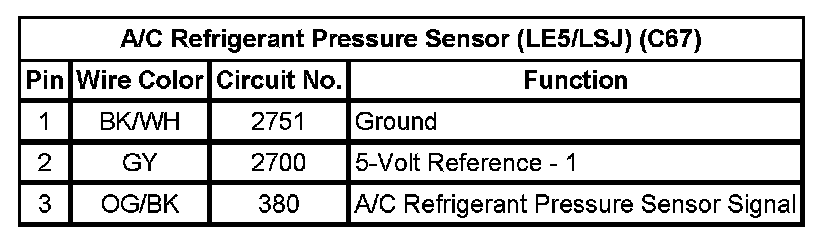

A/C Refrigerant Pressure Sensor (LE5/LSJ) (C67)
