Impact Sensor: Diagrams

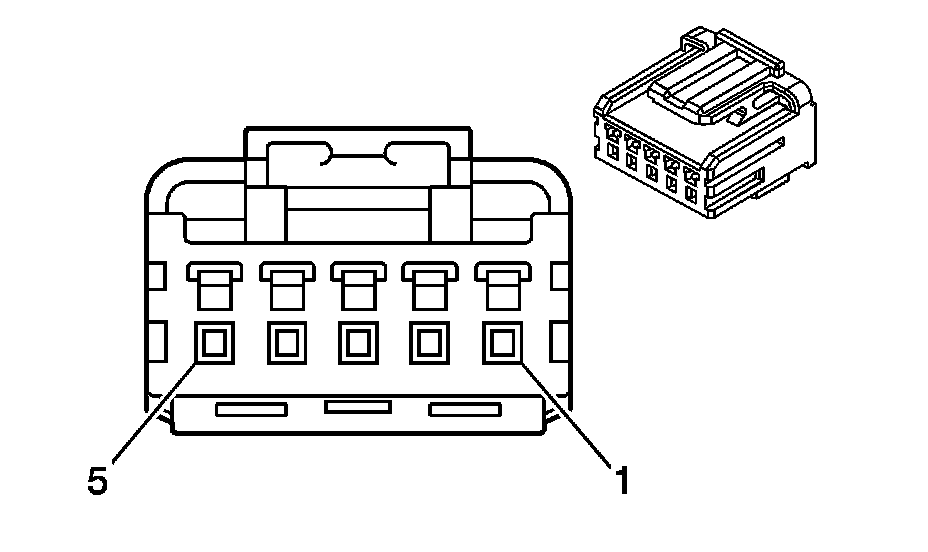

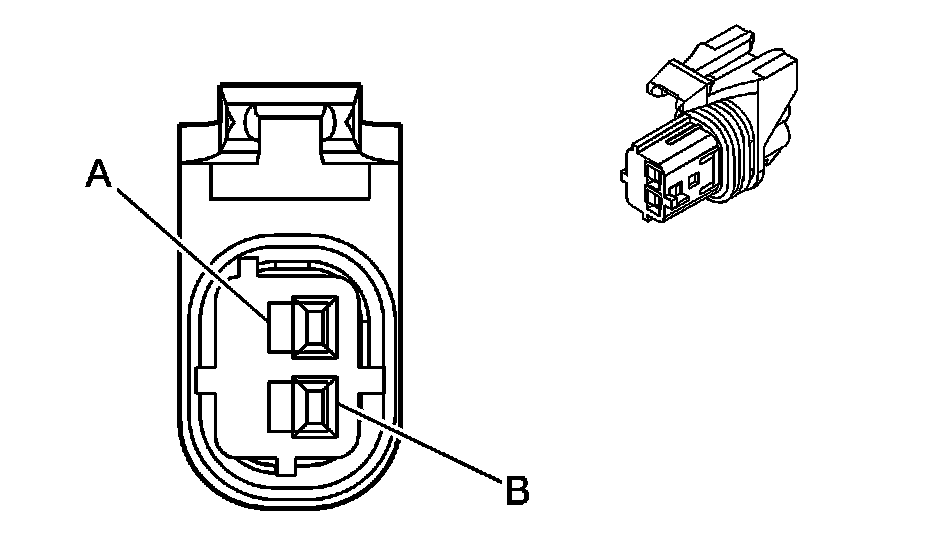

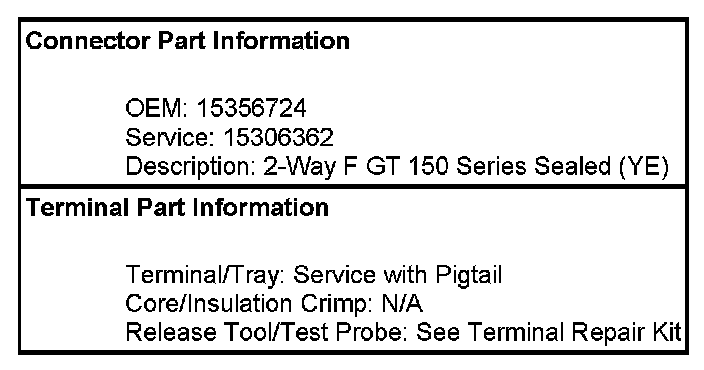

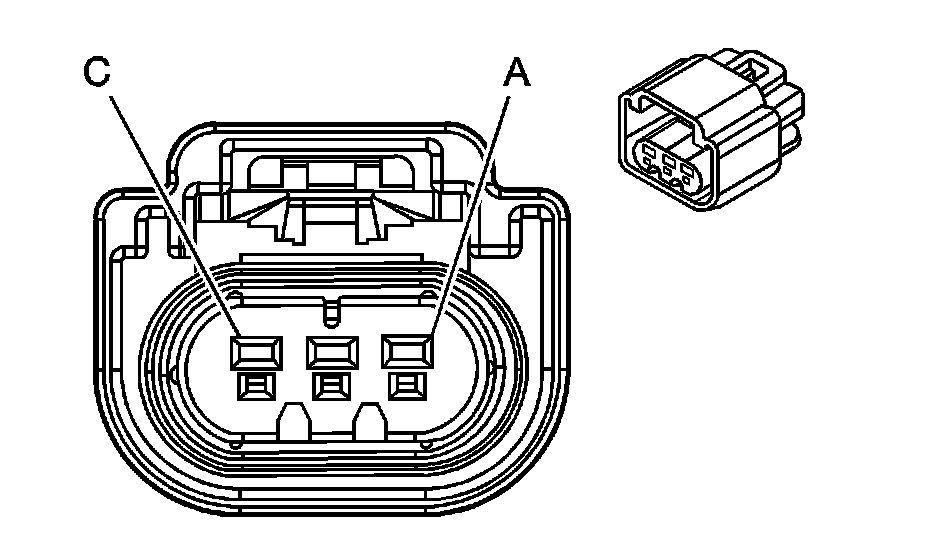

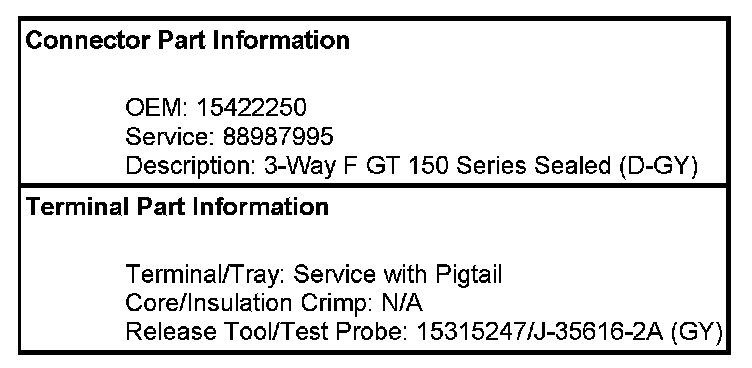

SIR Connector End Views

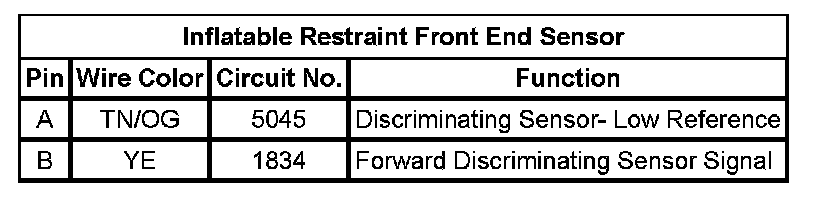

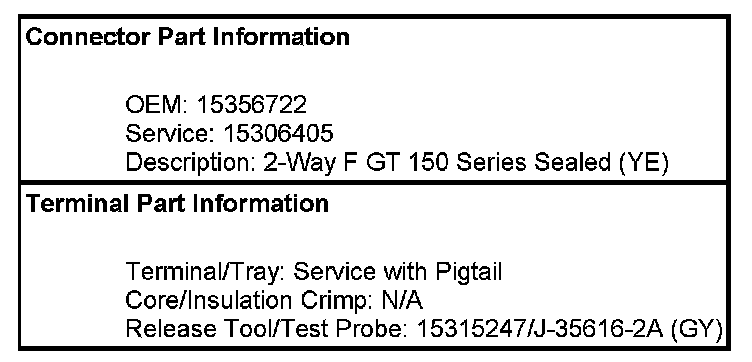

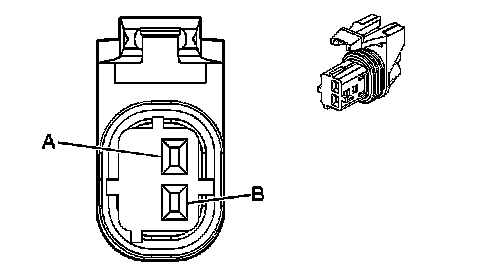

Inflatable Restraint Front End Sensor

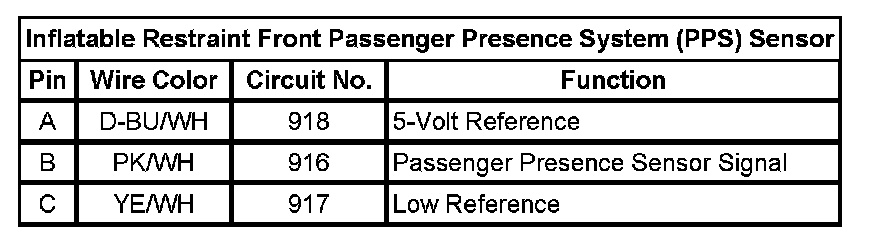

Inflatable Restraint Front Passenger Presence System (PPS) Sensor

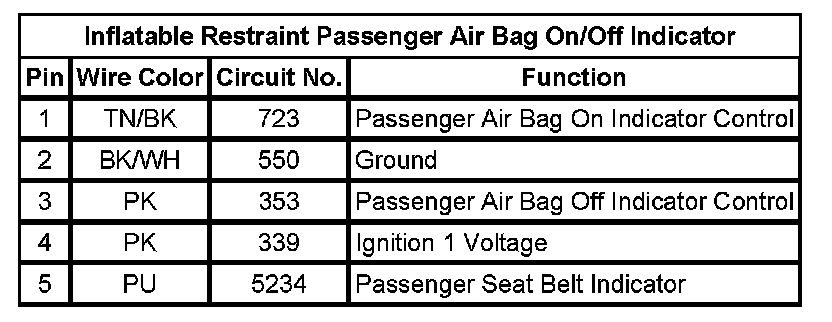

Inflatable Restraint Passenger Air Bag On/Off Indicator

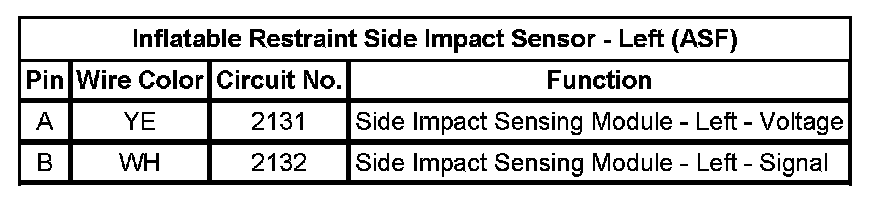

Inflatable Restraint Side Impact Sensor - Left (ASF)

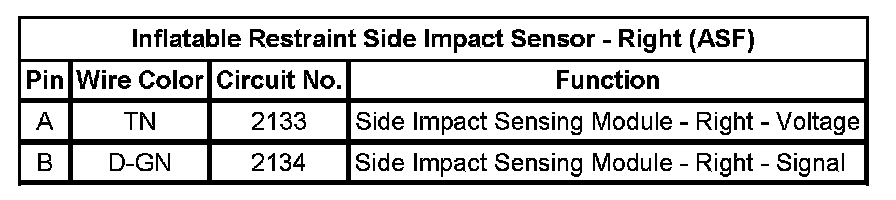

Inflatable Restraint Side Impact Sensor - Right (ASF)
