Compressor Clutch Relay: Locations

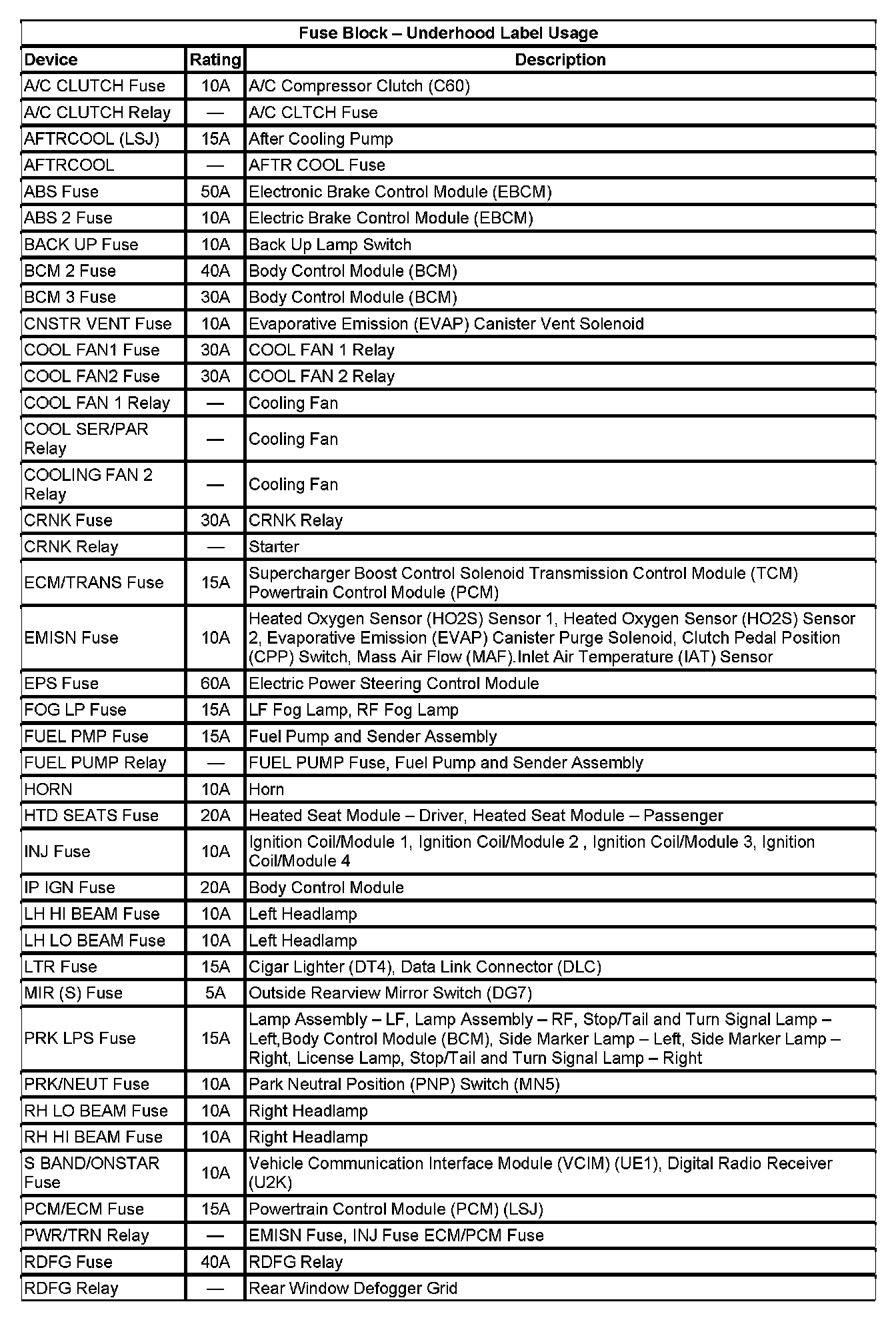

Fuse Block - Underhood Label Usage (Part 1):

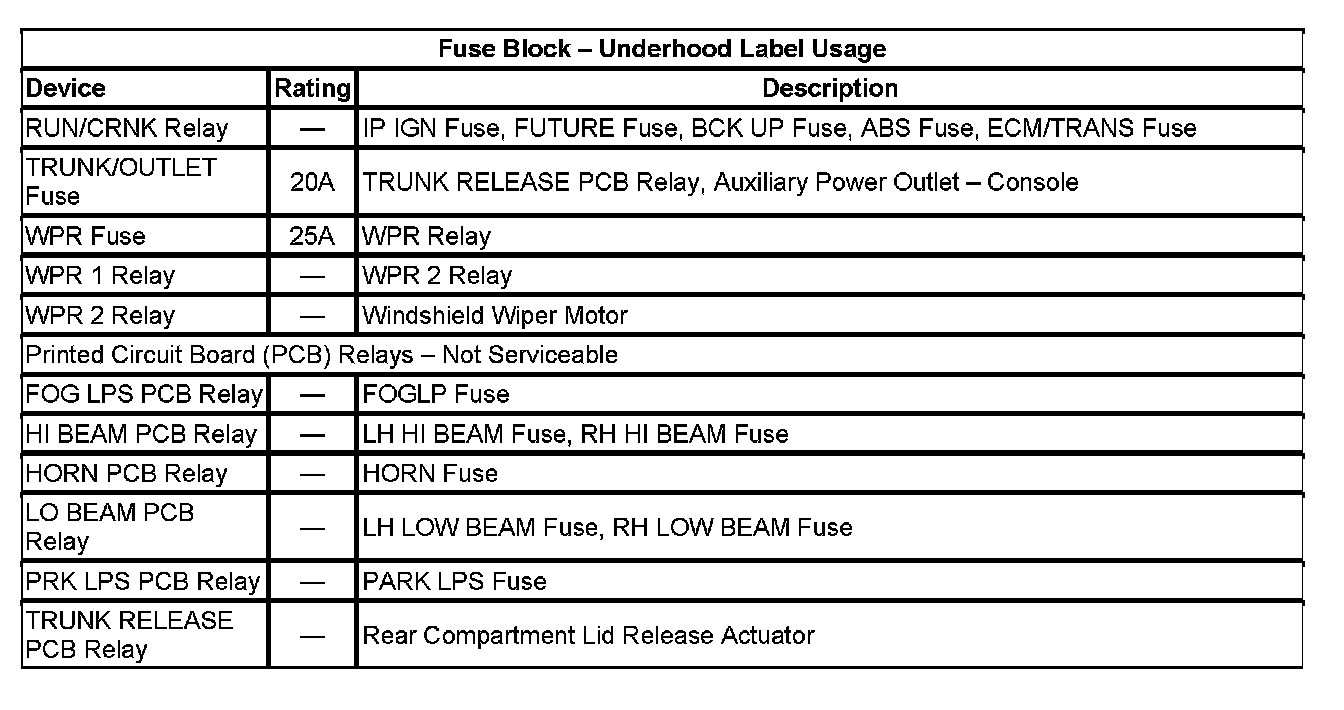

Fuse Block - Underhood Label Usage (Part 2):
