Evaporative Emission (EVAP) Hoses/Pipes Replacement - Engine/Chassis

Evaporative Emission Hoses/Pipes Replacement - Engine/Chassis

Removal Procedure

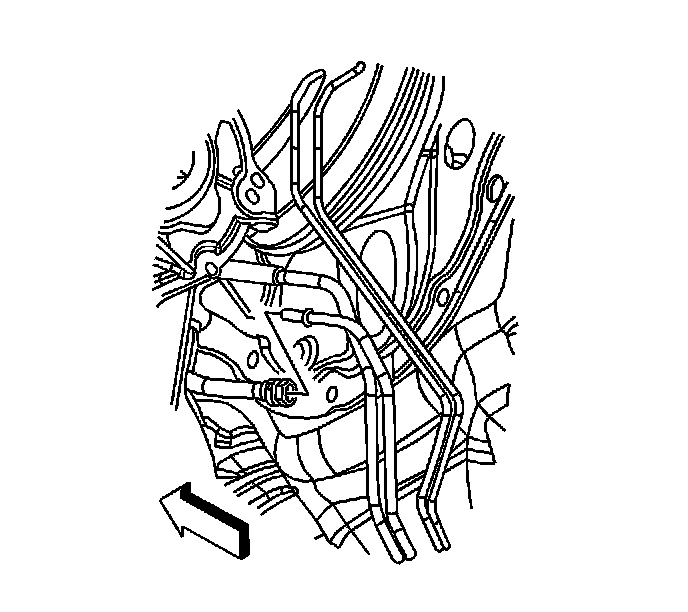

1. Disconnect the evaporative emission (EVAP) purge pipe from the engine purge hose.
2. Cap or plug the purge pipe and the engine purge hose to prevent contamination.




3. Raise and support the vehicle. Refer to Vehicle Lifting.
4. Remove the EVAP canister for pipe removal access.
5. Remove the rear brake pipe bracket retaining nuts and release the brackets from the body studs.




6. Release the pipe retainers (1) from the vehicle underbody.
7. Remove the purge pipe from the pipe retainers.
8. Lower the rear of the pipe while moving the pipe rearward slightly, then lower the front of the pipe.
9. Remove the purge pipe from the vehicle.

Installation Procedure




1. Position the purge pipe to the vehicle.
2. With the rear of the pipe positioned slightly rearward and down, raise the front of the pipe into position.
3. Install the remainder of the pipe into position.
4. Install the purge pipe to the pipe retainers.
5. Secure the pipe retainers (1) to the vehicle underbody.






Notice: Refer to Fastener Notice.

6. Install the rear brake hose brackets to the body studs and install the rear brake hose bracket retaining nuts.

Tighten the nuts to 10 N.m (89 lb in).

7. Install the EVAP canister.
8. Lower the vehicle.




9. Remove the caps or plugs from the purge pipe and the engine purge hose.
10. Connect the purge pipe to the engine purge hose.
