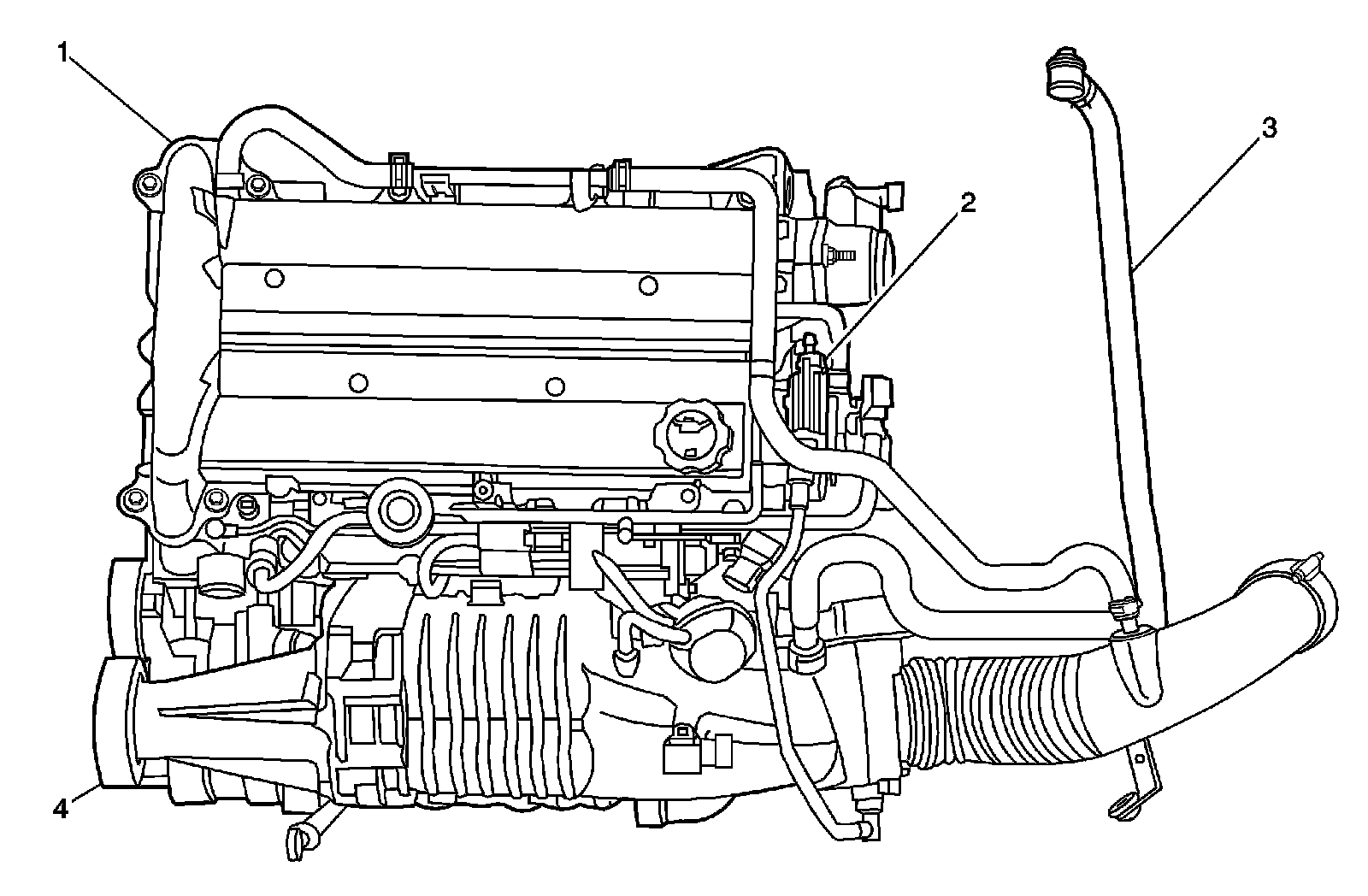

Emission Hose Routing Diagram

Emission Hose Routing Diagram

1 - Engine
2 - EVAP Canister Purge Solenoid Valve
3 - To Brake Booster
4 - Supercharger
