Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Power and Ground Distribution >> Testing and Inspection >> Ignition Key Cannot Be Removed From the Ignition Lock Cylinder

Ignition Key Cannot Be Removed From the Ignition Lock Cylinder

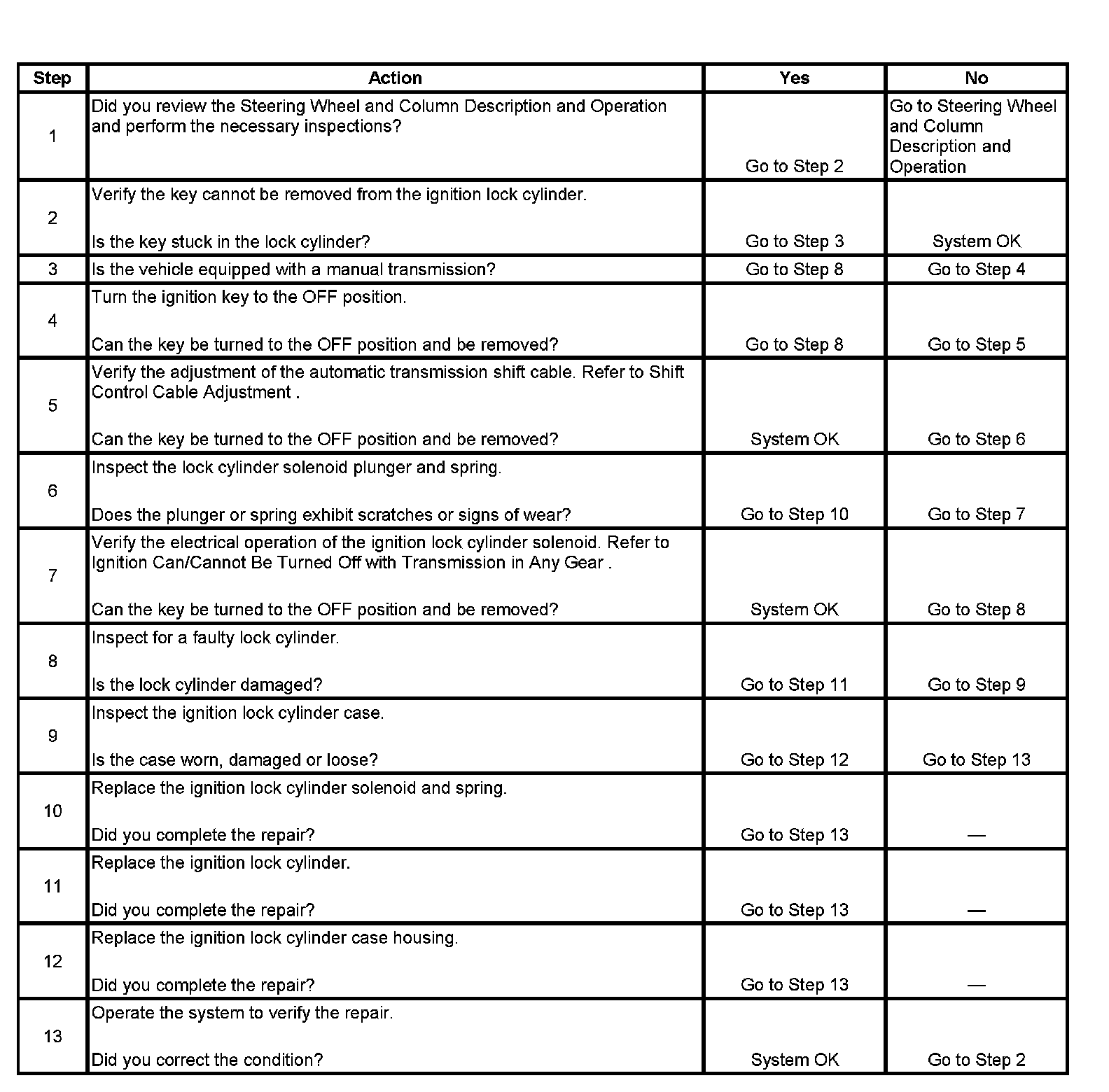

Step 1 - Step 13:
