Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Ground Views >> G201 and G203

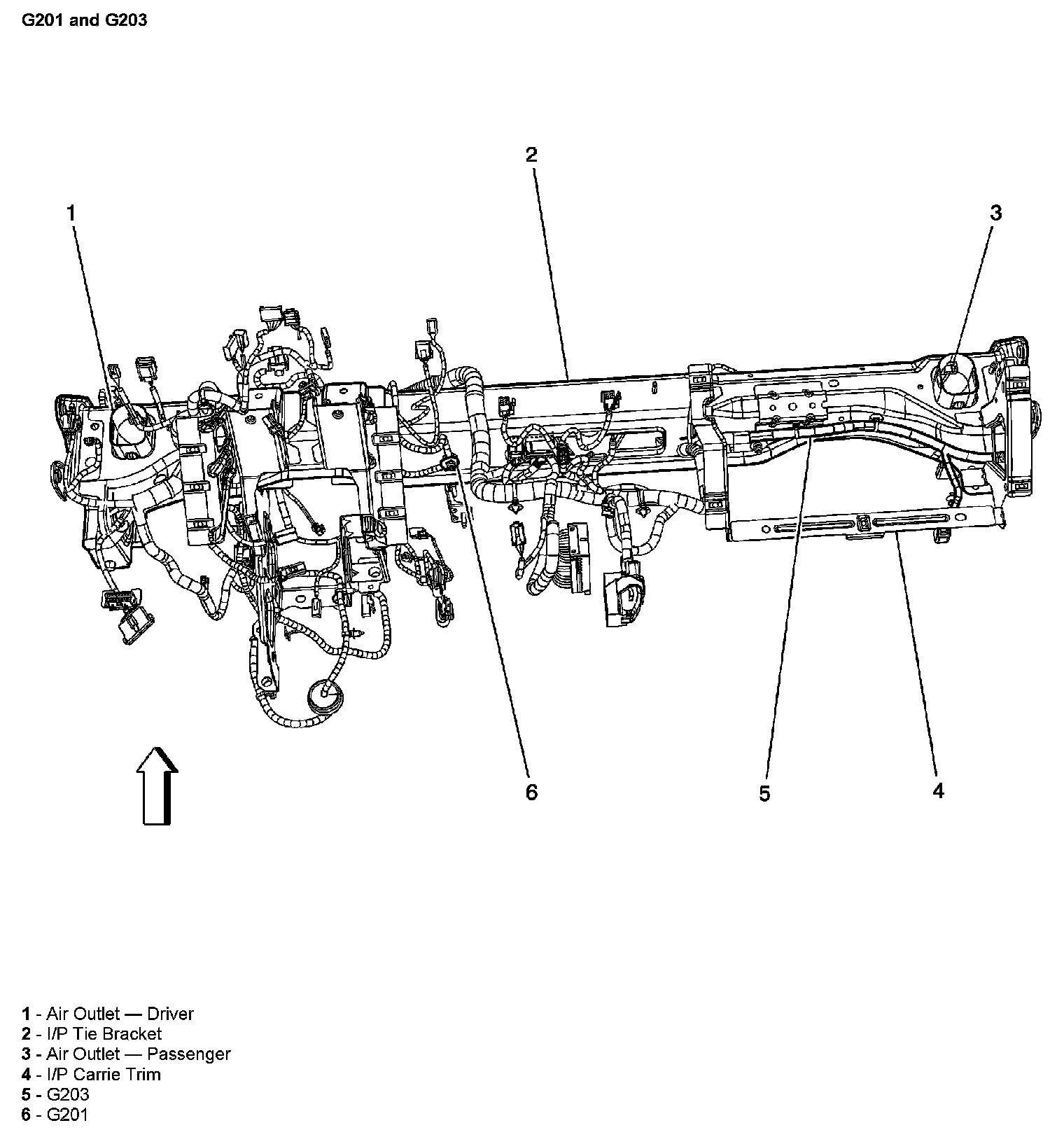

G201 and G203

G201 And G203:
