Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Turn Signal Lamps and/or Indicators Inoperative

Turn Signal Lamps and/or Indicators Inoperative

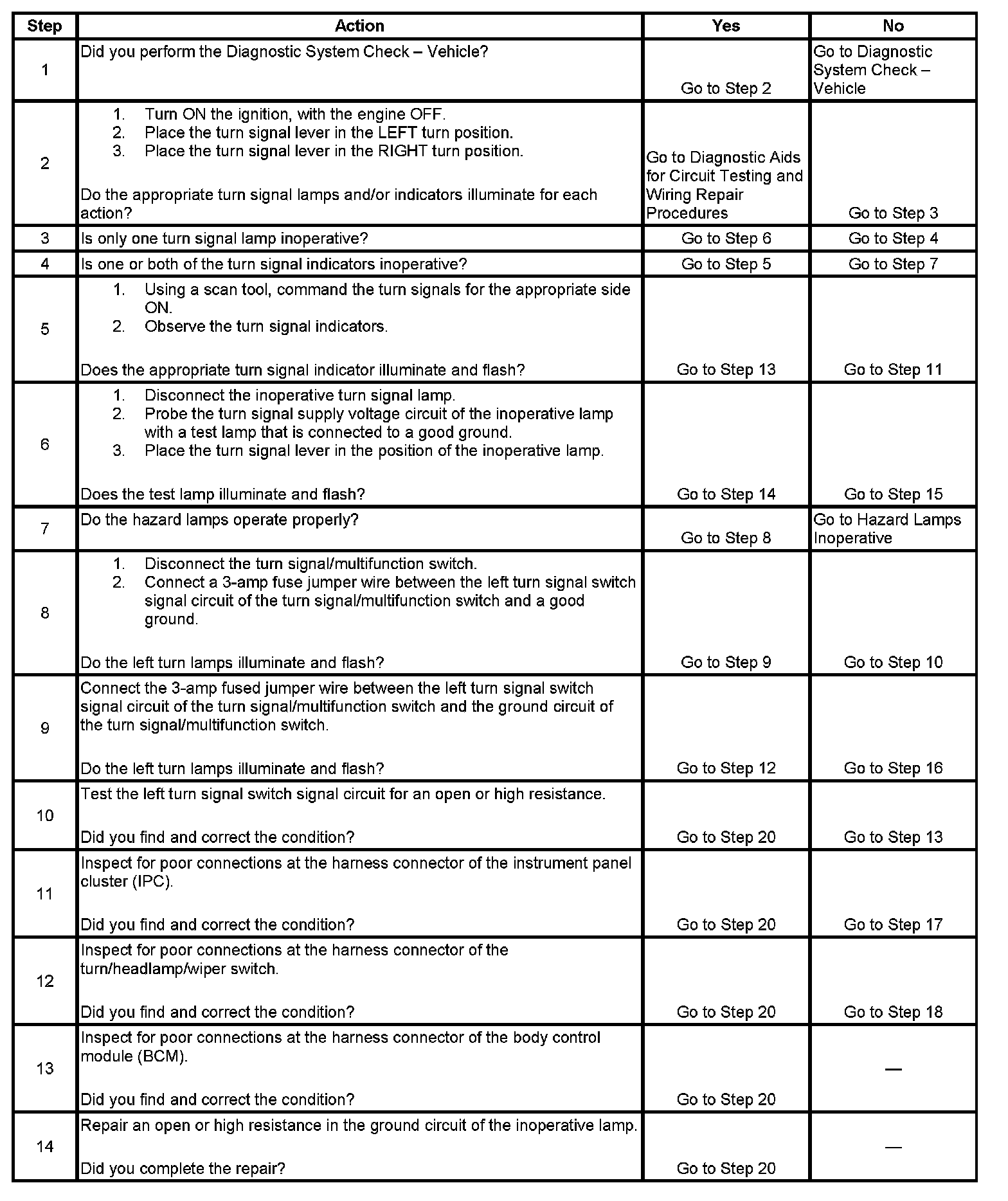

Step 1 - Step 14:

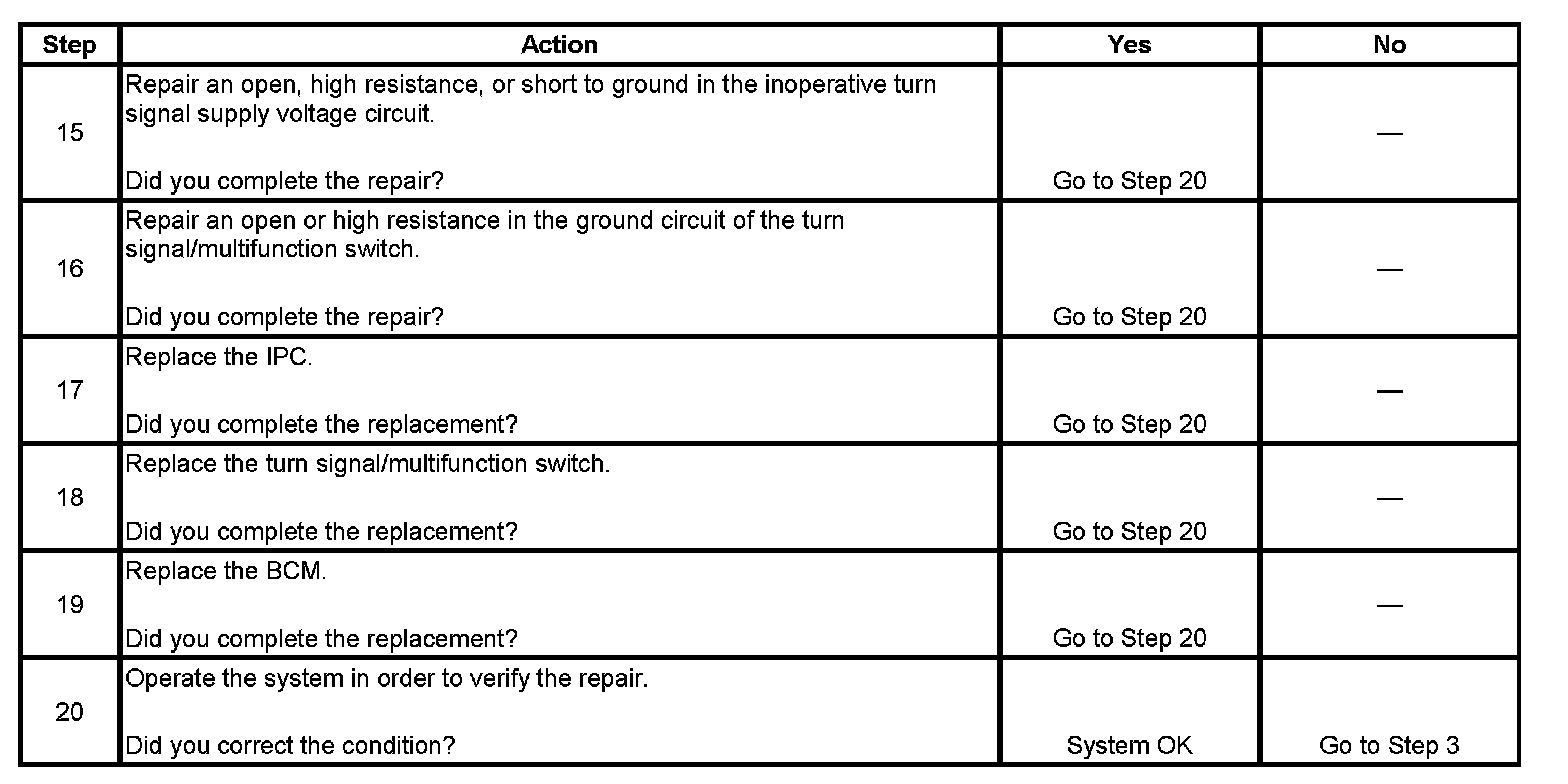

Step 15 - Step 20:
