Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Park Lamps Inoperative

Park Lamps Inoperative

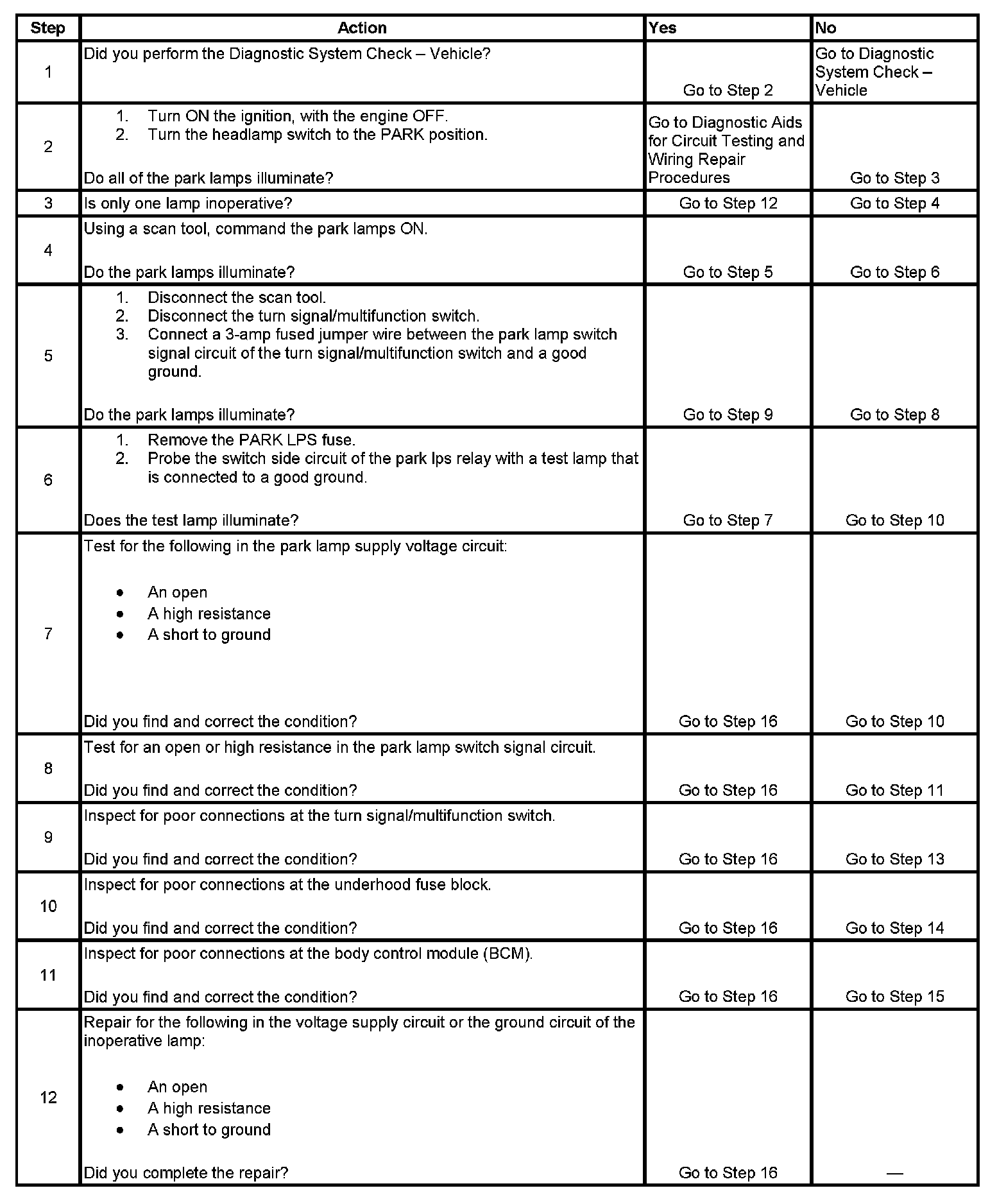

Step 1 - Step 12:

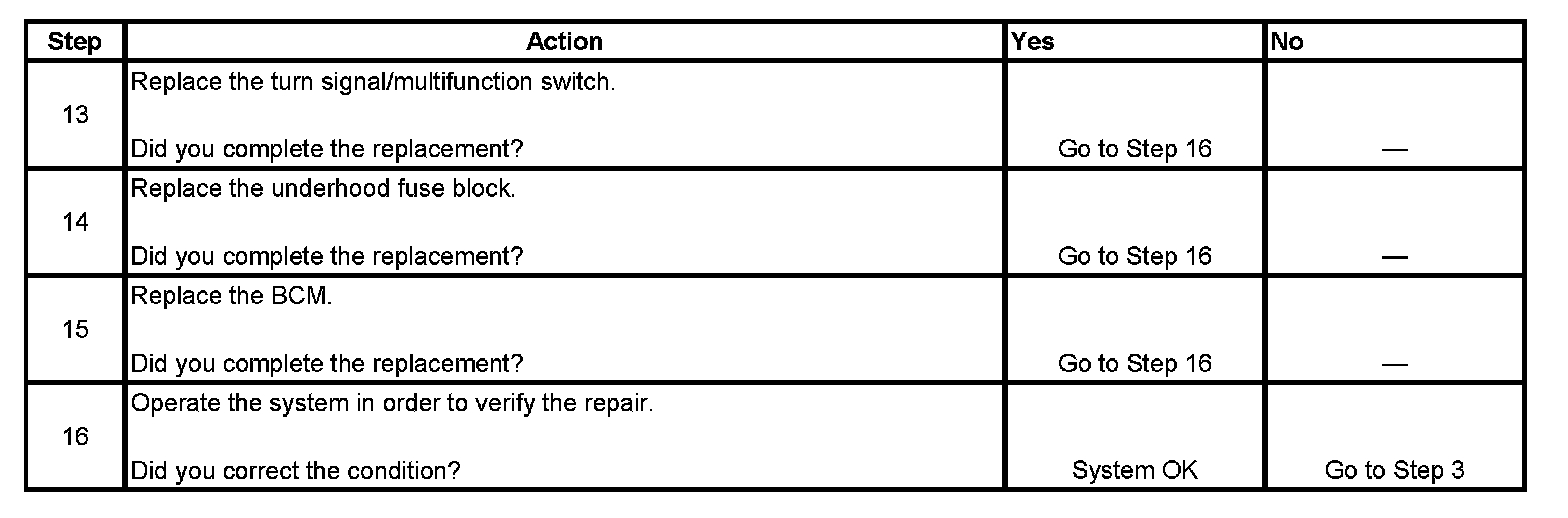

Step 13 - Step 16:
