Compressor Clutch Does Not Disengage



HVAC Compressor Clutch Does Not Disengage

Step 1 - Step 12:

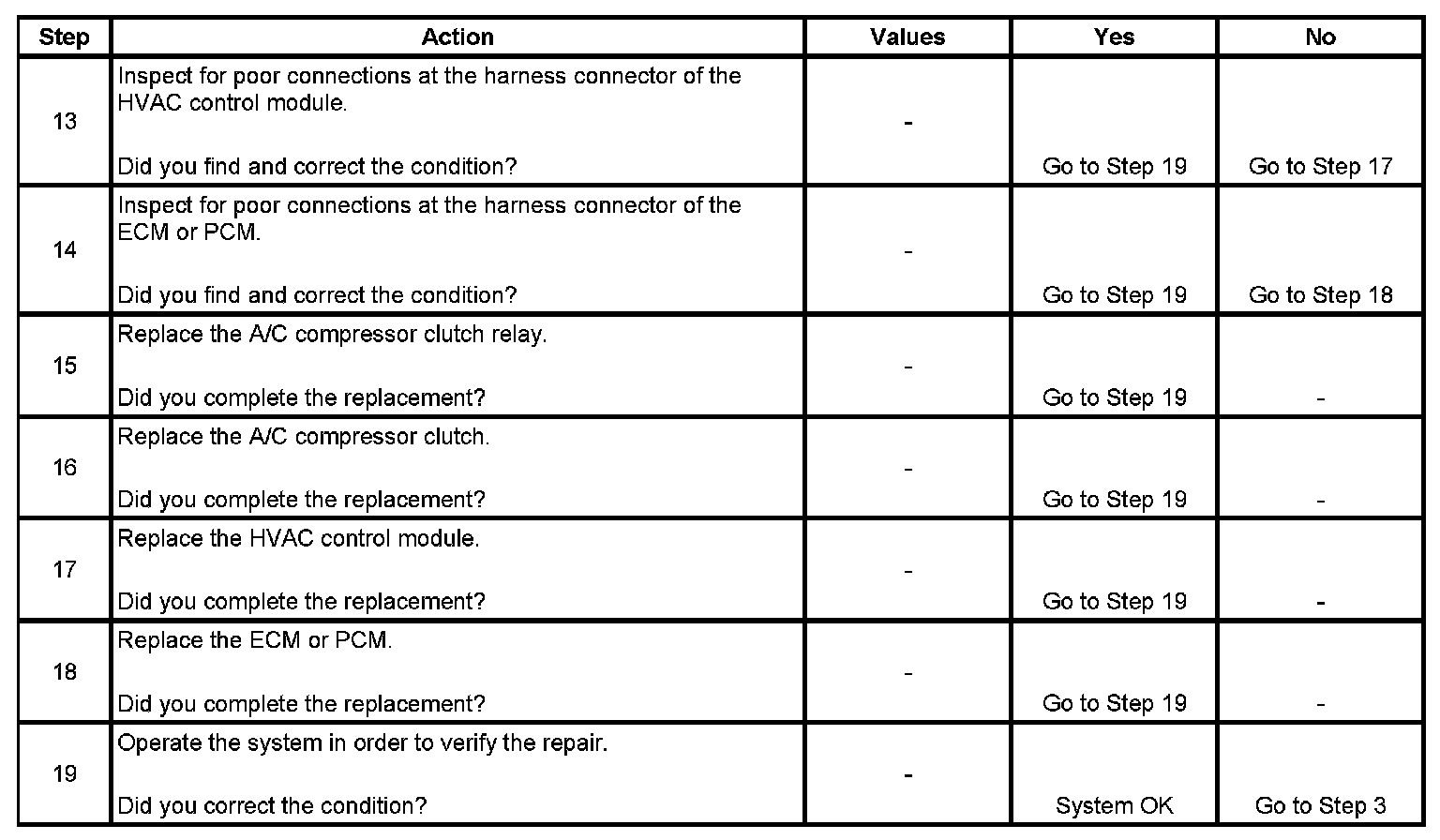

Step 13 - Step 19:
