Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - HVAC System - Manual >> Blower Motor Always On

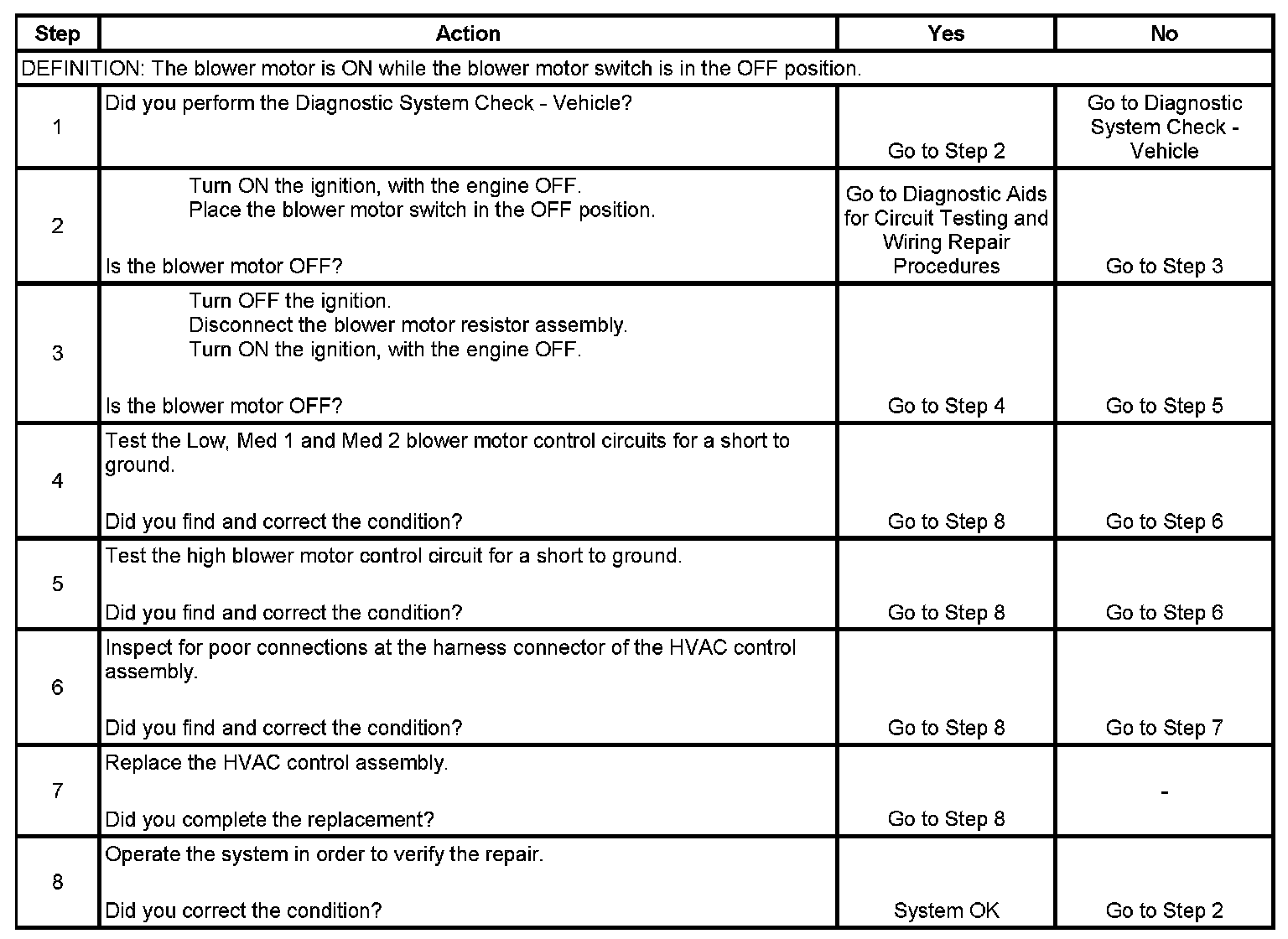

Blower Motor Always On

Blower Motor Always On

Step 1 - Step 8:
