Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Odor Diagnosis

Odor Diagnosis

Odor Diagnosis

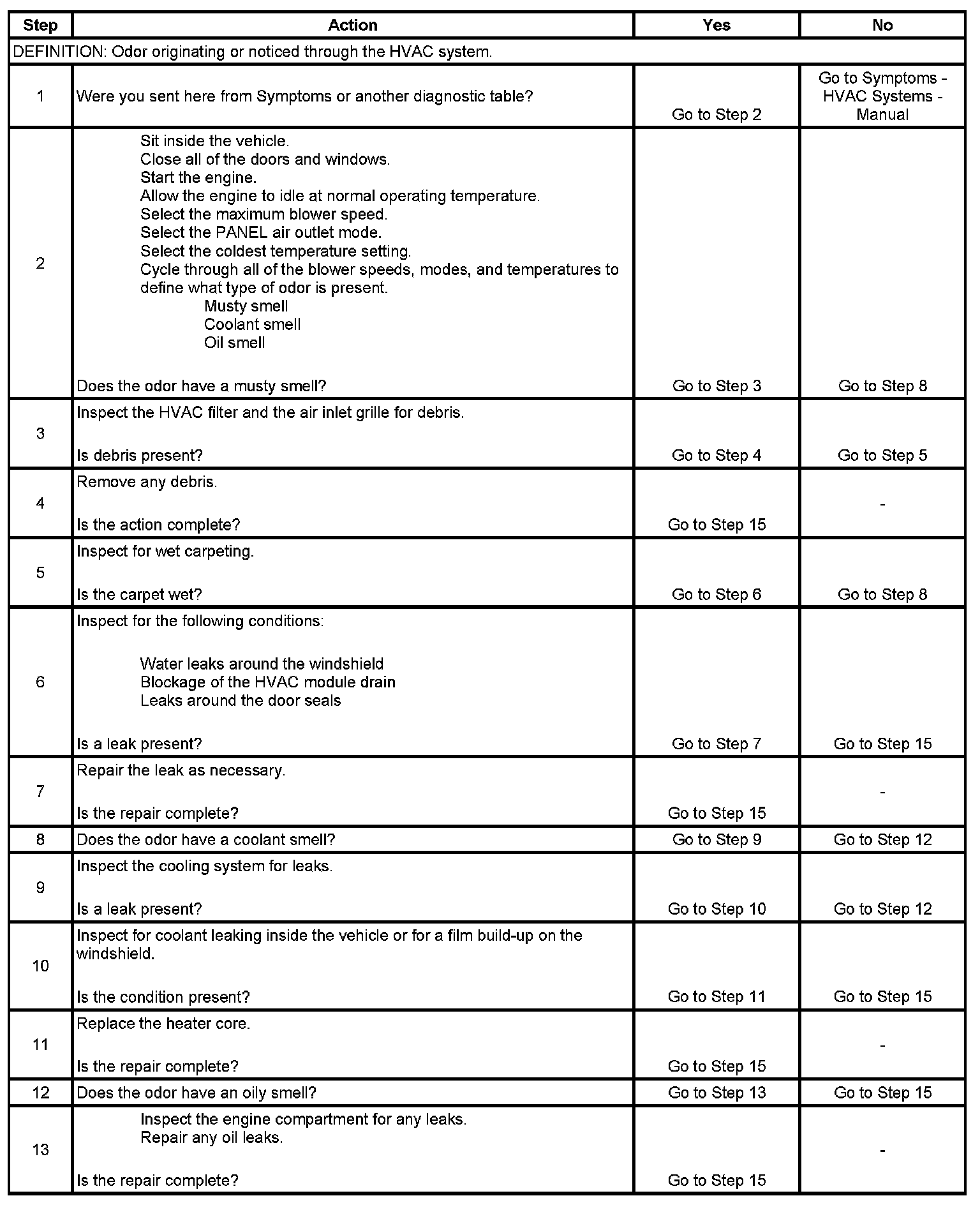

Step 1 - Step 13:

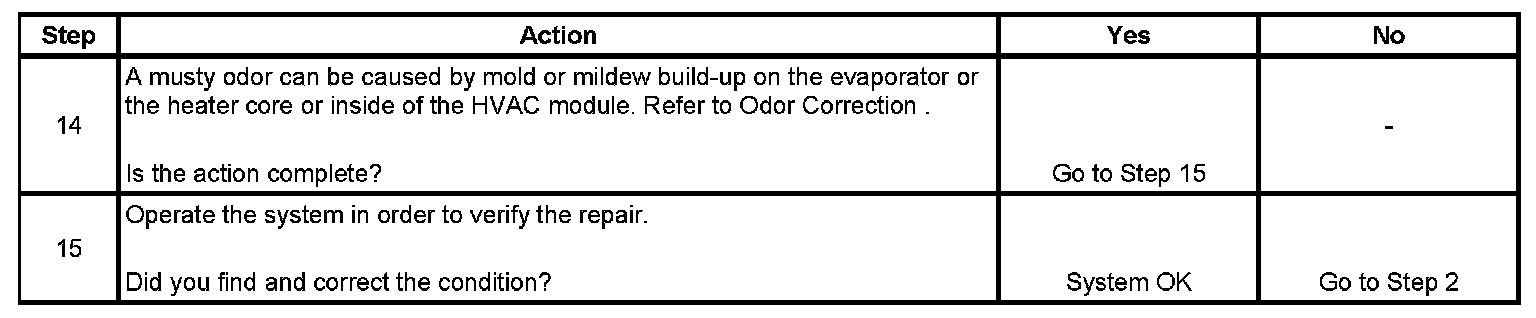

Step 14 - Step 15:
