Noise Diagnosis - Air Conditioning (A/C) System
Noise Diagnosis - Air Conditioning (A/C) System
Noise Diagnosis - Air Conditioning (A/C) System

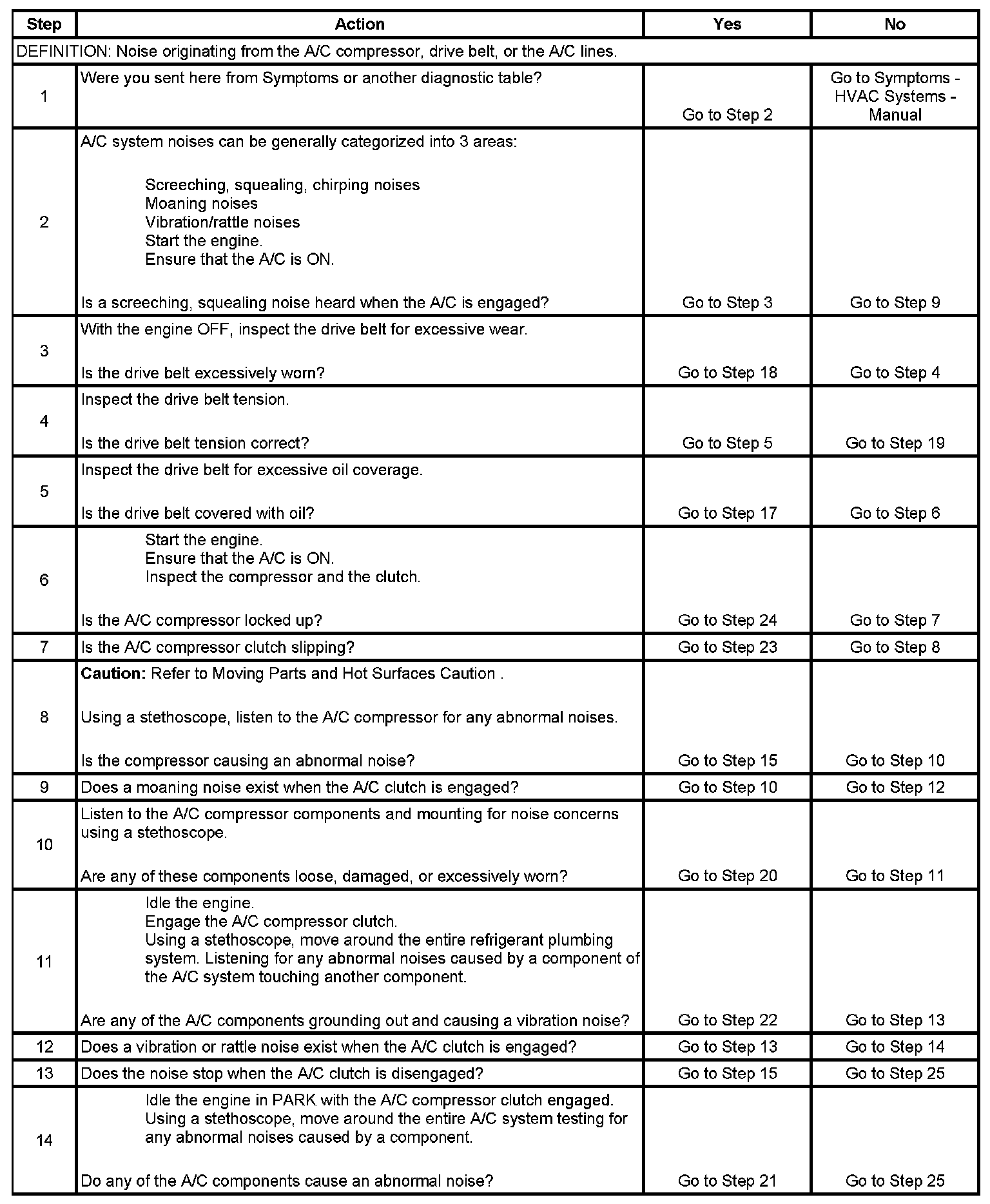

Step 1 - Step 14:

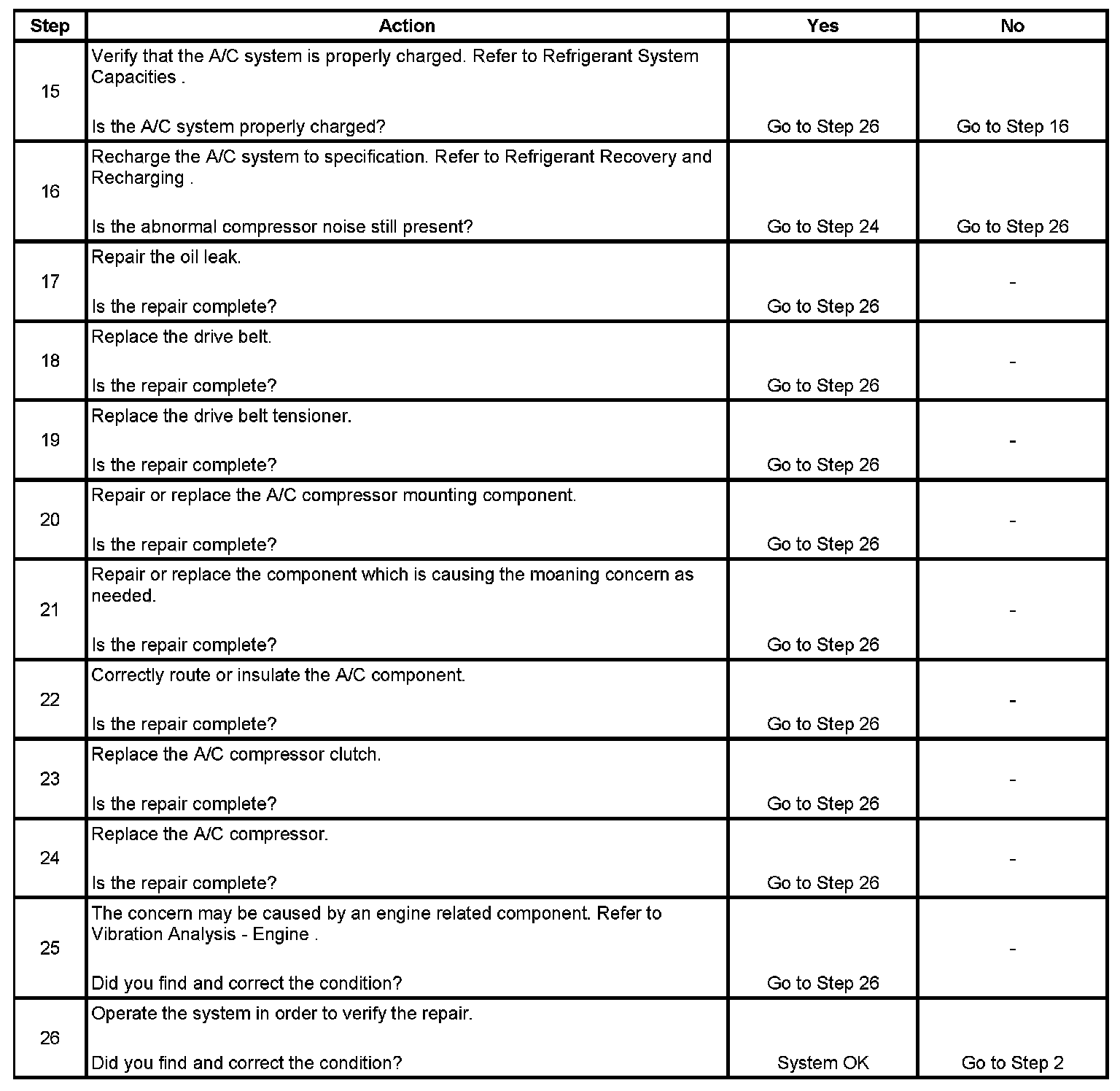

Step 15 - Step 26:
