Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Heating Performance Diagnostic

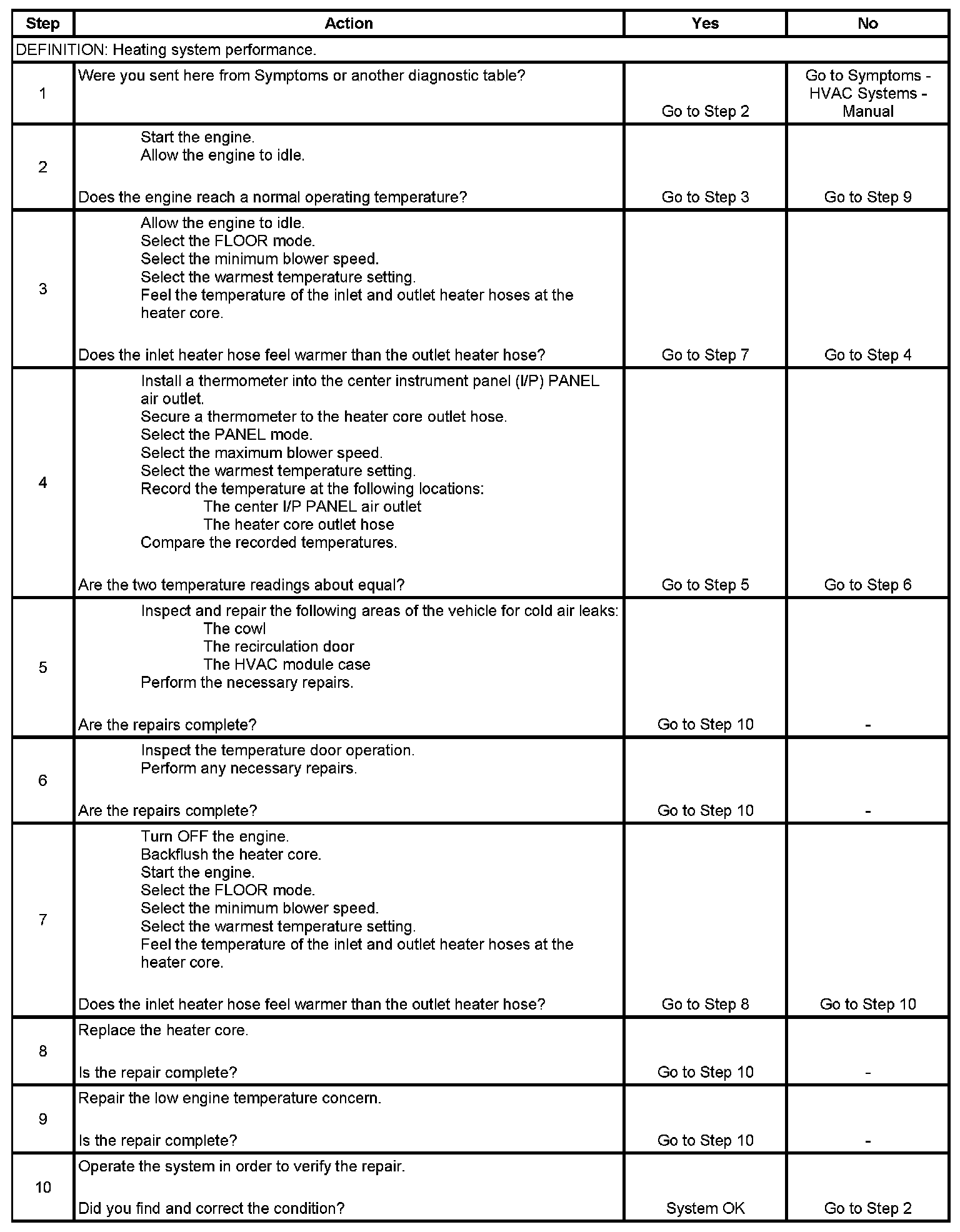

Heating Performance Diagnostic



Heating Performance Diagnostic

Step 1 - Step 10:
