Air Conditioning (A/C) Diagnostics - Pressure Zone D



Air Conditioning (A/C) Diagnostics - Pressure Zone D

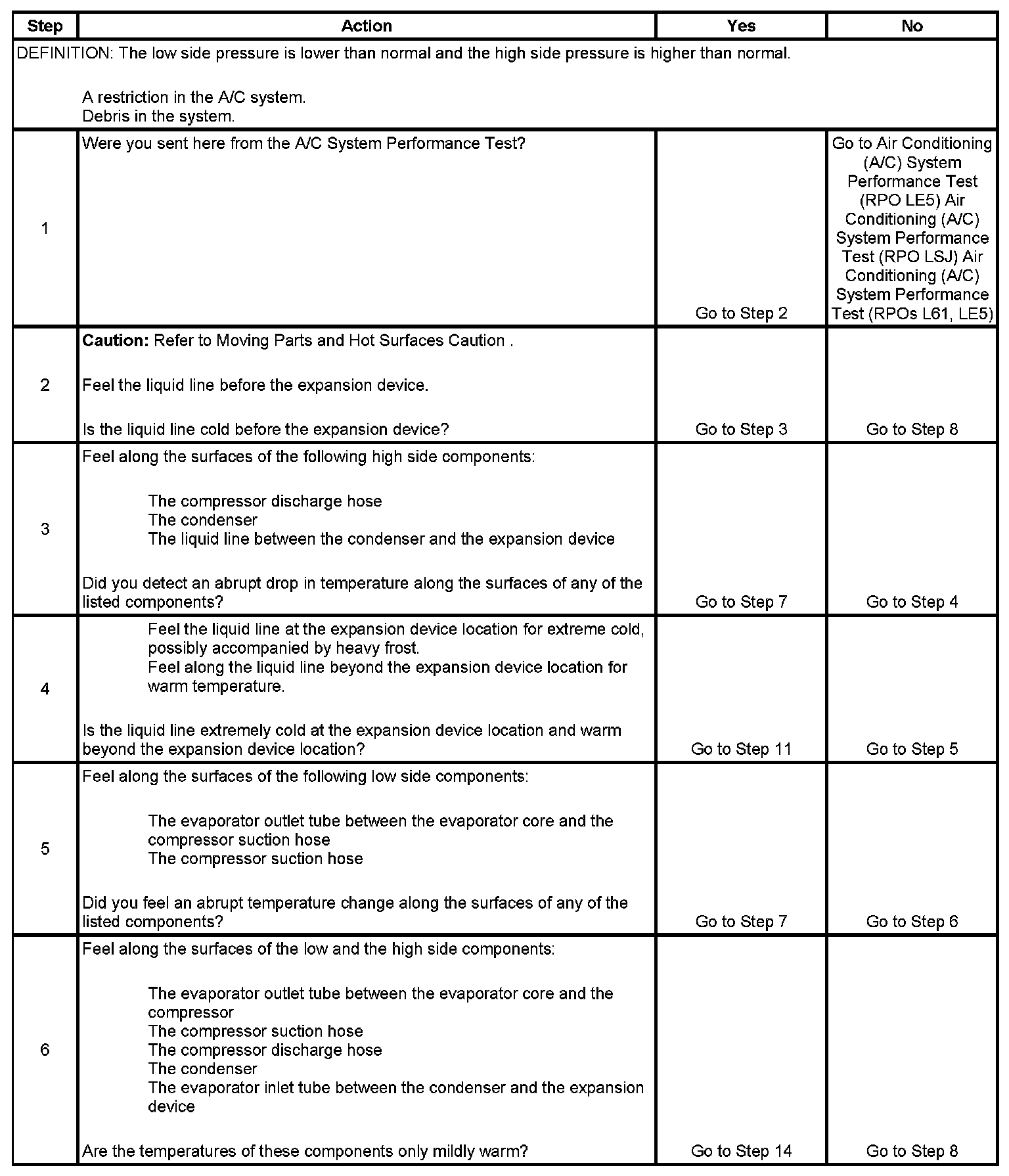

Step 1 - Step 6:

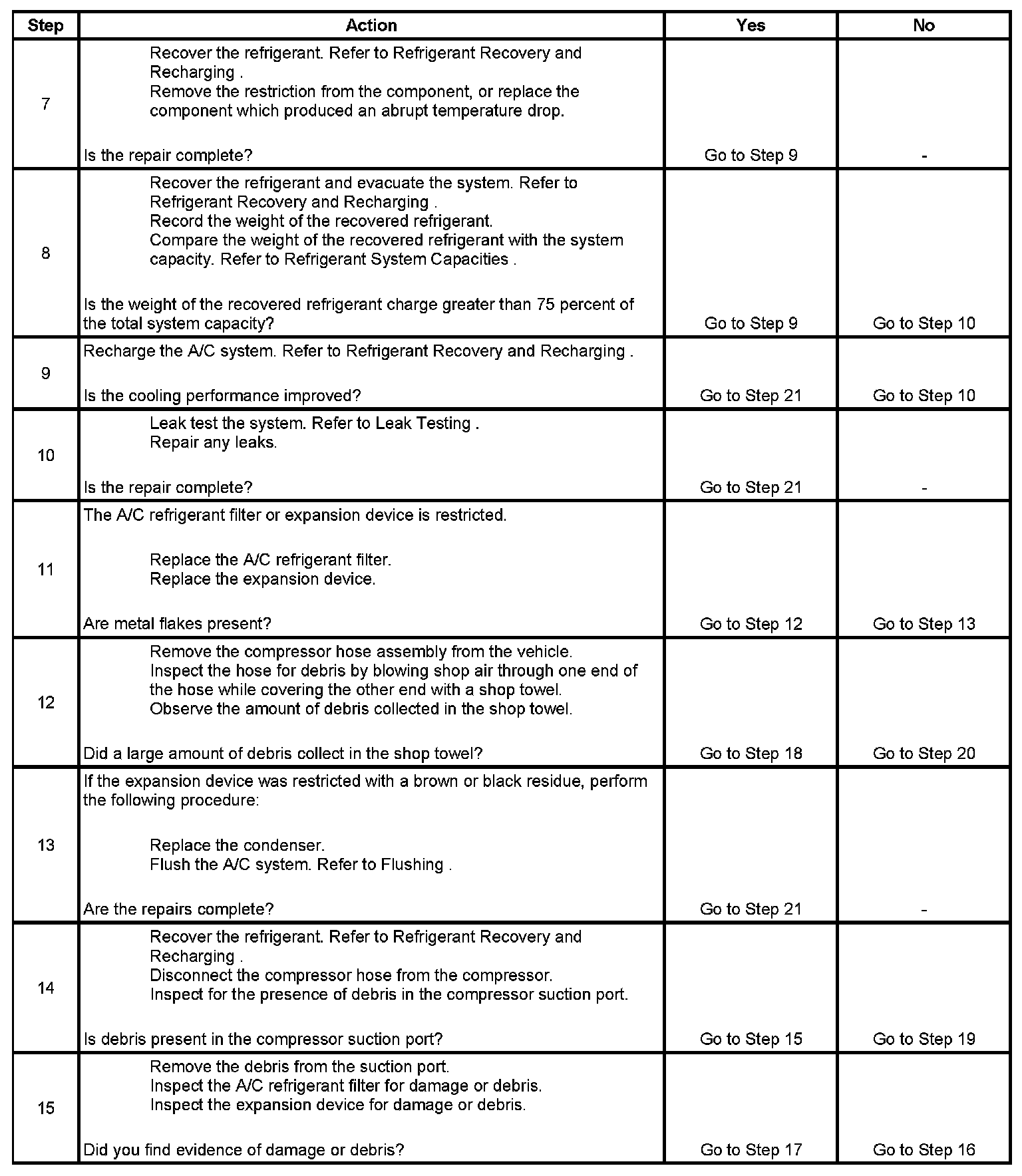

Step 7 - Step 15:




Step 16 - Step 22:
