Air Conditioning (A/C) Diagnostics - Pressure Zone C



Air Conditioning (A/C) Diagnostics - Pressure Zone C

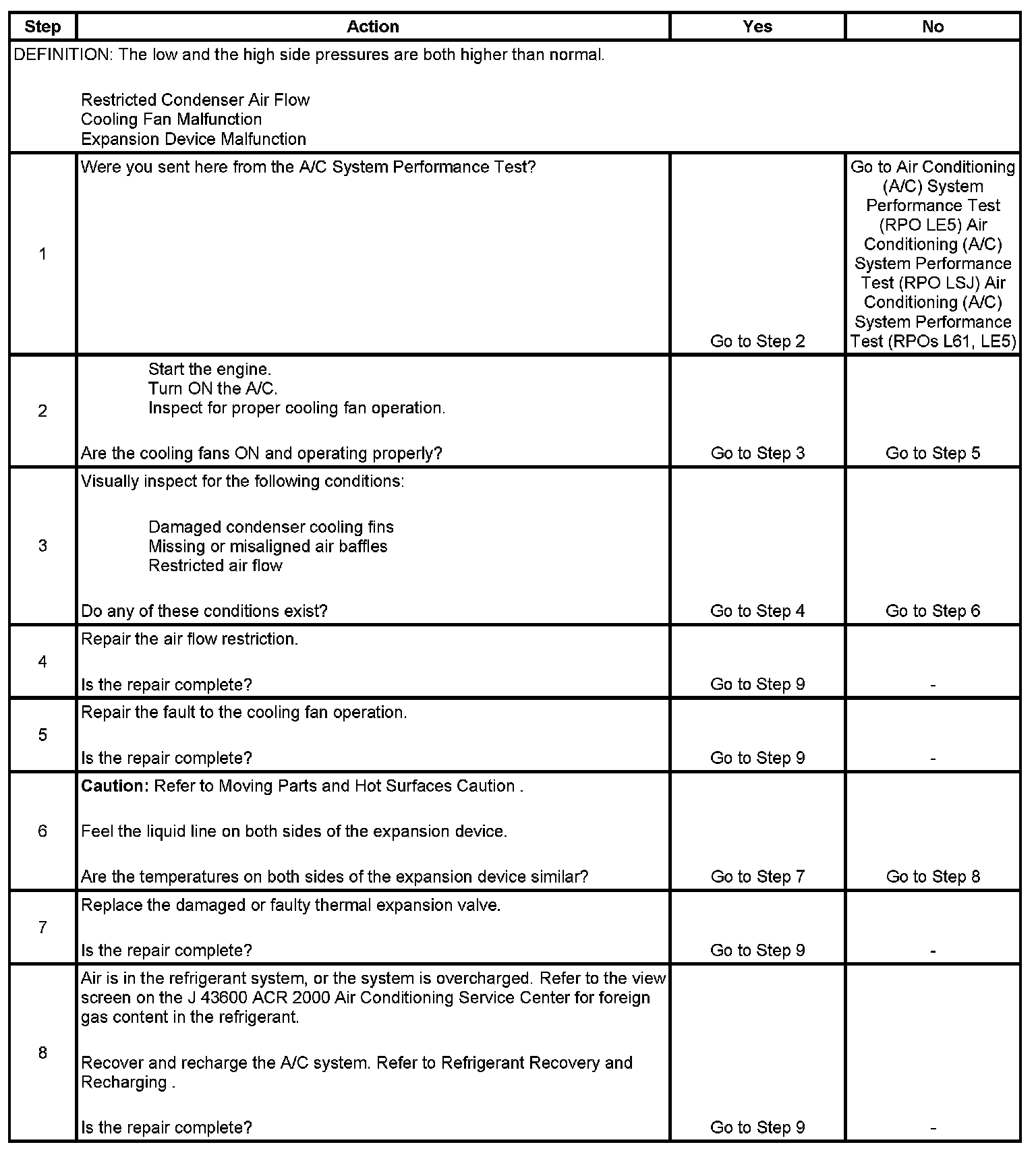

Step 1 - Step 8:

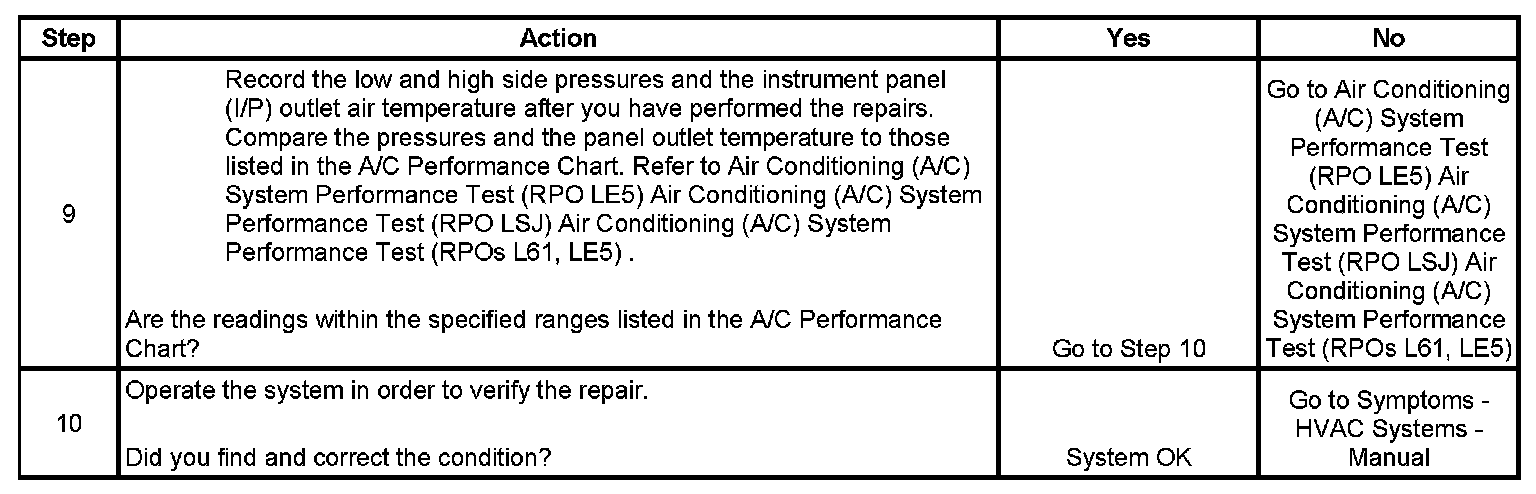

Step 9 - Step 10:
