Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Air Conditioning (A/C) Diagnostics - Pressure Zone B

Air Conditioning (A/C) Diagnostics - Pressure Zone B



Air Conditioning (A/C) Diagnostics - Pressure Zone B

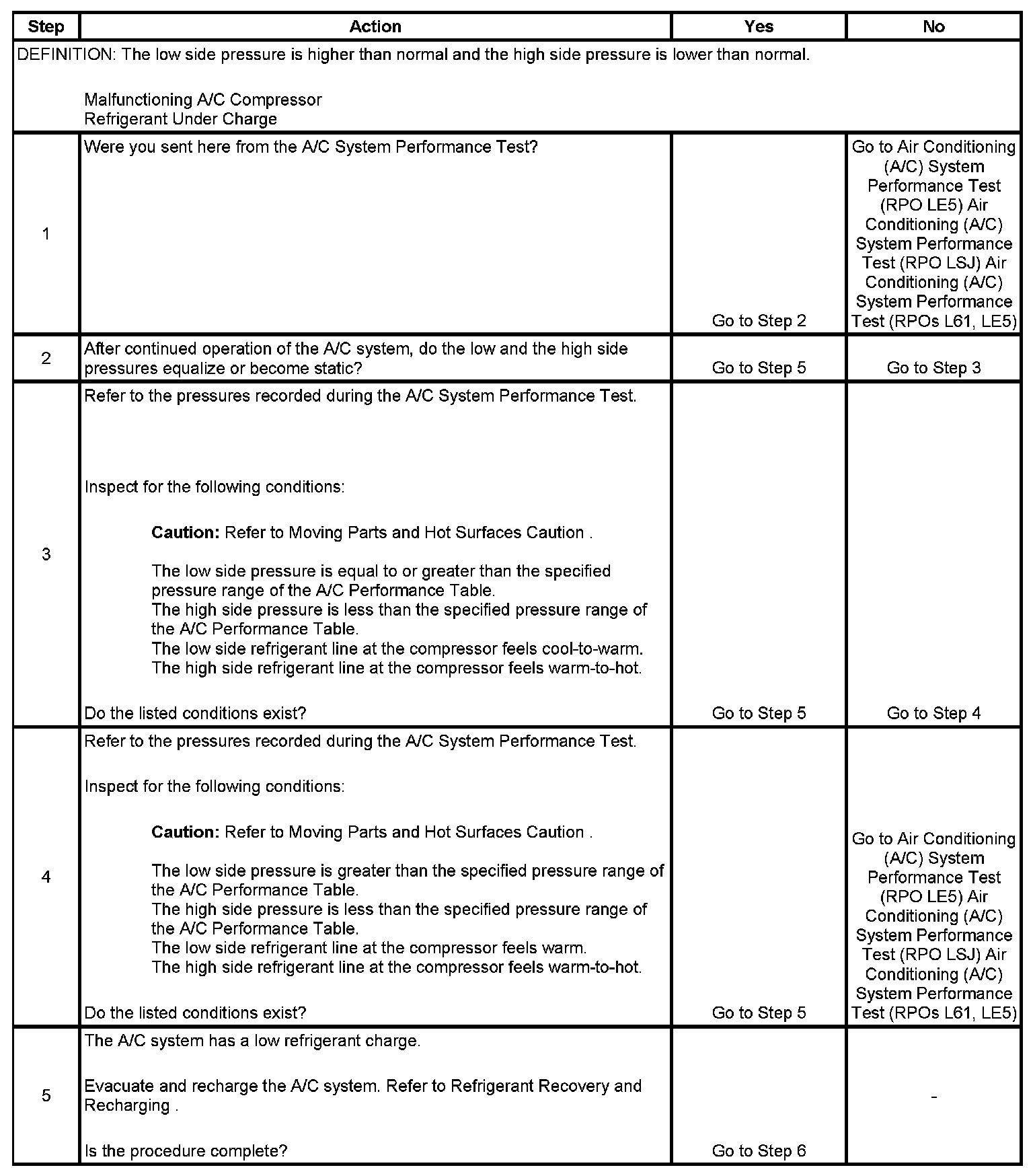

Step 1 - Step 5:

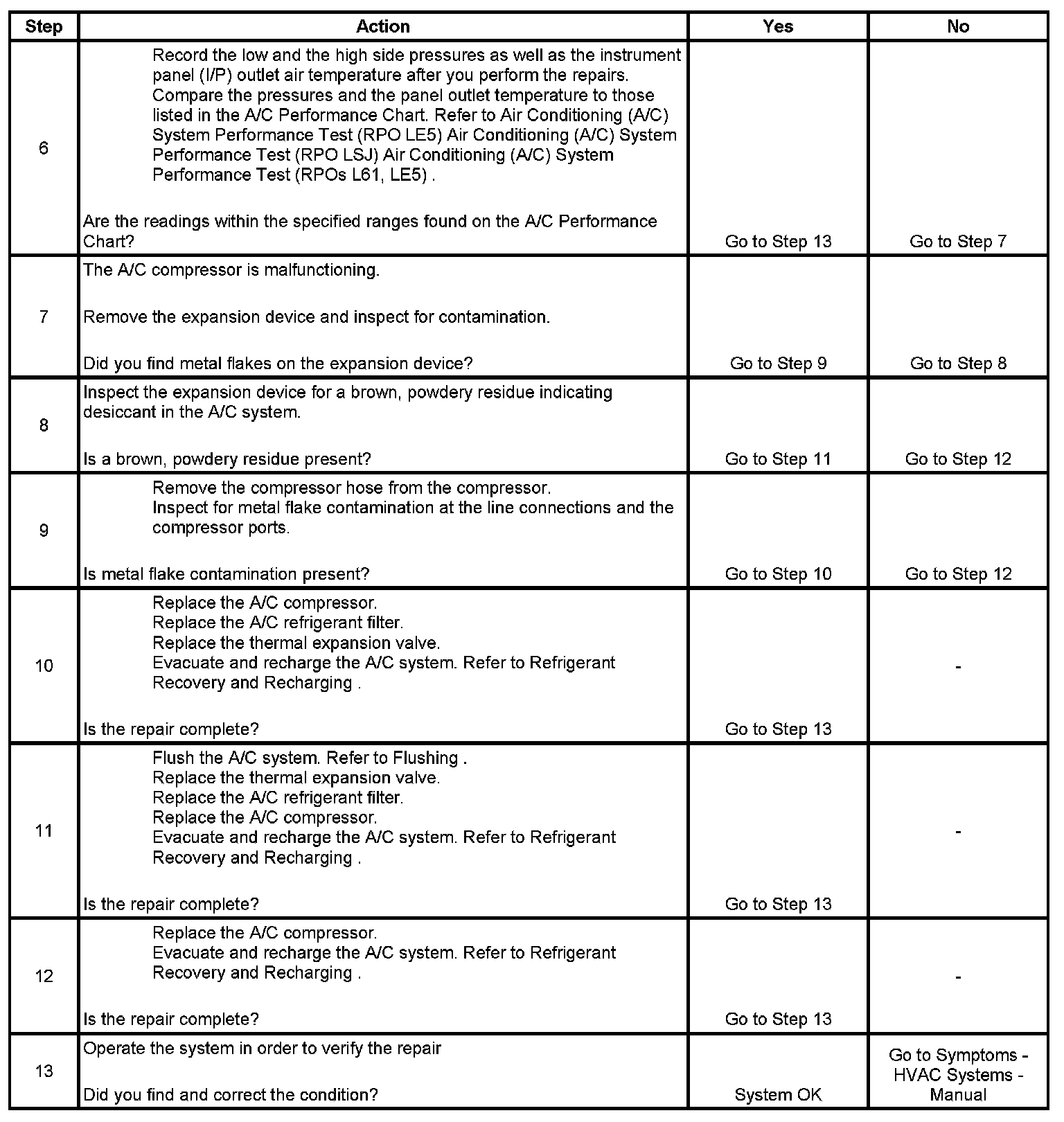

Step 6 - Step 13:
