Upper Intake Manifold Sight Shield Replacement

Upper Intake Manifold Sight Shield Replacement

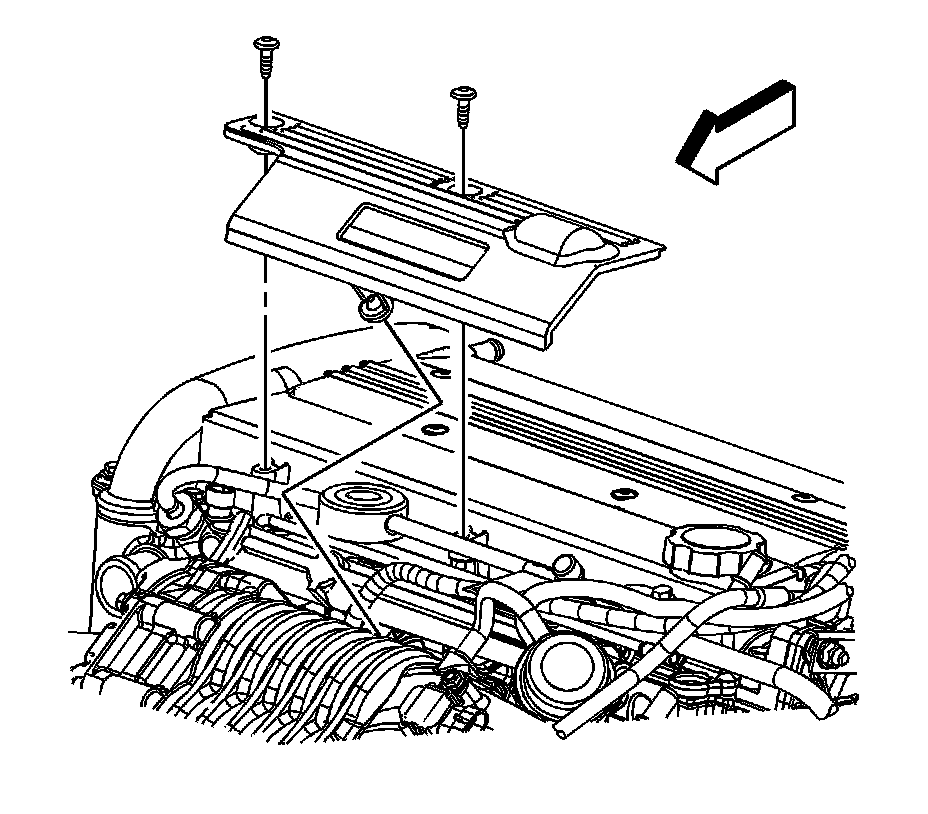

Removal Procedure




1. Remove the intake manifold sight shield screws.
2. Remove the intake manifold sight shield.

Installation Procedure




1. Install the intake manifold sight shield.

Notice: Refer to Fastener Notice.

2. Install the intake manifold sight shield screws.

Tighten the screws to 9 N.m (80 lb in).
