Oil Cooler: Service and Repair

Engine Oil Cooler Replacement

Removal Procedure

1. Drain the charged air cooling system. Refer to Draining and Filling Cooling System - Charge Air Cooling System.

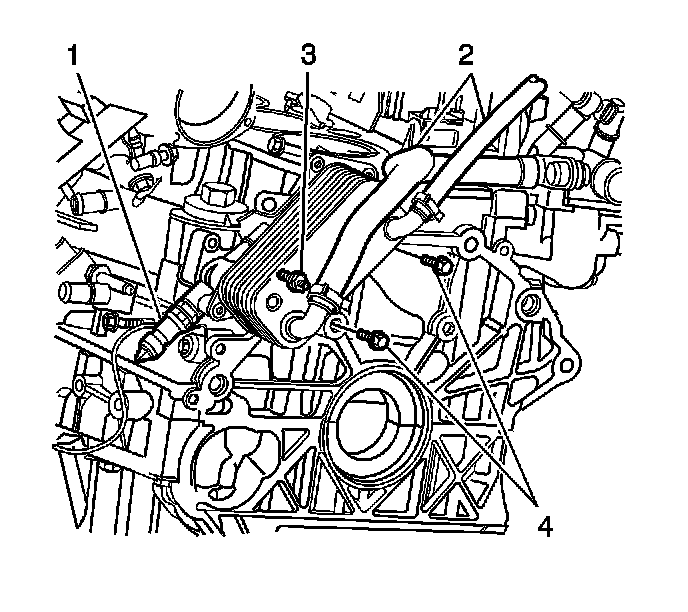

2. Remove the oil pressure sensor (1).
3. Disconnect the oil cooler hoses (2).
4. Remove the oil cooler stud (3) and the oil cooler bolts (4).
5. Remove the oil cooler.

Installation Procedure




1. Install the oil cooler.

Notice: Refer to Fastener Notice.

2. Install the oil cooler bolts (4) and stud (3).

Tighten the bolts and stud to 22 N.m (16 lb ft).

3. Connect the oil cooler hoses (2).
4. Install the oil pressure sensor (1).

Tighten the sensor to 22 N.m (16 lb ft).

5. Fill the charged air cooling system. Refer to Draining and Filling Cooling System - Charge Air Cooling System.
