Chevrolet
>>
2007
>>
Cobalt L4-2.0L SC
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Loss of Coolant
Loss of Coolant
Loss of Coolant

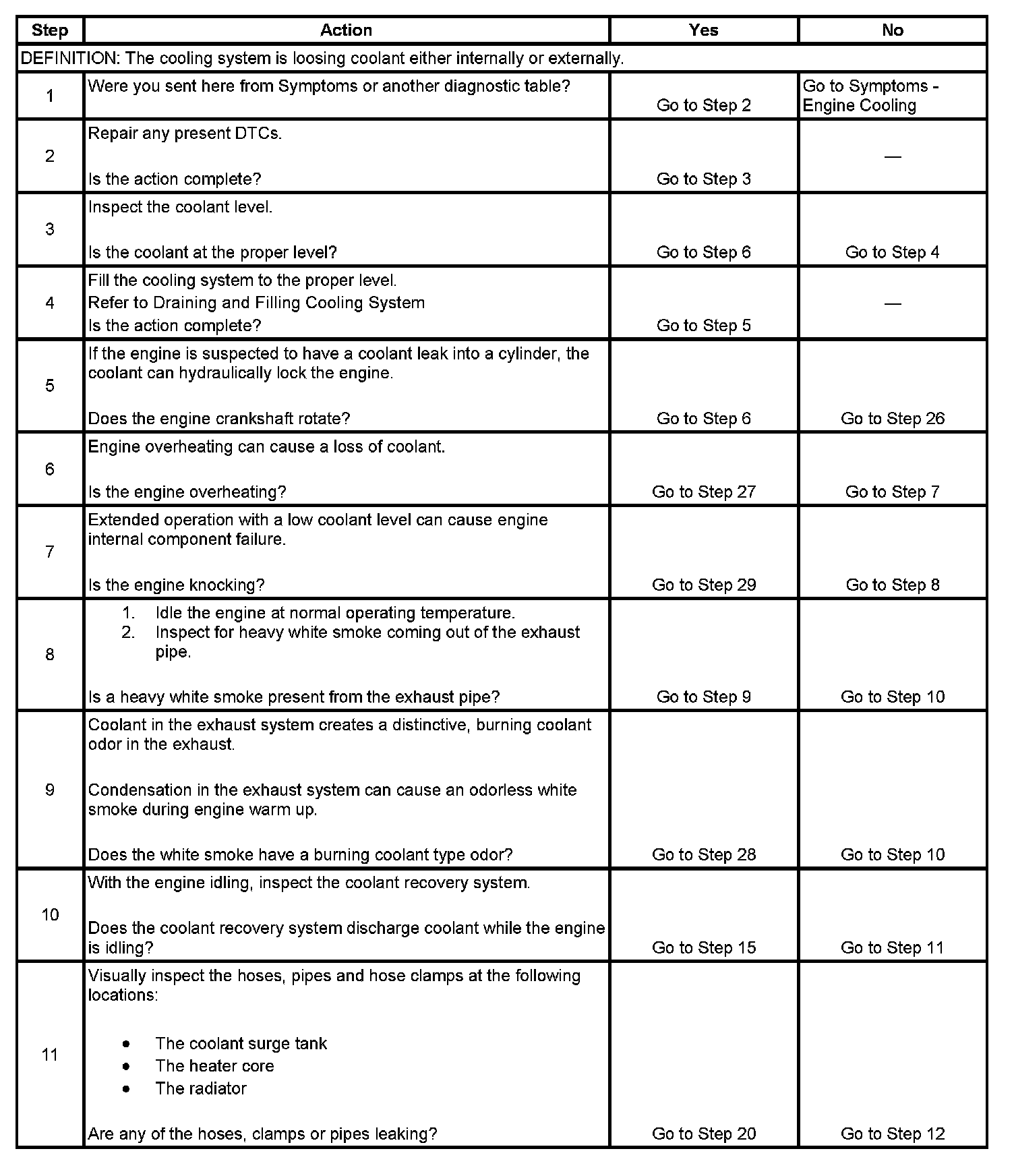

Step 1 - 11:

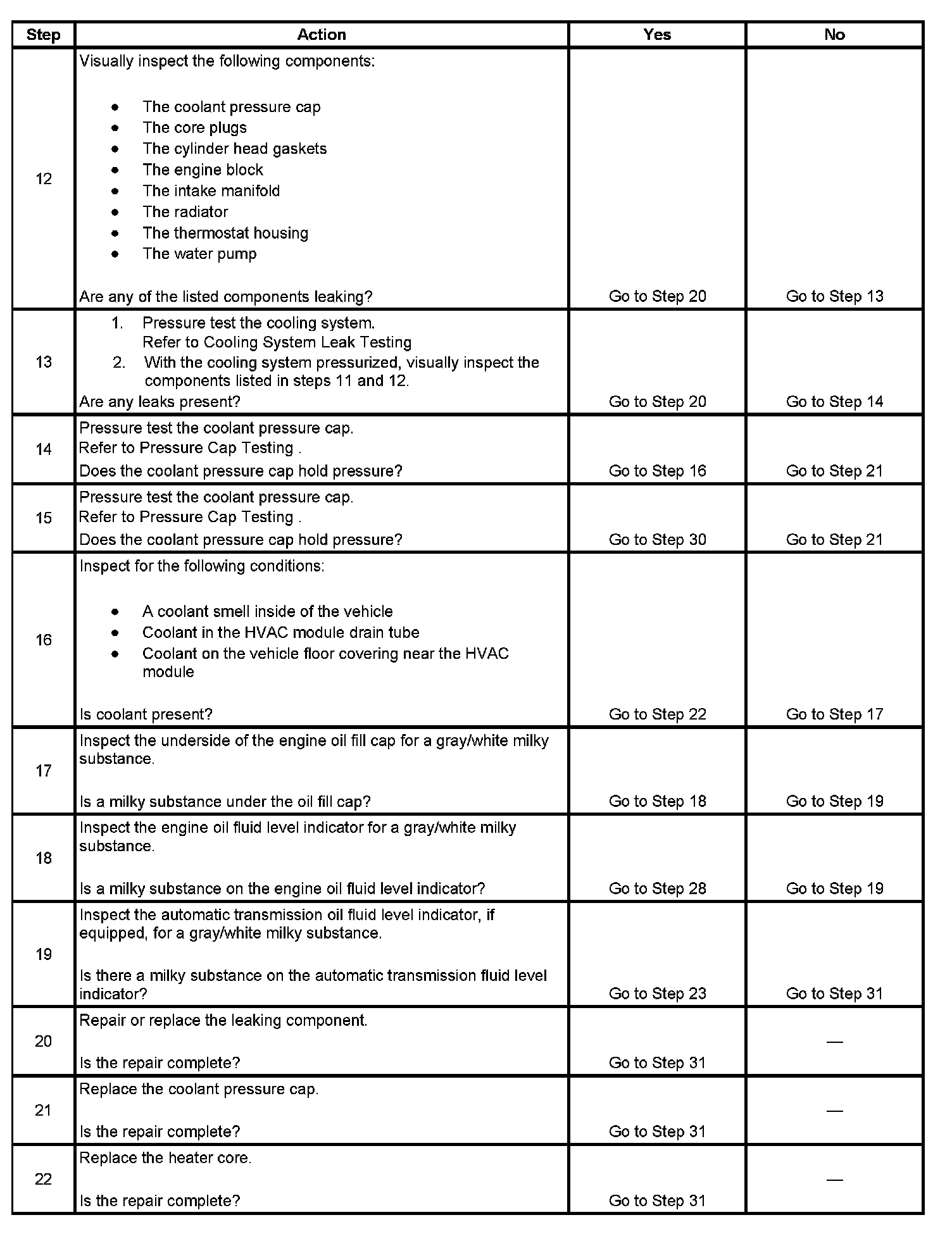

Step 12 - 22:

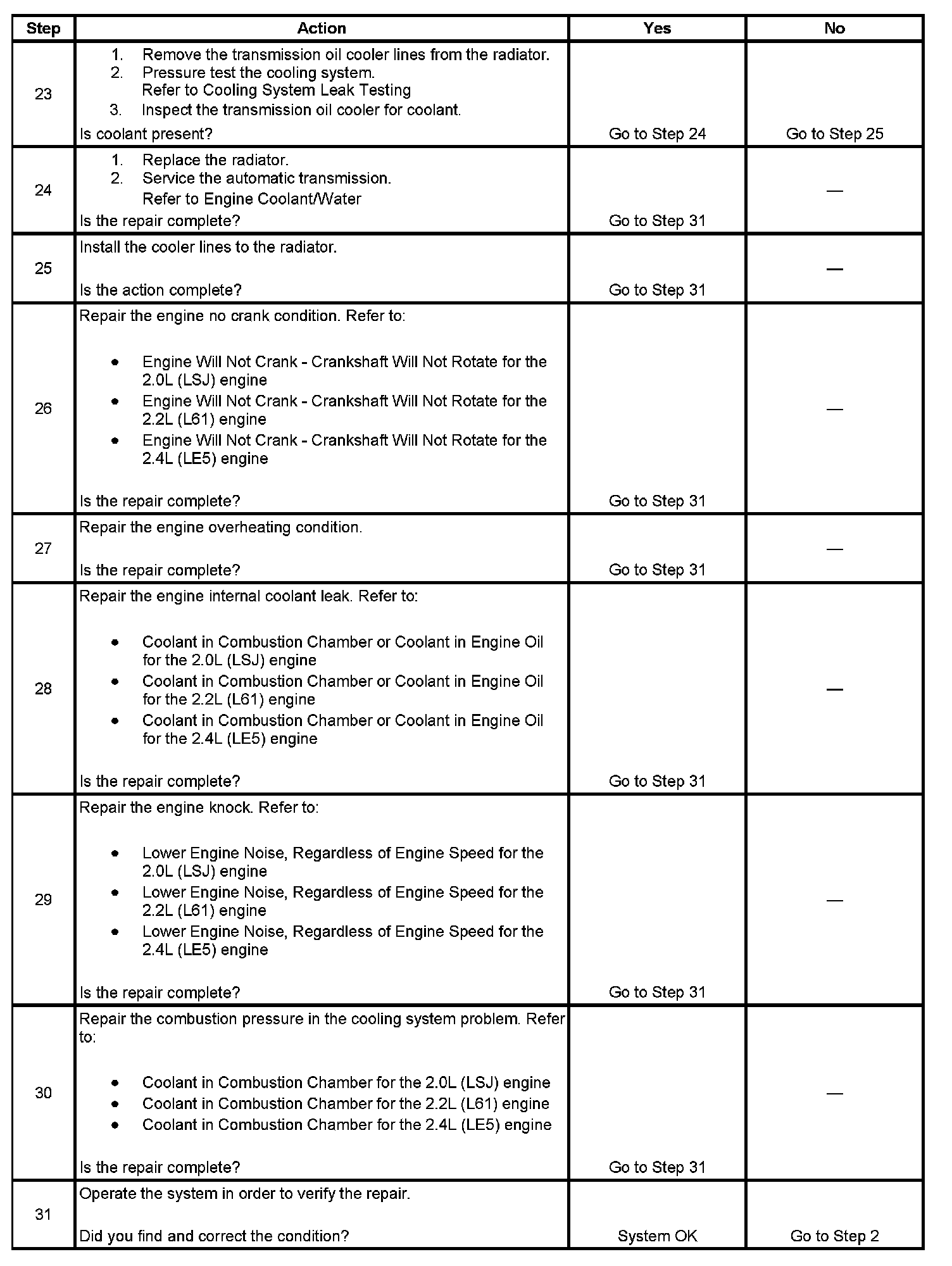

Step 23 - 31:
