Supercharger Coolant Pump: Diagrams

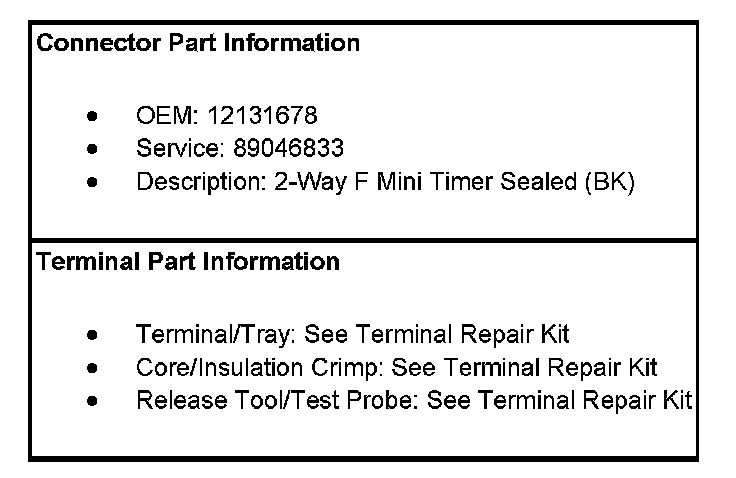

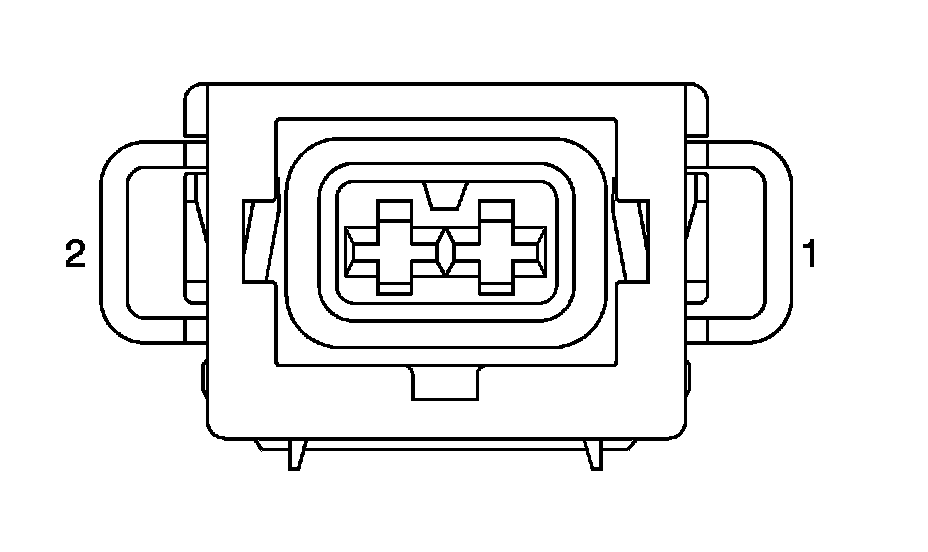

Engine Controls Connector End Views

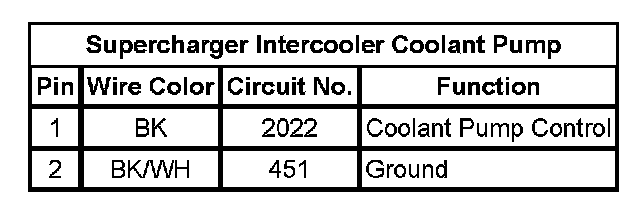

Supercharger Intercooler Coolant Pump
