Radiator Cooling Fan Resistor: Locations

Cooling System Component Views

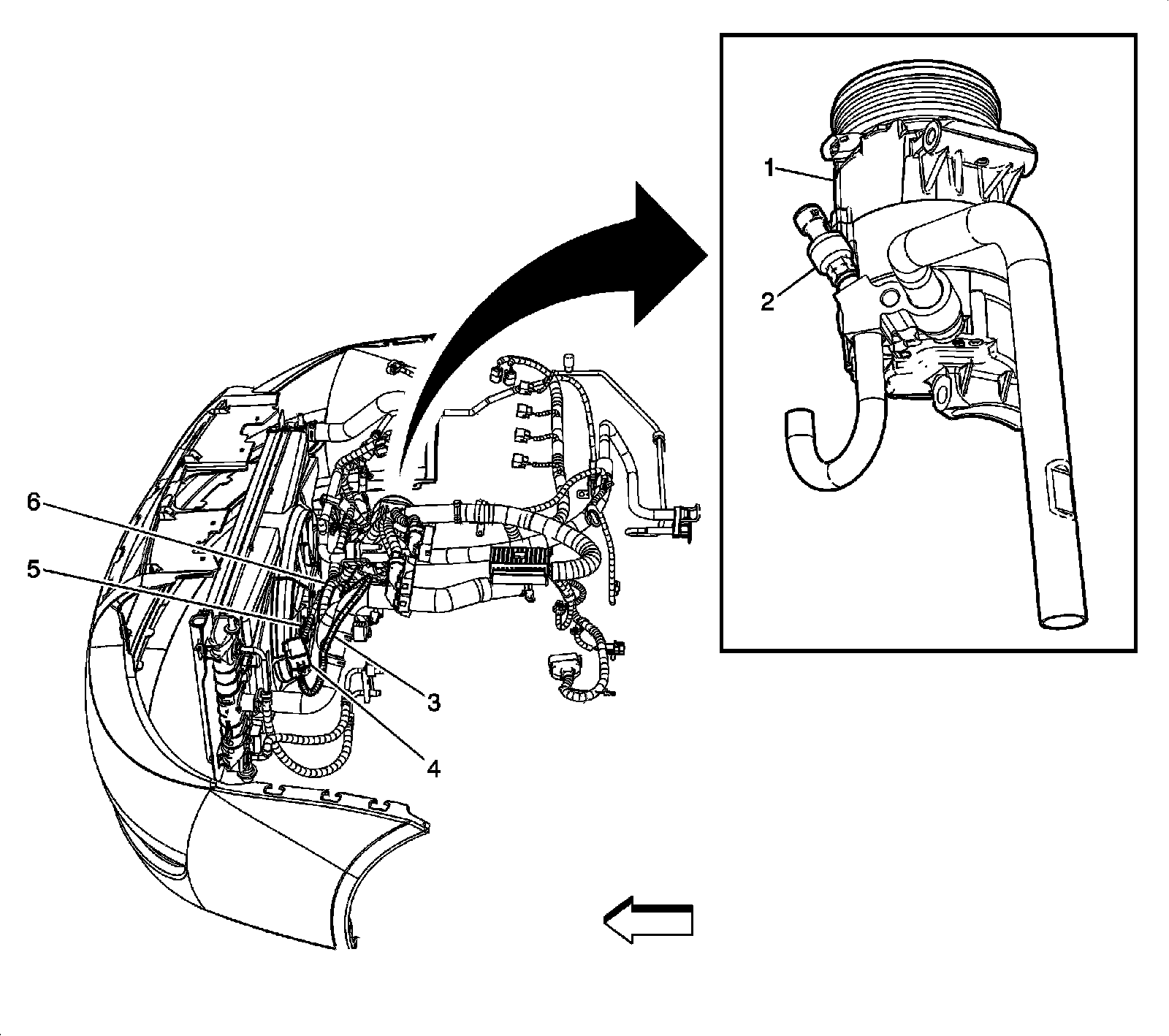

Front of Engine Compartment View

1 - A/C Compressor
2 - A/C Refrigerant Pressure Sensor
3 - Cooling Fan Resistor
4 - Cooling Fan 2 Relay
5 - Cooling Fan Connector
6 - Engine Harness
