Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Harness >> Headliner Harness Views >> Headliner Harness (Without RPO Code CF5)

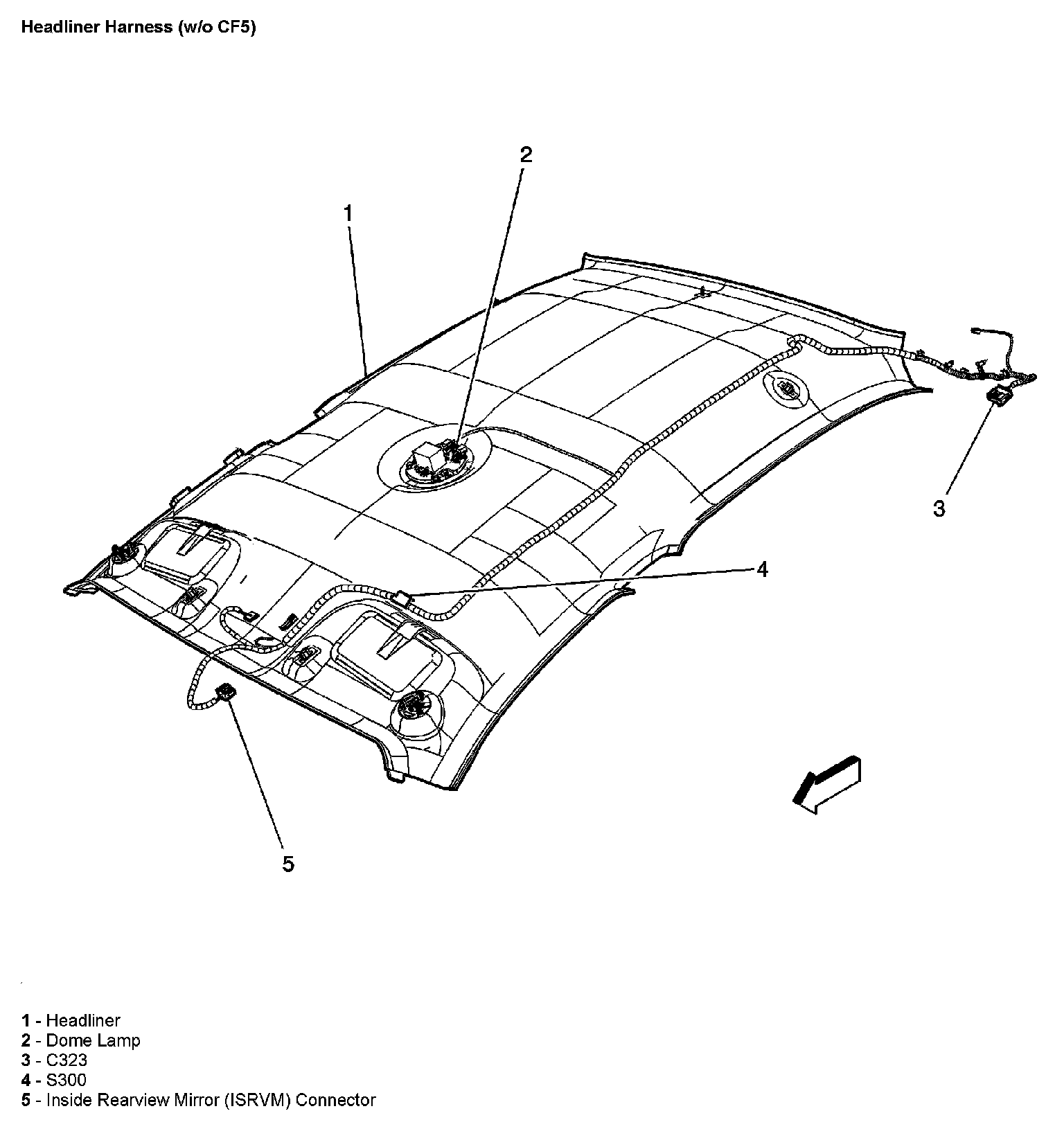

Headliner Harness (Without RPO Code CF5)

Headliner Harness (Without RPO Code CF5):
