Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Harness >> Body Views >> Body Harness - Passenger Compartment

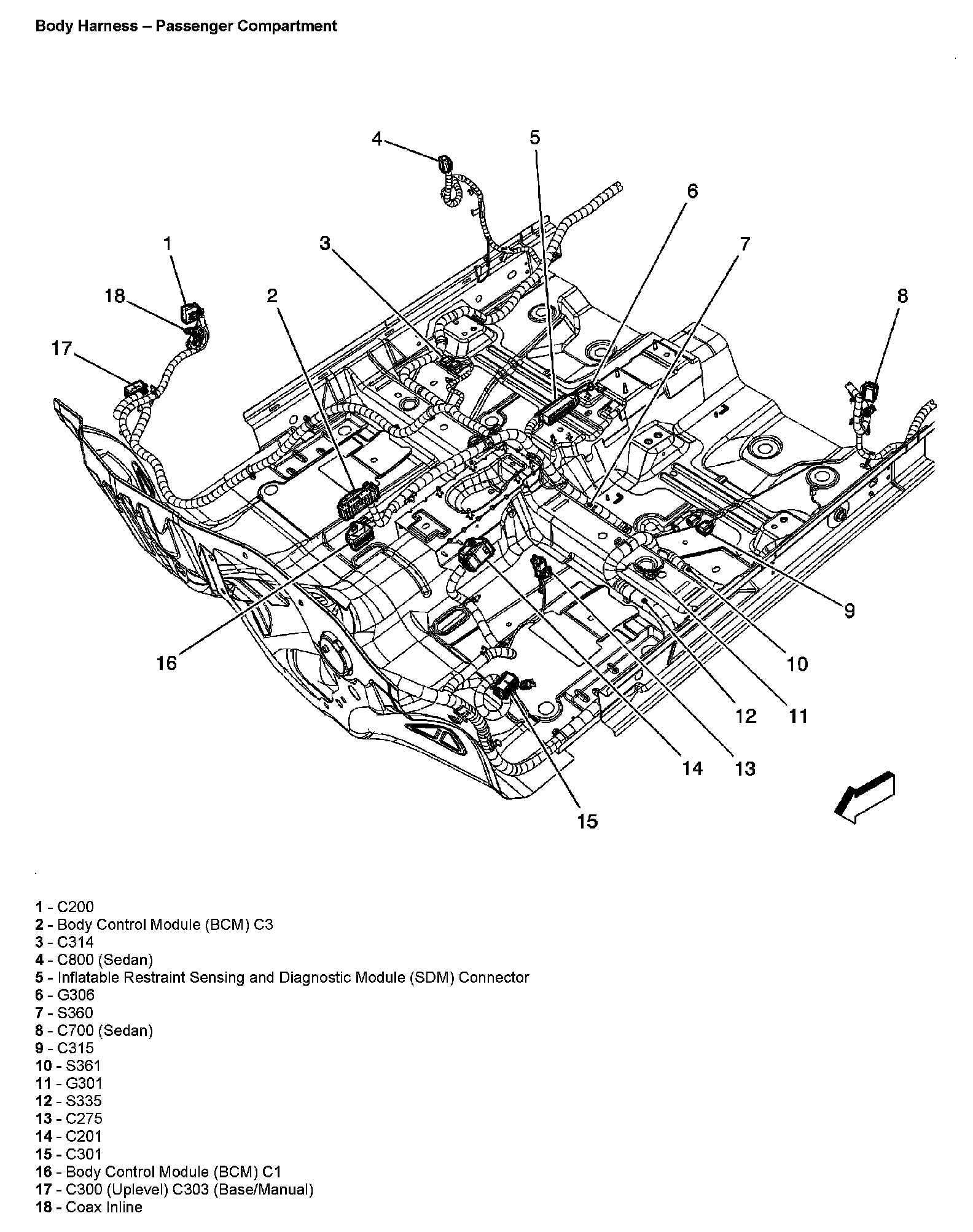

Body Harness - Passenger Compartment

Body Harness - Passenger Compartment:
