Body Harness - Engine Compartment
Body Harness - Engine Compartment

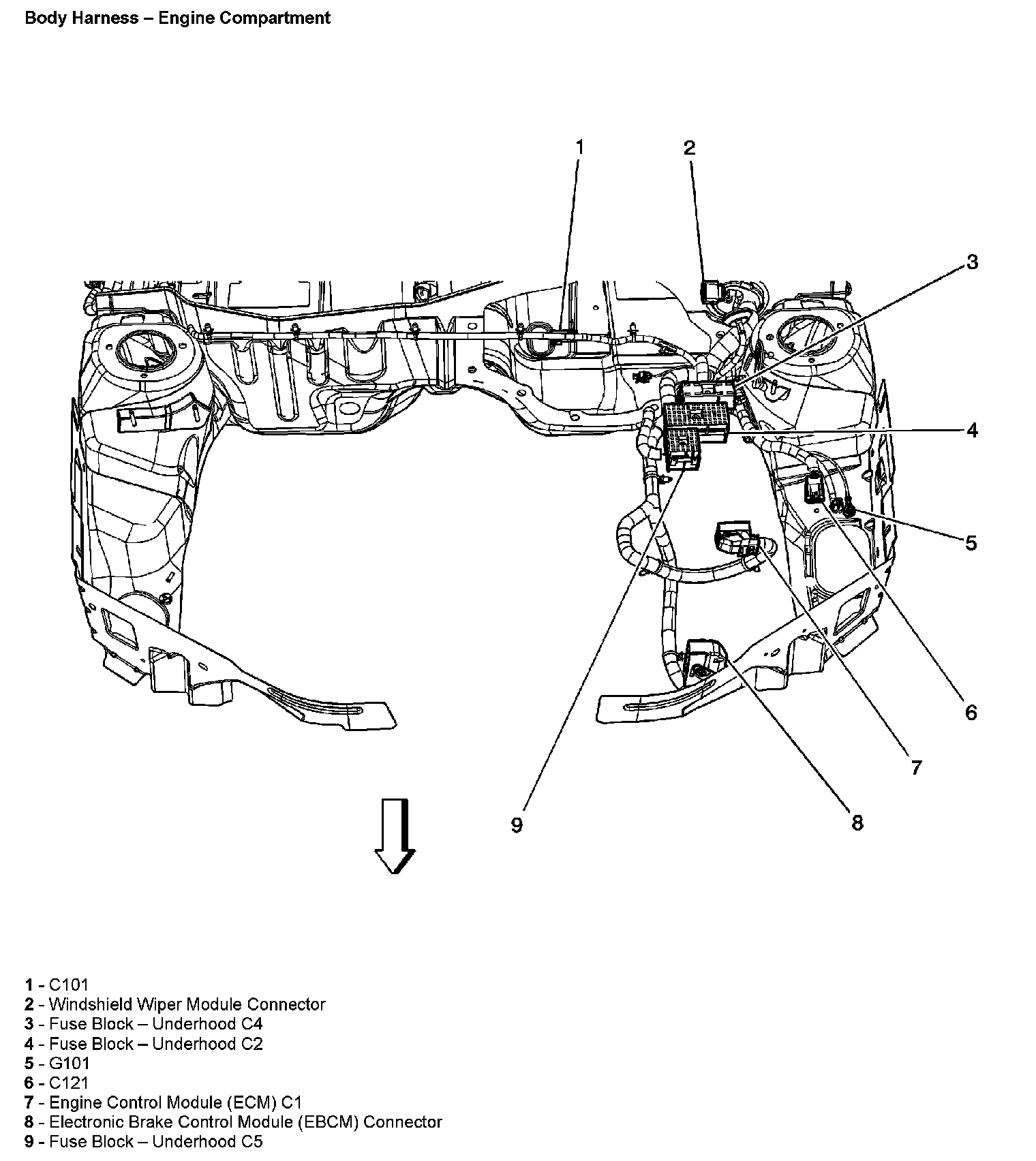

Body Harness - Engine Compartment:
