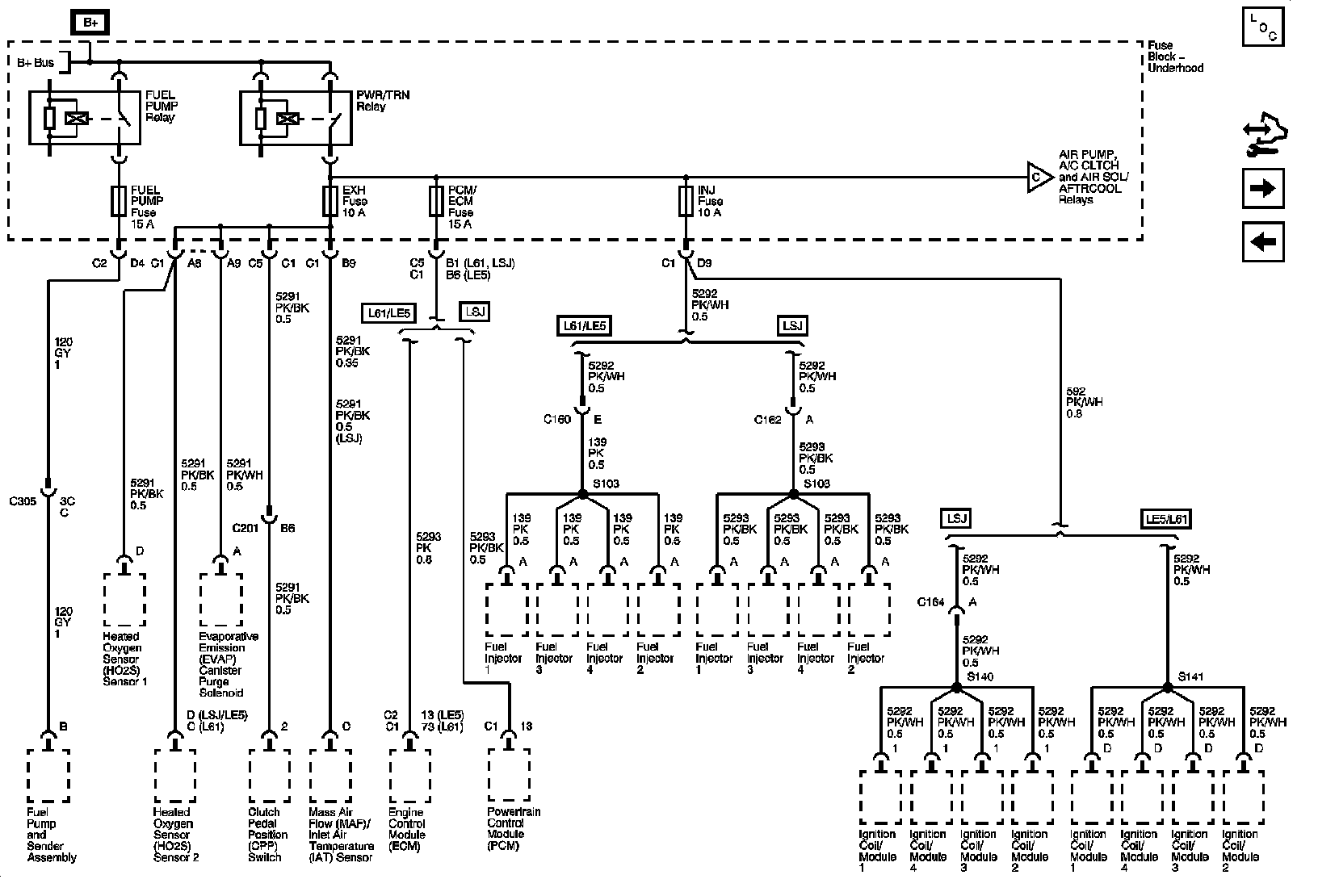

Power Distribution Diagram 5










Next Diagram: Power Distribution Diagram 6

Previous Diagram: Power Distribution Diagram 4

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
