Cooling System
>>
System Diagram
System Diagram
Engine Cooling Schematics
L61

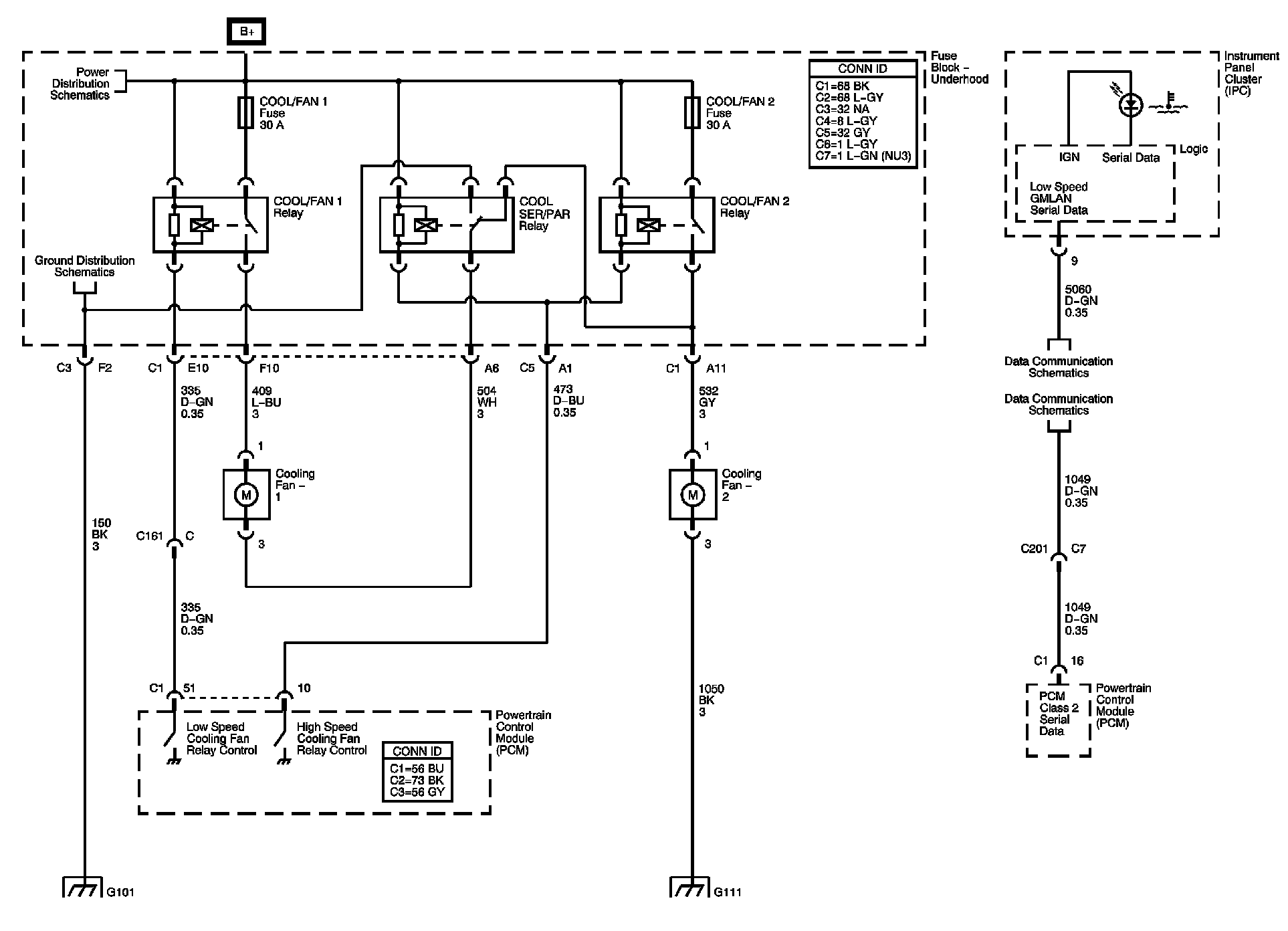

Engine Cooling Schematics 1:
LSJ

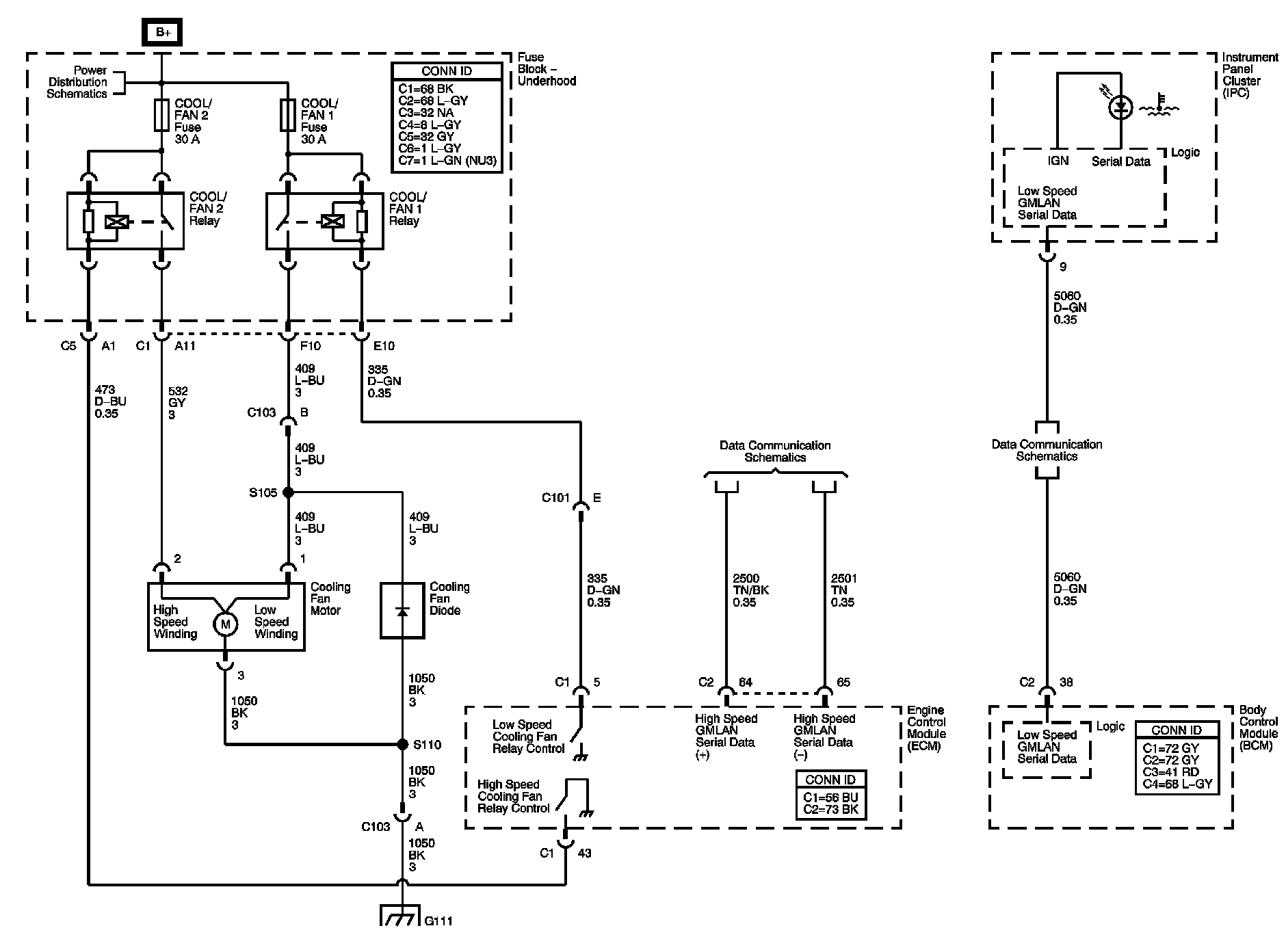

Engine Cooling Schematics 2:
LE5

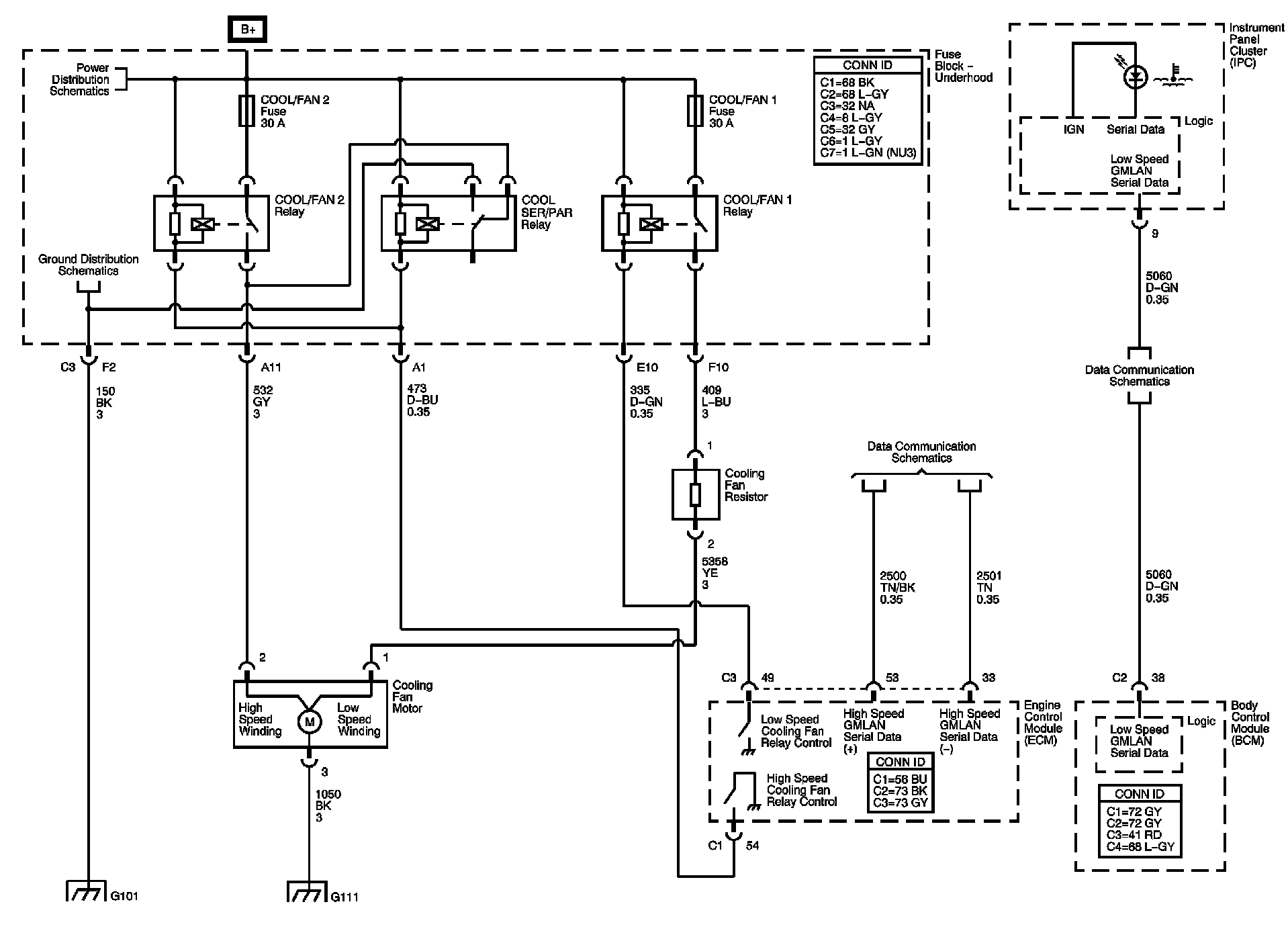

Engine Cooling Schematics 3:
