Antilock Brake System Schematics



Antilock Brake System Schematics

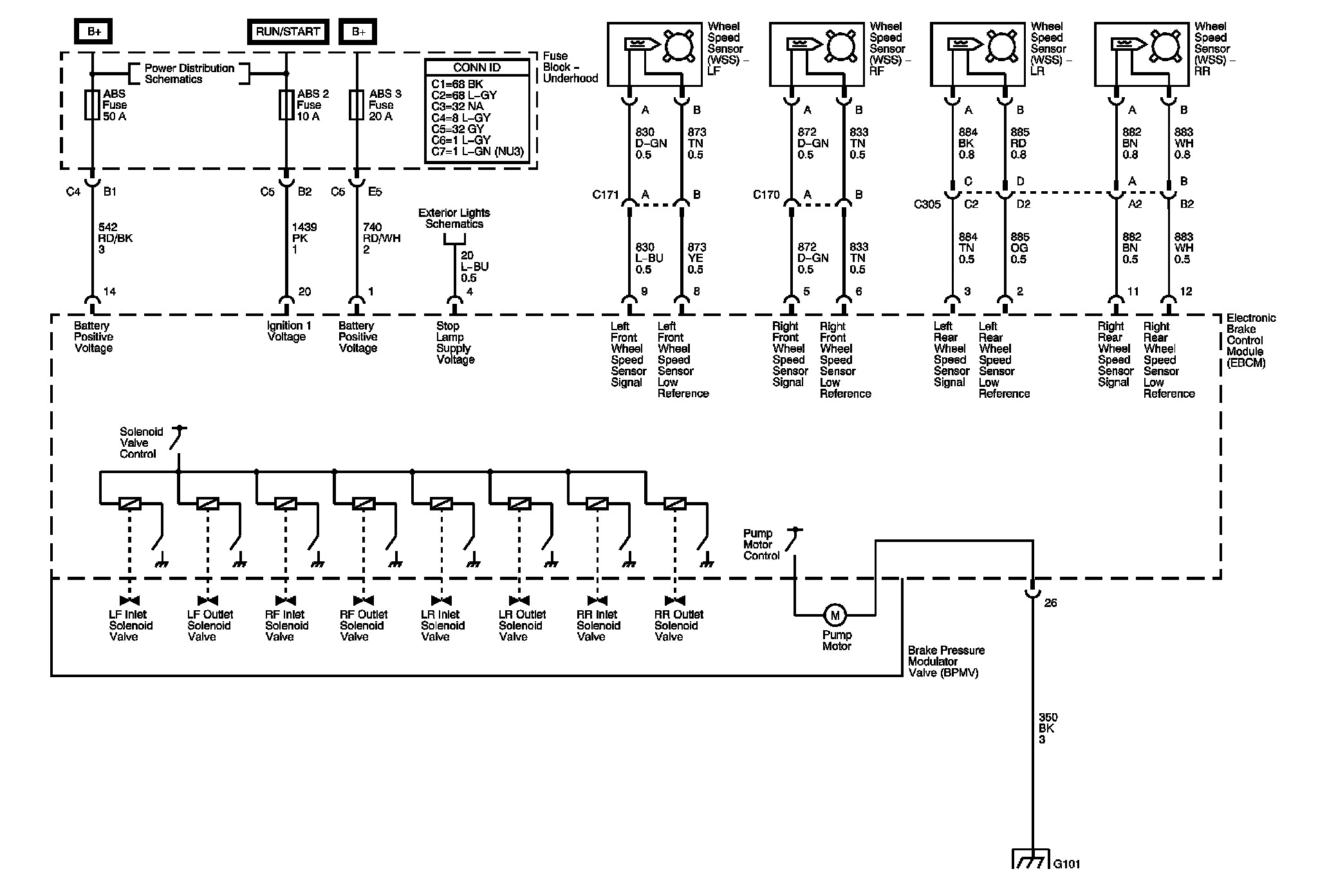

Power, Ground, Wheel Speed Sensors

Antilock Brake System Schematics 1:





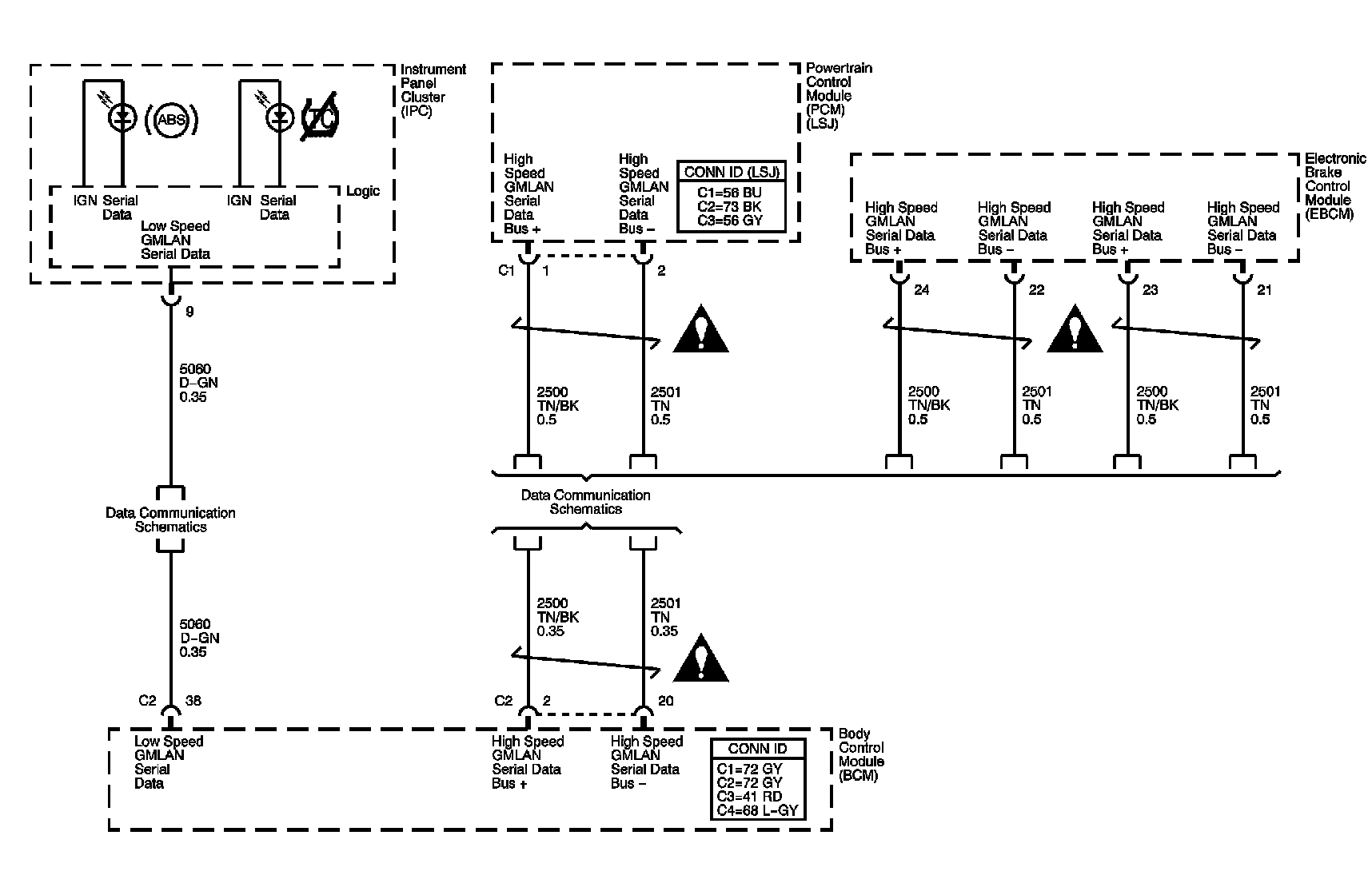

Indicators

Antilock Brake System Schematics 2:
