Radio/Navigation System Schematics

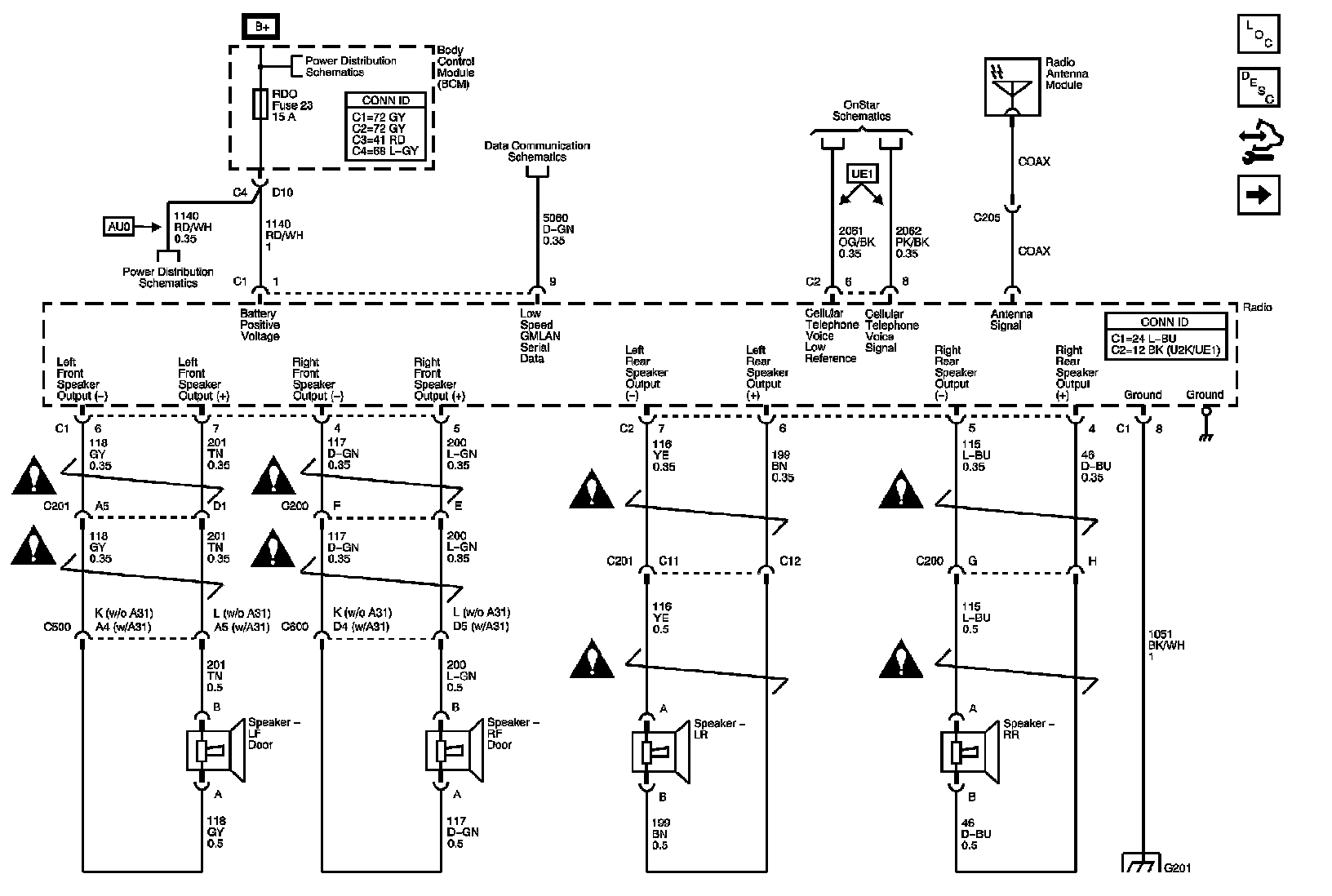

Radio (UQ4):





Power, Ground, Communication (UQ3):

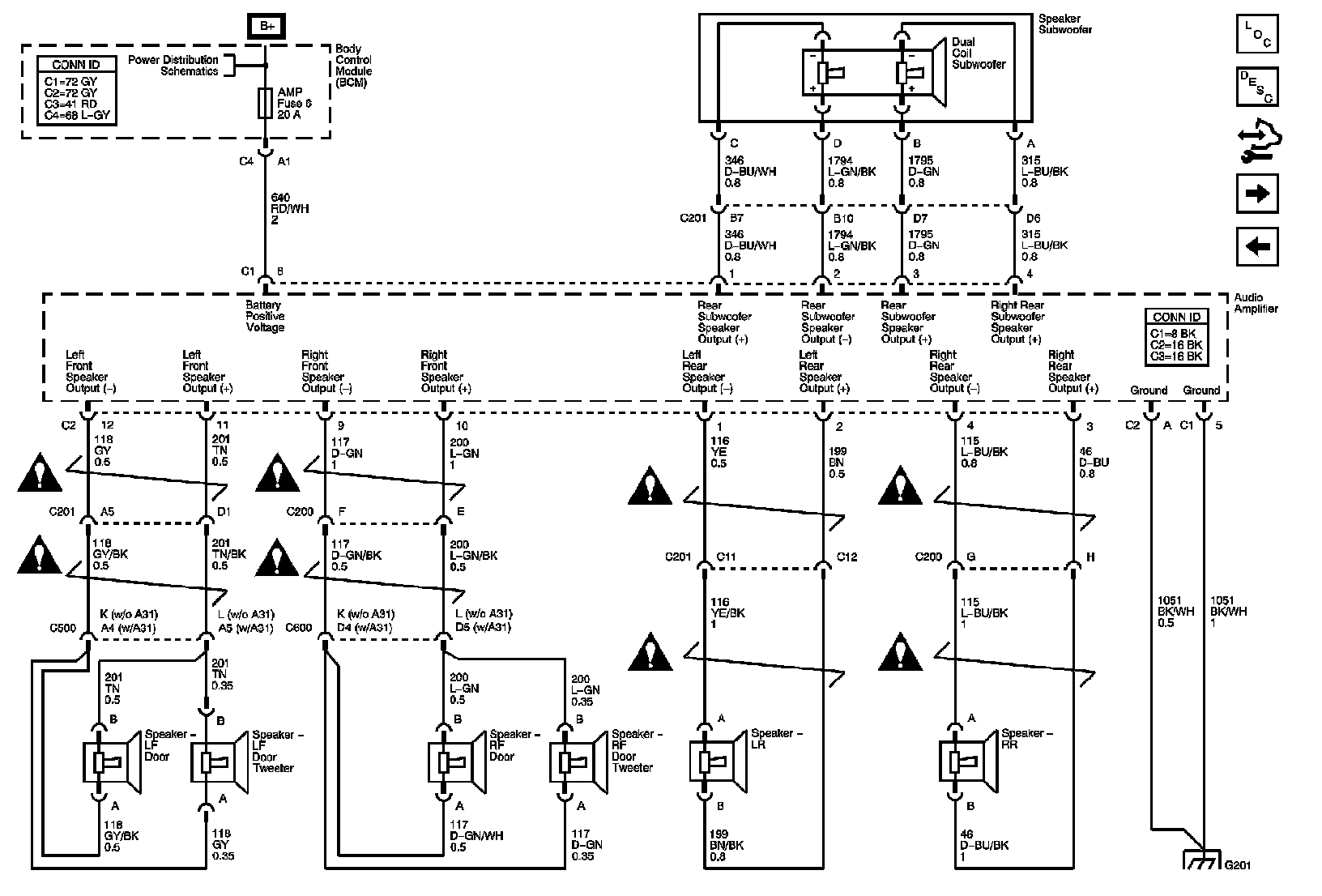

Amplifier, Speakers (UQ3):

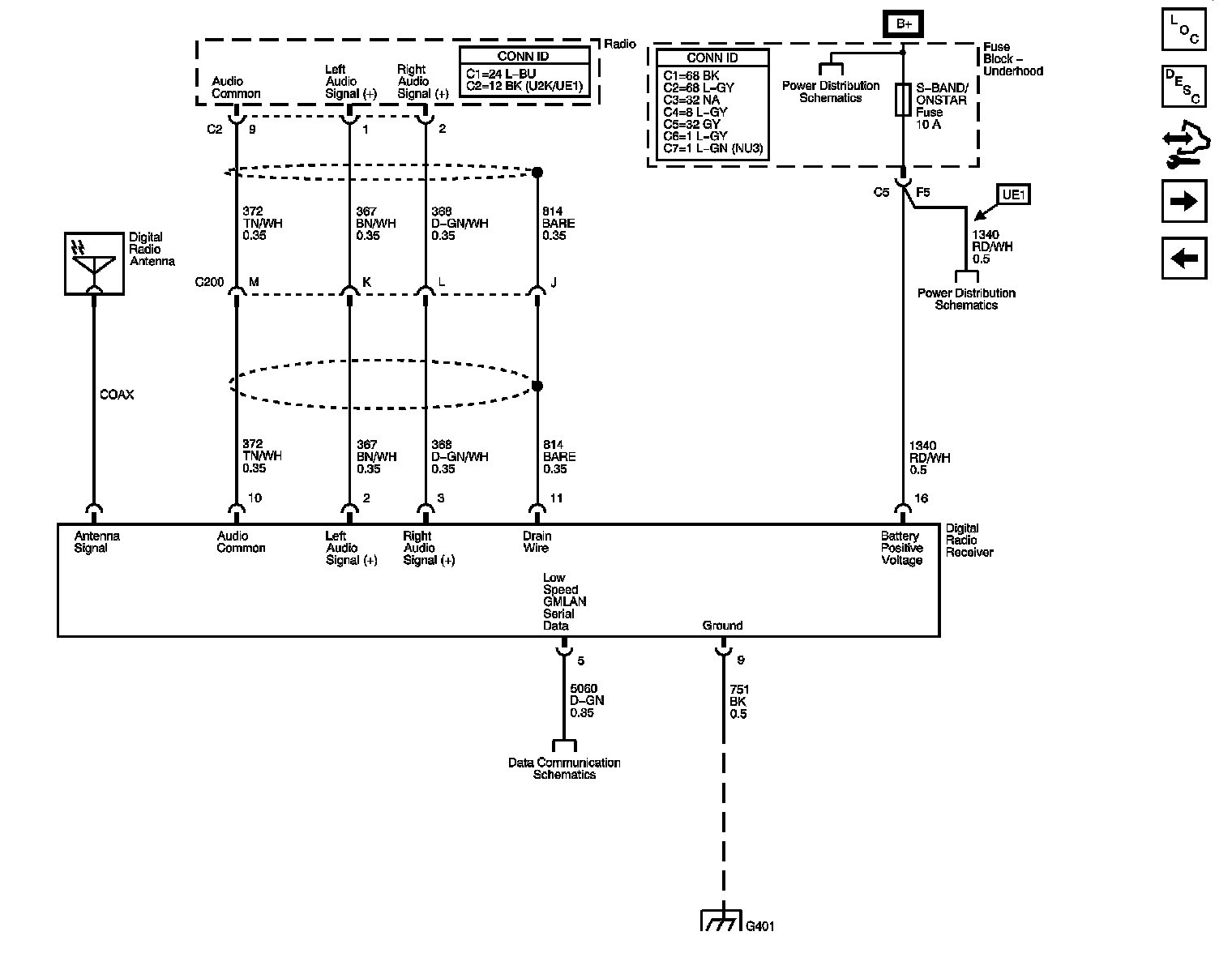

Digital Radio Receiver (U2K):

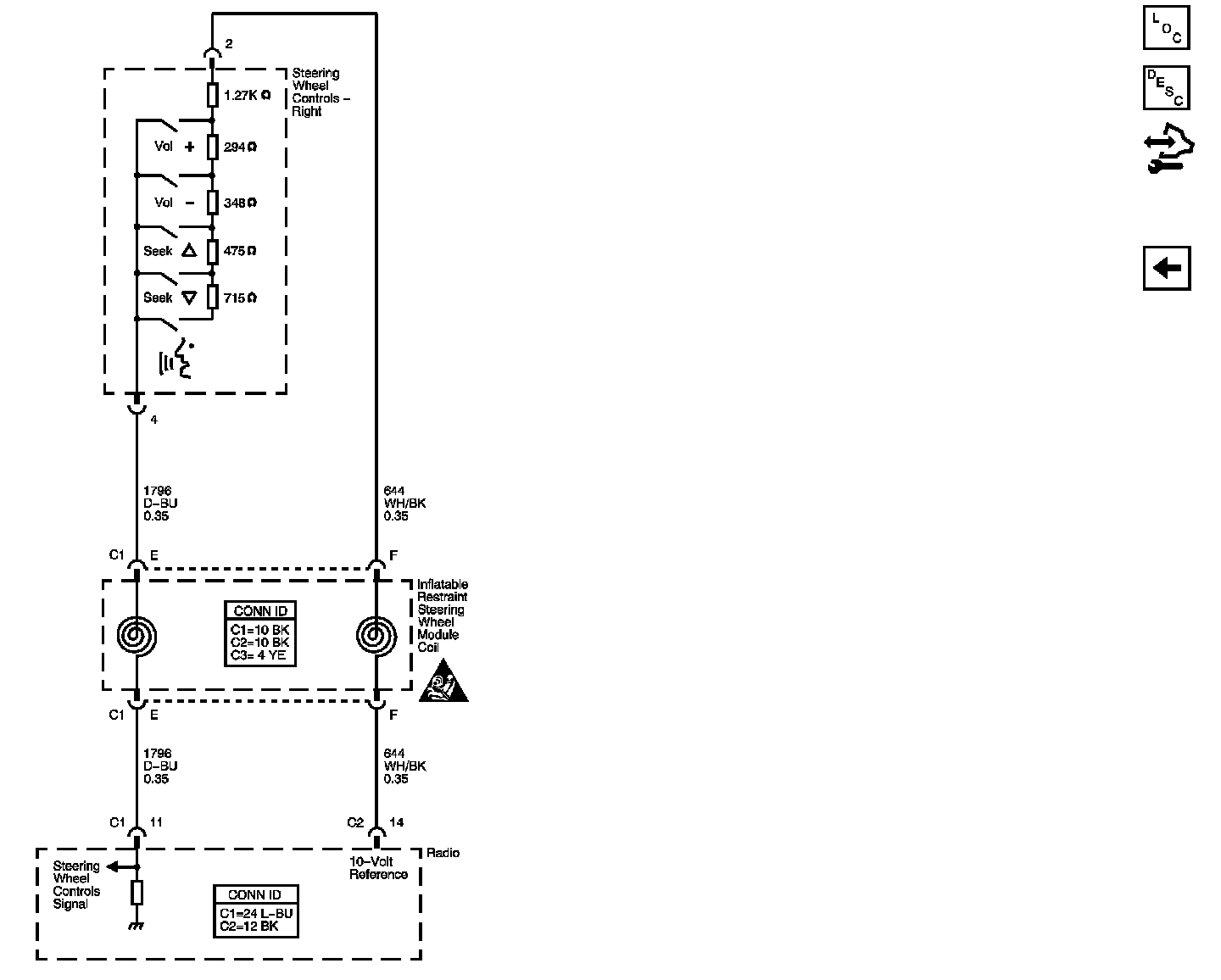

Redundant Radio Controls:
