Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering >> System Diagram

System Diagram



Power Steering Connector End Views

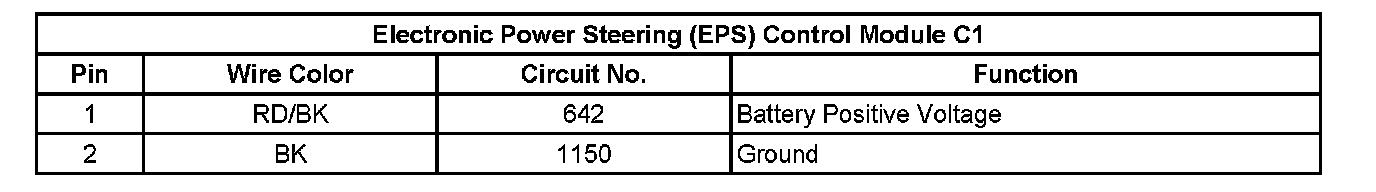

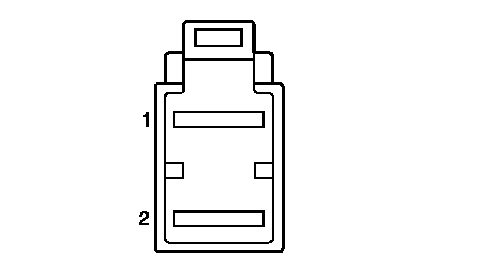

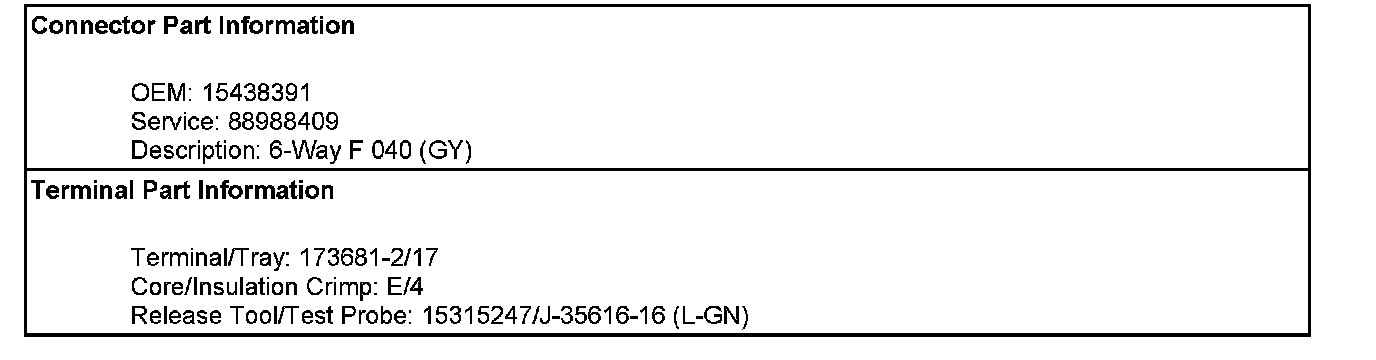

Electronic Power Steering (EPS) Control Module C1

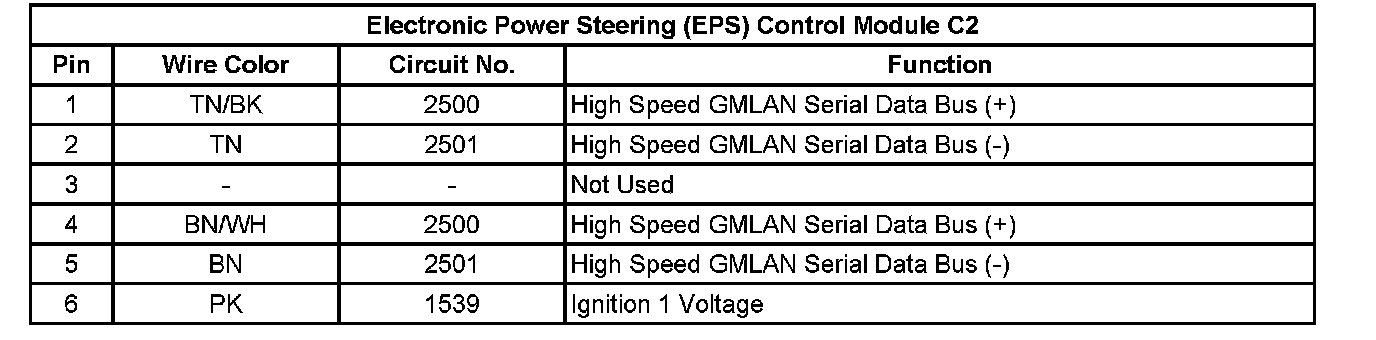

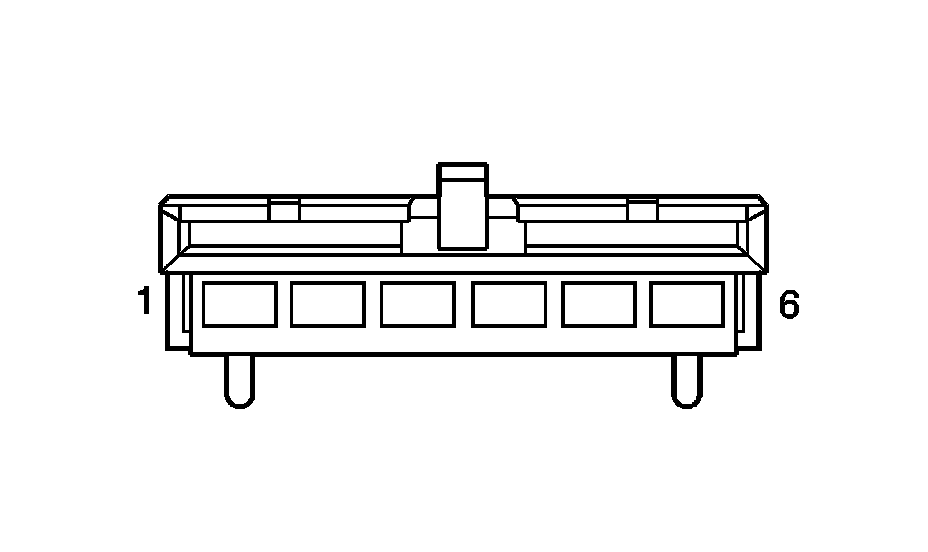

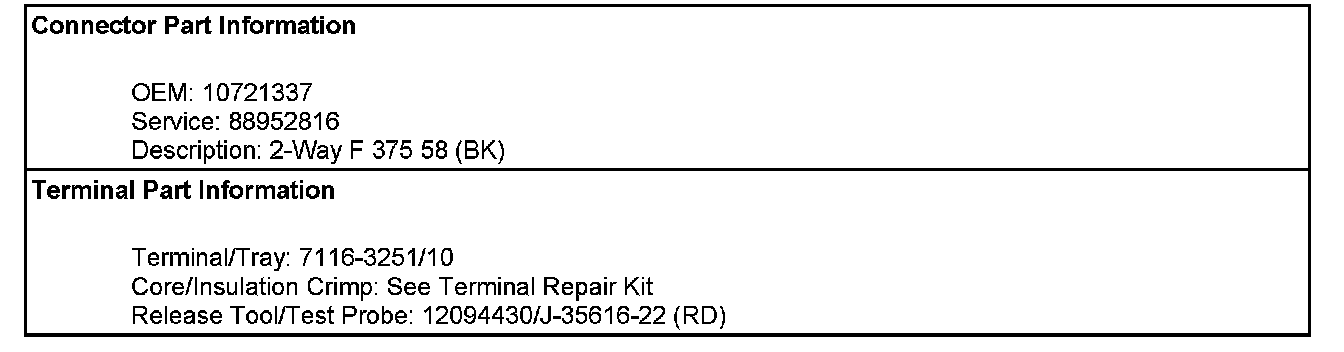

Electronic Power Steering (EPS) Control Module C2
