System Diagram



Engine Electrical Connector End Views

Battery Current Sensor

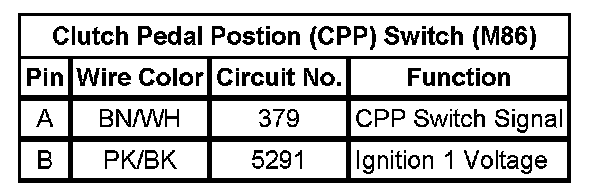

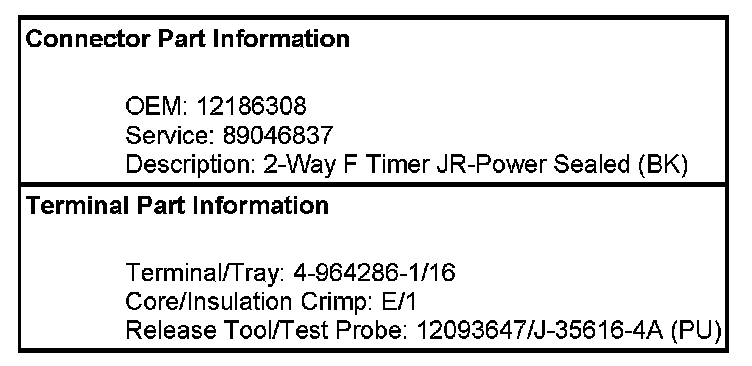

Clutch Pedal Position (CPP) Switch (M86)

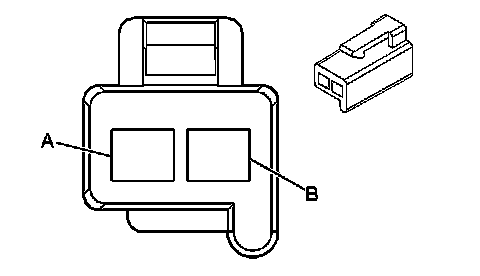

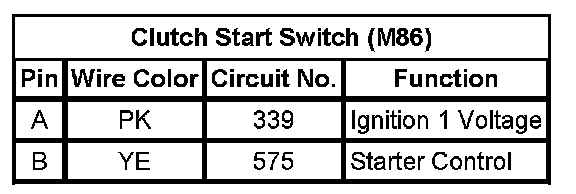

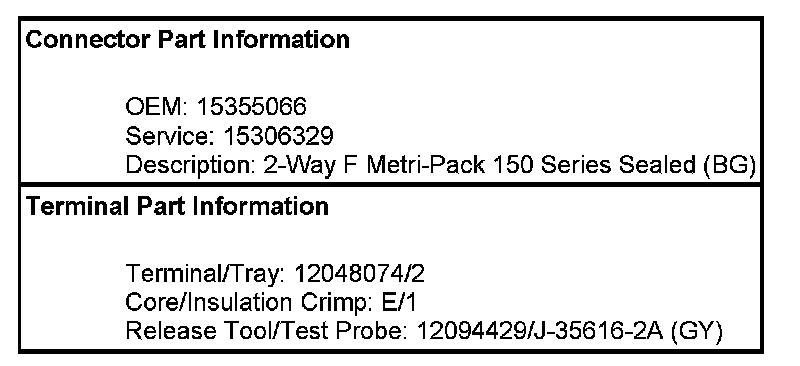

Clutch Start Switch (M86)

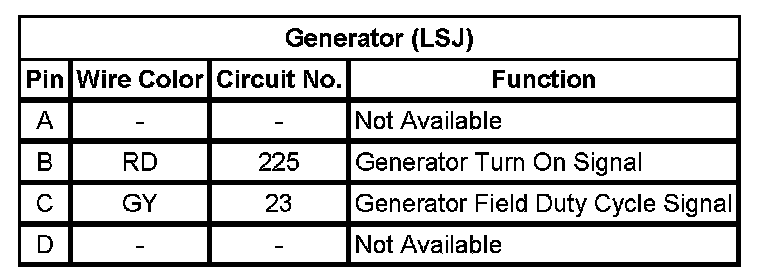

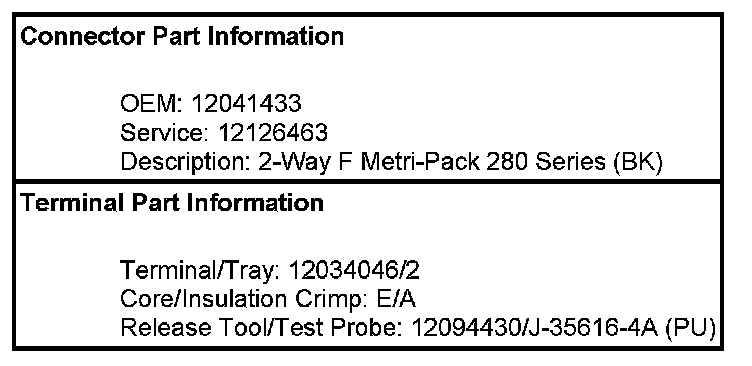

Generator (LSJ)

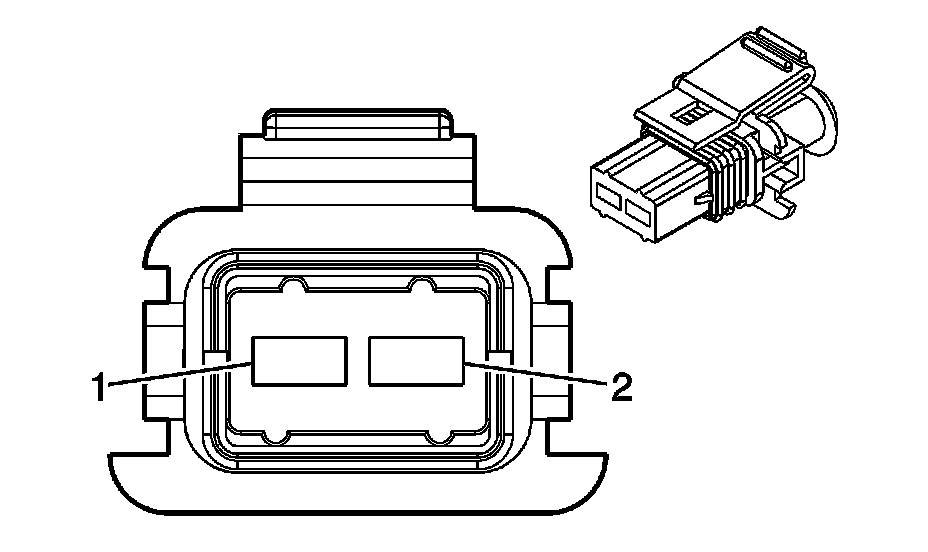

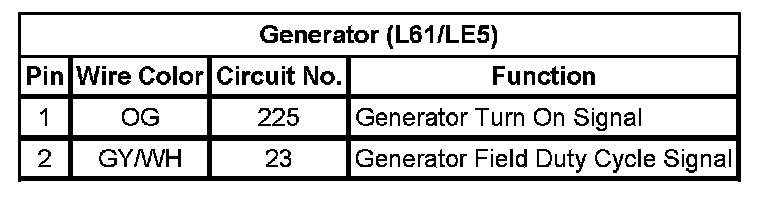

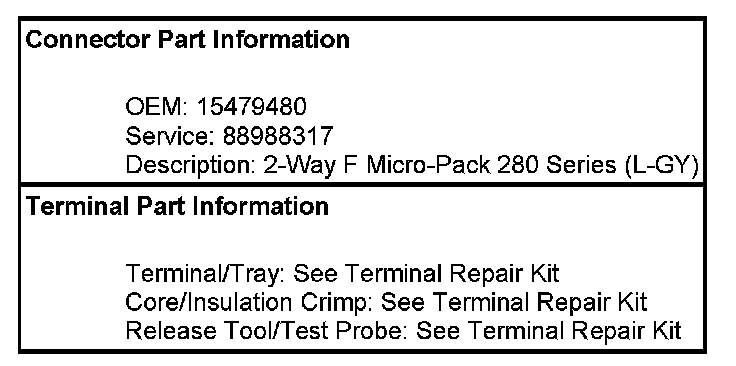

Generator (L61/LE5)
