Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> C700 - C799

C700 - C799

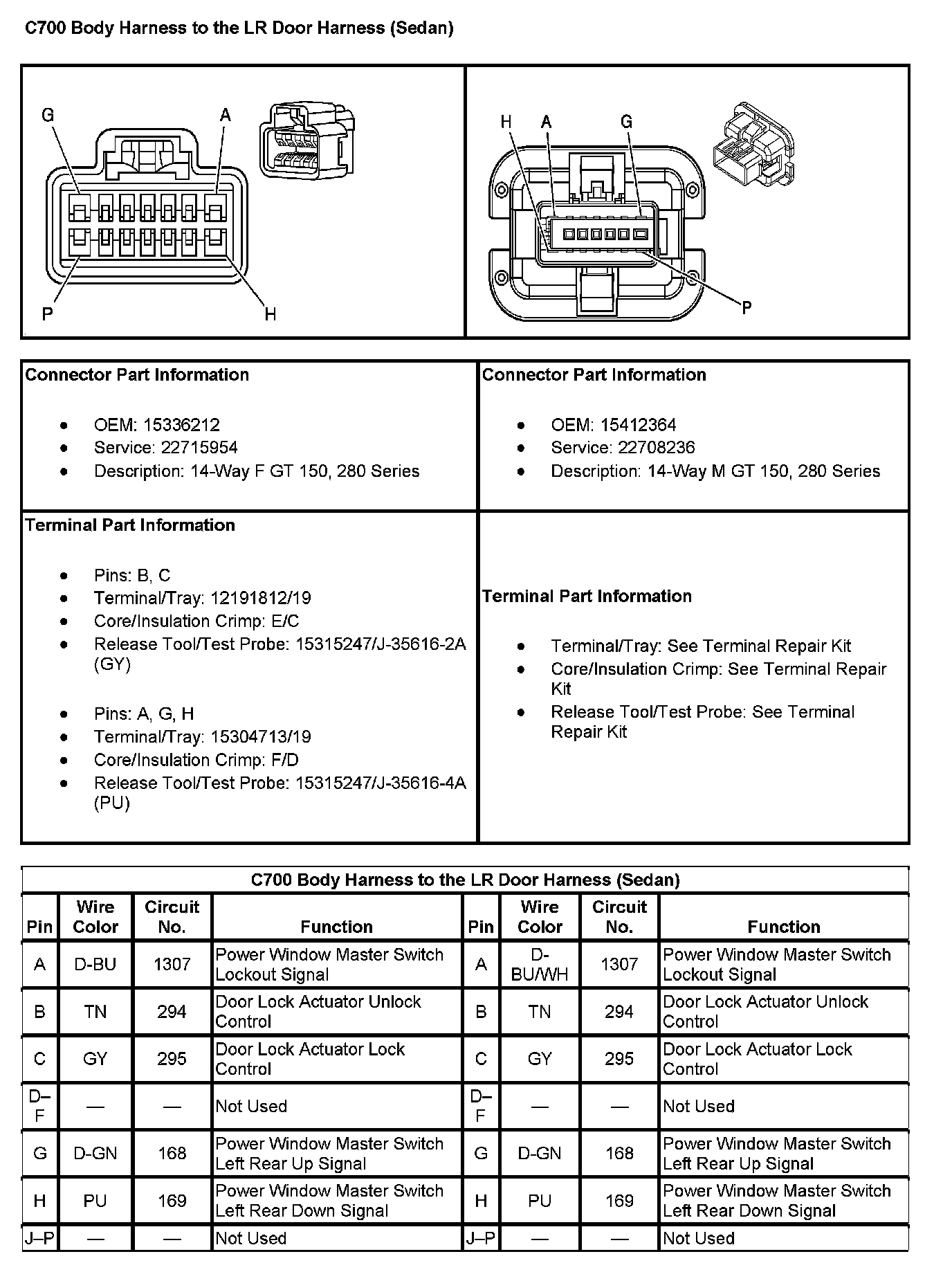

C700 Body Harness To The LR Door Harness (Sedan):
