Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> C300 - C399 >> C323

C323

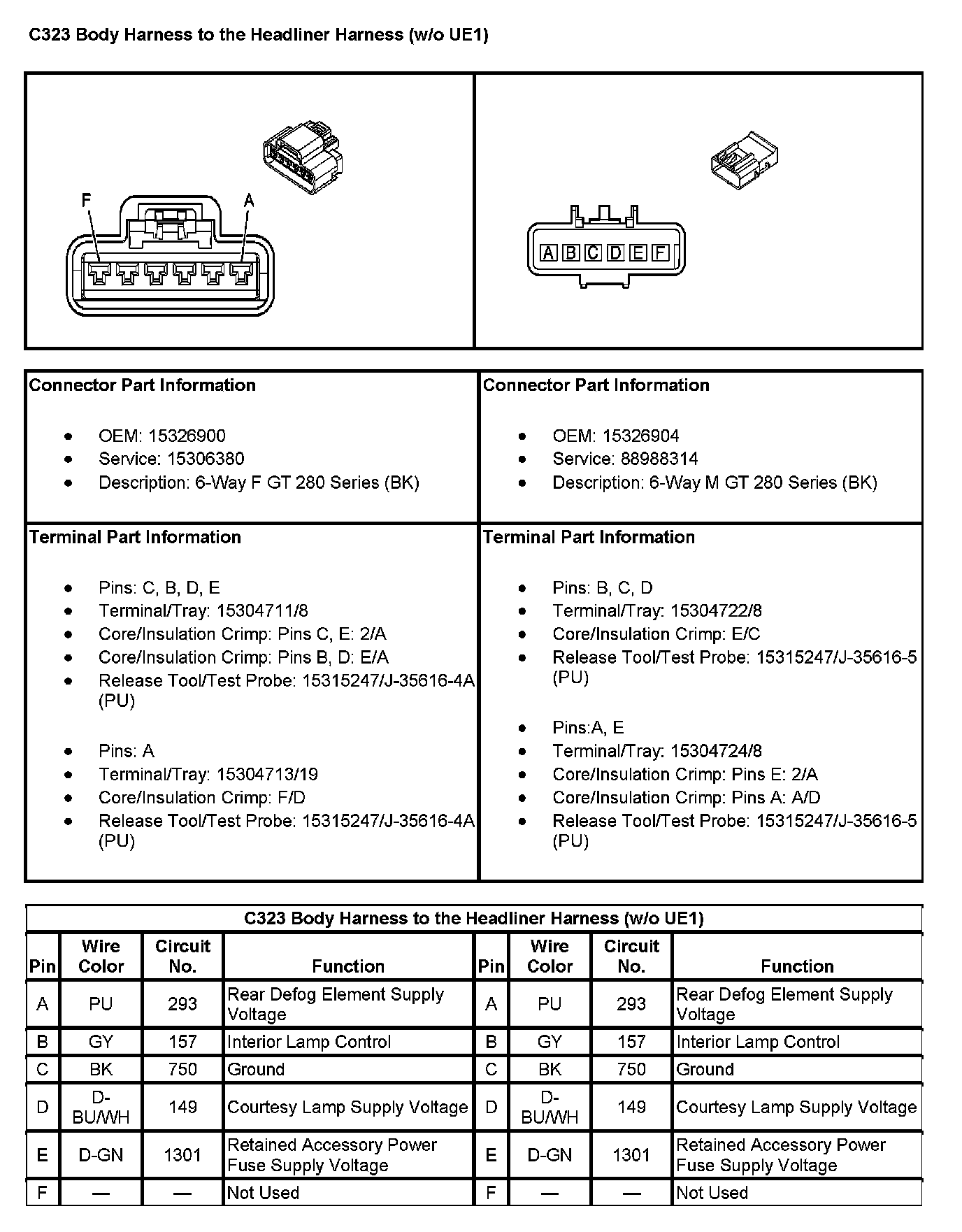

C323 Body Harness To The Headliner Harness (Without RPO Code UE1):
